Wago 745-831/999-950

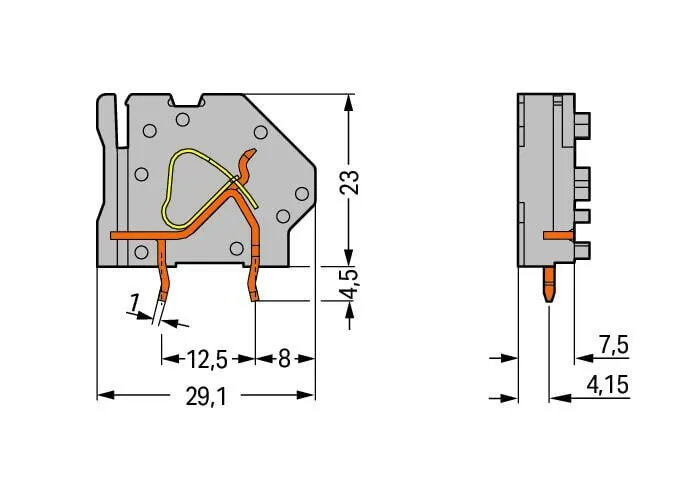

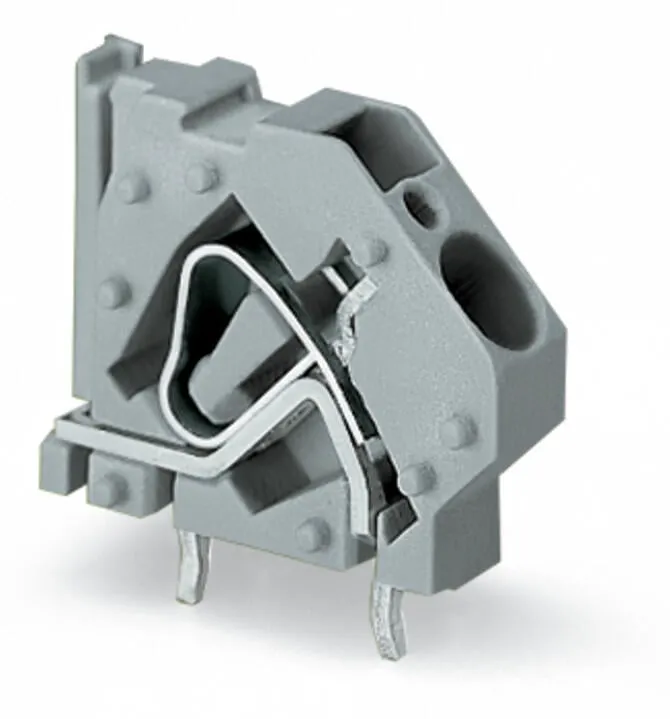

PCB terminal block, 745 Series, CAGE CLAMP®Easily, quickly and safely connect conductors with this PCB terminal block (item number 745-831/999-950). It offers the flexibility needed for different mounting types. Strip lengths must be between 11 and 12 mm  when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes CAGE CLAMP®. Our trusted universal connection known as CAGE CLAMP® is the industry standard when it comes to connection technology and electrical interconnections. The item’s dimensions are (9 x 27.5 x 29.1) mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm².Tin is used for coating the contact surfaces. This PCB terminal block is operated with an operating tool. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at a 45° angle..
