Wago 734-180/108-000

Male connector, 734 Series, with 3.5 mm pin spacingOur male connector (item number 734-180/108-000) ensures effortless electrical installations. The item’s dimensions are (79.5 x 12.3 x 10.3) mm (widt…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 734 Series, with 3.5 mm pin spacingOur male connector (item number 734-180/108-000) ensures effortless electrical installations. The item’s dimensions are (79.5 x 12.3 x 10.3) mm (width x height x depth).Tin is used for coating the contact surfaces. THT is used to assemble the pcb connector.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

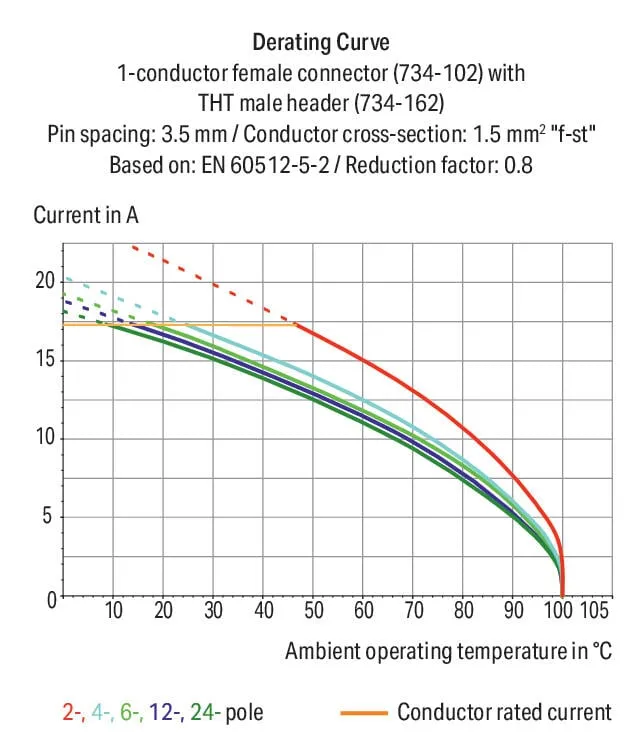

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)160 V
Rated impulse withstand voltage (III / 3)2.5 kV
Rated voltage (III/2)160 V
Rated impulse withstand voltage (III/2)2.5 kV
Nominal voltage (II/2)320 V
Rated impulse withstand voltage (II/2)2.5 kV
Rated current10 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage160 V / 160 V / 320 V
Rated impulse withstand voltage2.5 kV / 2.5 kV / 2.5 kV
Rated current10 A / 10 A / 10 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)10 A
Rated voltage CSA (Use Group D)300 V
Rated current CSA (Use Group D)10 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current10 A / 10 A

Connection data

Total number of potentials20
Number of connection types1
Number of levels1

Connection data - Connection 1

Pole number20

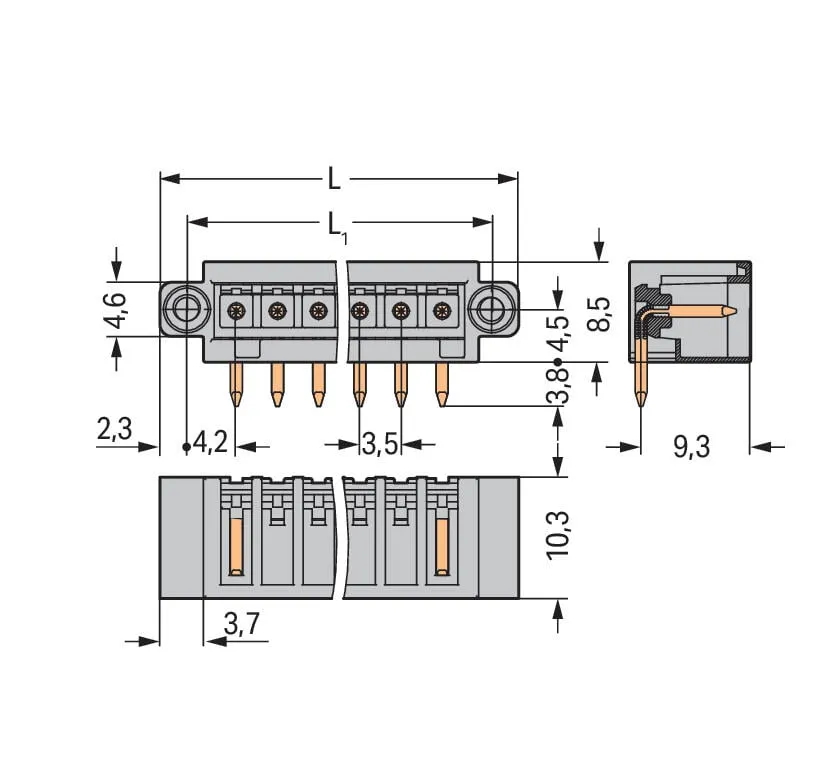

Physical data

Pin spacing3.5 mm / 0.138 inches
Width79.5 mm / 3.13 inches
Height12.3 mm / 0.484 inches
Height from the surface8.5 mm / 0.335 inches
Depth10.3 mm / 0.406 inches
Solder pin length3.8 mm
Solder pin dimensions1 x 1 mm
Drilled hole diameter with tolerance1.4 (+0.1) mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB0 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHT
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorlight gray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.081 MJ
Weight5.7 g

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)50 pcs
Packaging typebox
Country of originPL
GTIN4045454759162
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)a469fecf-152a-4b82-b1d0-2e93e8468757
SCIP notification number (Belgium)27360a9d-afdb-4144-9616-82d5ba39ce08
SCIP notification number (Bulgaria)b7487bc0-7c56-4b5b-a297-d251ce8bc8c4
SCIP notification number (Czech Republic)871f026a-27a2-4a0d-abf8-3cfc5ed613f0
SCIP notification number (Denmark)3ff7ea35-badb-47ed-897d-dd4cb5a67732
SCIP notification number (Finland)31e5b191-67cd-43d1-9ef7-5b2596548600
SCIP notification number (France)71d9e221-12cd-40bc-8a23-25923877bf03
SCIP notification number (Germany)eea26a99-a406-4840-82c6-5247b4ca9b15
SCIP notification number (Hungary)339c3f60-7b63-4d7c-9e2a-25e3bb8b1685
SCIP notification number (Italy)2e38d53e-7416-4d6b-85e4-1dd8ab28019e
SCIP notification number (Netherlands)32db9d19-f8b0-4316-8bc6-2ee4fda43bca
SCIP notification number (Poland)bed00476-8e1a-4f87-b873-26841c7dc219
SCIP notification number (Romania)5f3976b5-c9c7-4bee-959e-233b7fe34997
SCIP notification number (Sweden)c5f5e9b4-aa6d-4bee-8869-e1701d93f757
