Wago 730-123
Female connector, 730 Series, IDC connectionEffortless electrical installations are guaranteed with this female connector (item number 730-123). Featuring one conductor terminal along with an IDC conn…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

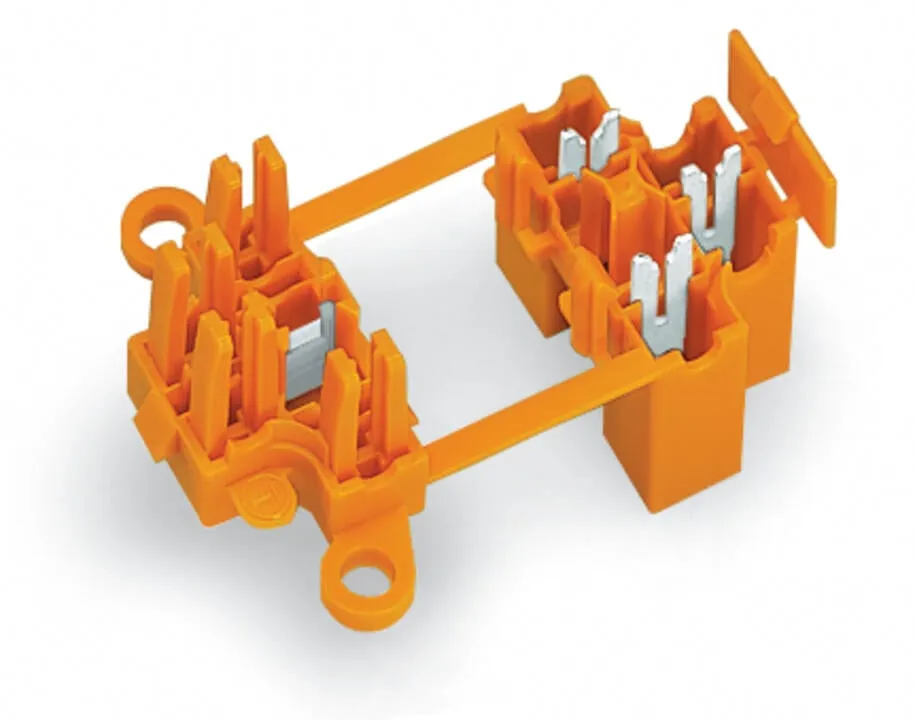

Female connector, 730 Series, IDC connectionEffortless electrical installations are guaranteed with this female connector (item number 730-123). Featuring one conductor terminal along with an IDC connection, this product is highly versatile. An Insulation Displacement Connection (IDC) is the perfect choice for supplying underfloor tanks, for example, using flat cables from 1.5 mm² to 16 mm² and the corresponding connection components. The item’s dimensions are (26.5 x 27 x 23) mm (width x height x depth). This female connector is suitable for conductor cross sections of 1.5 mm².The contact surface is coated with tin.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated voltage (III/2) | 630 V |
| Rated impulse withstand voltage (III/2) | 6 kV |
| Nominal voltage (II/2) | 1000 V |
| Rated impulse withstand voltage (II/2) | 6 kV |
| Rated current | 10 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V / 630 V / 1000 V |
| Rated impulse withstand voltage | 6 kV / 6 kV / 6 kV |
| Rated current | 10 A / 10 A / 10 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 10 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V |
| Rated current | 10 A |
Electrical data - Ratings per CSA
| Approvals per | CSA |
|---|---|
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group C) | 10 A |
| Approvals per | CSA / CSA / CSA |
| Use group | B / C / D |
| Rated voltage | 600 V |
| Rated current | 10 A |
Connection data
| Total number of potentials | 3 |
|---|---|
| Number of connection types | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | IDC connection |
|---|---|
| Fine-stranded conductor | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Pole number | 3 |
Physical data

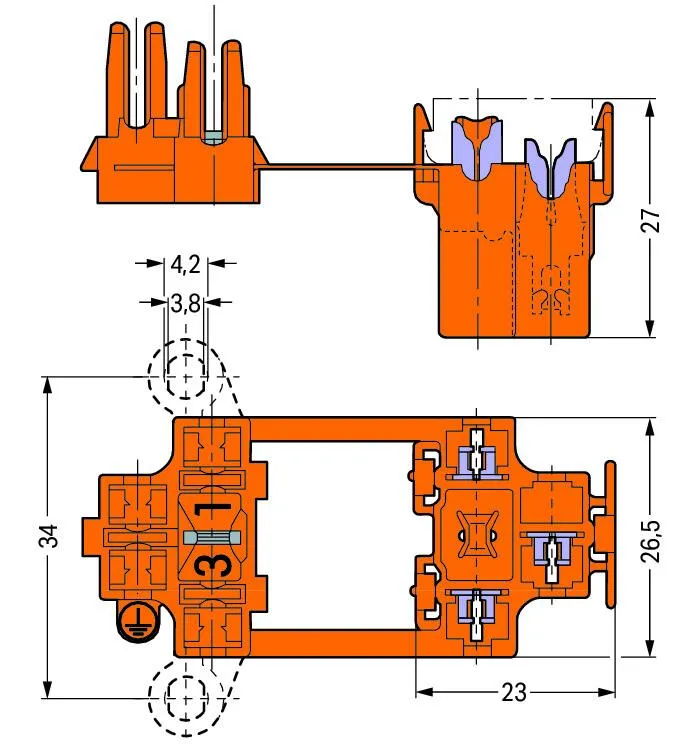

| Width | 26.5 mm / 1.043 inches |
|---|---|
| Height | 27 mm / 1.063 inches |
| Depth | 23 mm / 0.906 inches |
Mechanical data
| Variable coding | No |
|---|---|
| Mounting type | Mounting flange |
Plug-in connection
| Contact type (pluggable connector) | Female connector/socket |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | No |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | orange |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Brass |
| Contact plating | Tin |
| Fire load | 0.169 MJ |
| Weight | 7.1 g |
Environmental requirements
| Limit temperature range | -60 … +85 °C |
|---|
Commercial data
| PU (SPU) | 50 pcs |
|---|---|
| Packaging type | box |
| GTIN | 4044918600637 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC001284 |
| ETIM 10.0 | EC001284 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
