Wago 713-1427/117-000/997-407

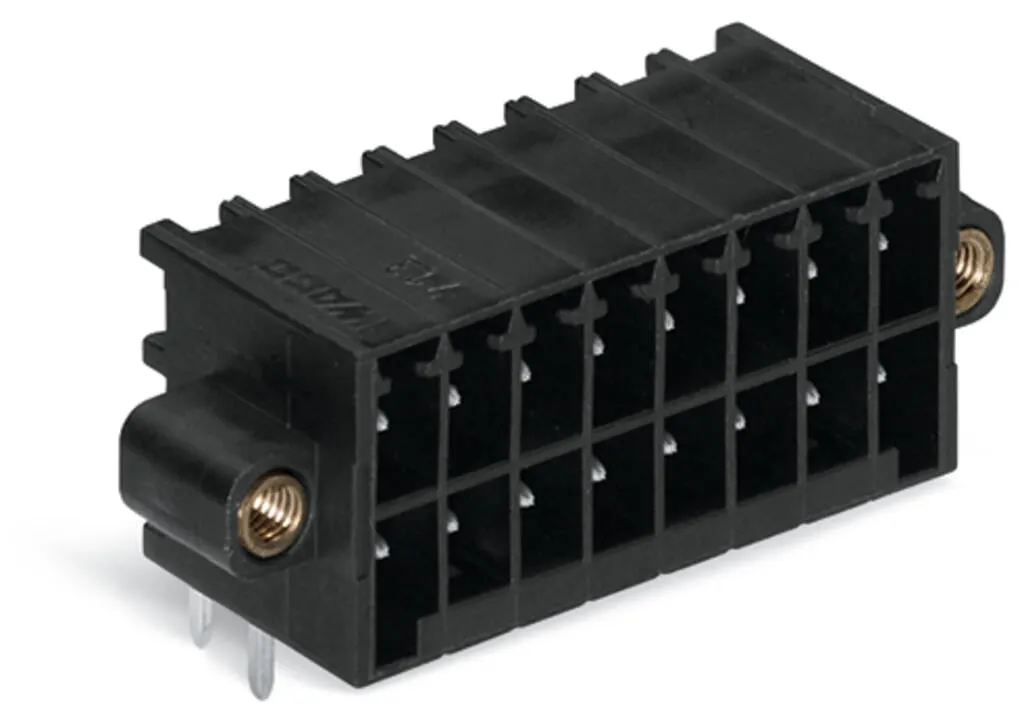

Male connector, 713 Series, with 3.5 mm pin spacingOur male connector (item number 713-1427/117-000/997-407) simplifies electrical installations. The dimensions are (34.6 x 15.7 x 13.5) mm (width x he…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 713 Series, with 3.5 mm pin spacingOur male connector (item number 713-1427/117-000/997-407) simplifies electrical installations. The dimensions are (34.6 x 15.7 x 13.5) mm (width x height x depth).The contact surface is coated with tin. The pcb connector is designed for THR soldering.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Other solder pin lengths, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)80 V
Rated impulse withstand voltage (III / 3)2.5 kV
Rated voltage (III/2)160 V
Rated impulse withstand voltage (III/2)2.5 kV
Nominal voltage (II/2)250 V
Rated impulse withstand voltage (II/2)2.5 kV
Rated current10 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage80 V / 160 V / 250 V
Rated impulse withstand voltage2.5 kV / 2.5 kV / 2.5 kV
Rated current10 A / 10 A / 10 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)150 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)50 V
Rated current UL (Use Group C)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage150 V / 50 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)150 V
Rated current CSA (Use Group B)12 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage150 V
Rated current12 A

Connection data

Total number of potentials14
Number of connection types1
Number of levels2

Connection data - Connection 1

Pole number14

Physical data

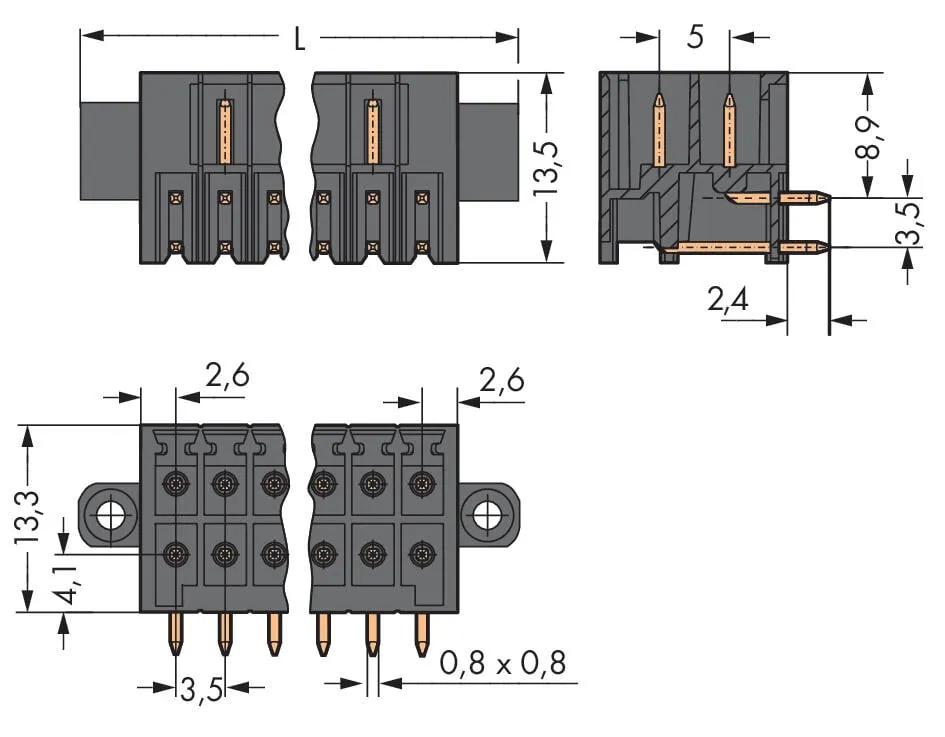

Pin spacing3.5 mm / 0.138 inches
Width34.6 mm / 1.362 inches
Height15.7 mm / 0.618 inches
Height from the surface13.3 mm / 0.524 inches
Depth13.5 mm / 0.531 inches
Solder pin length2.4 mm
Solder pin dimensions0.8 x 0.8 mm
Plated through-hole diameter (THR)1.3 (+0.1) mm

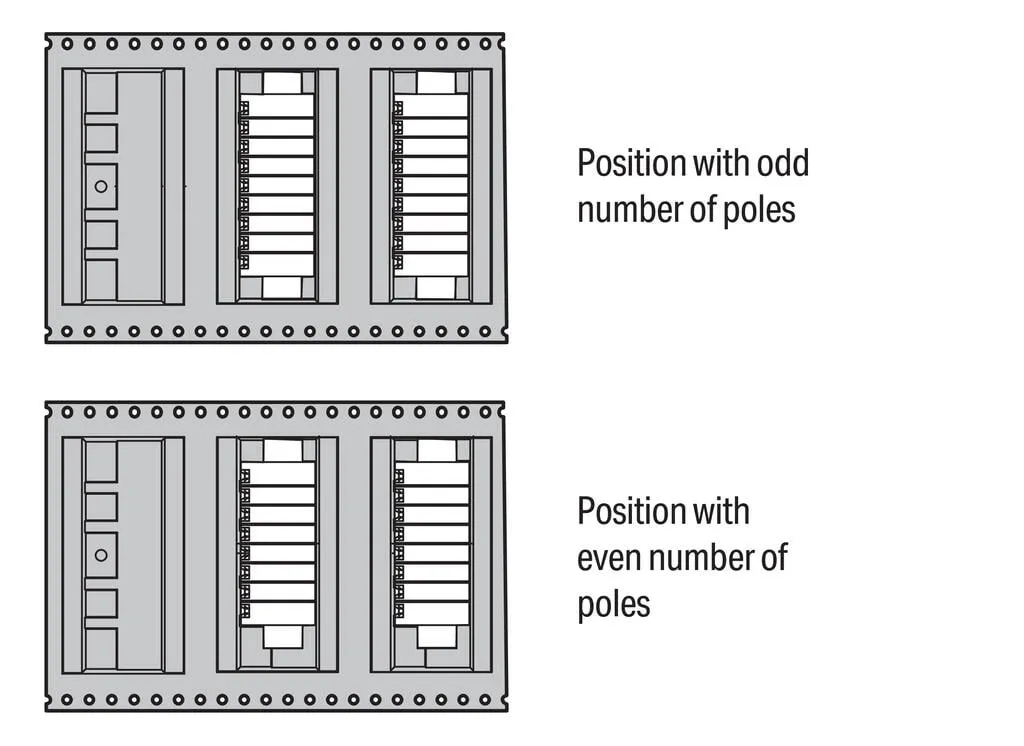

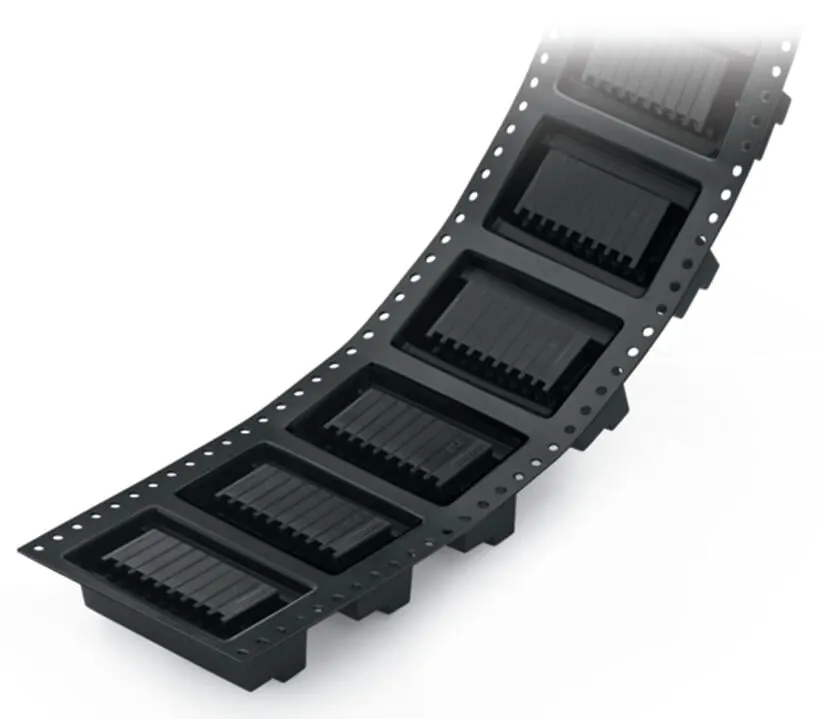

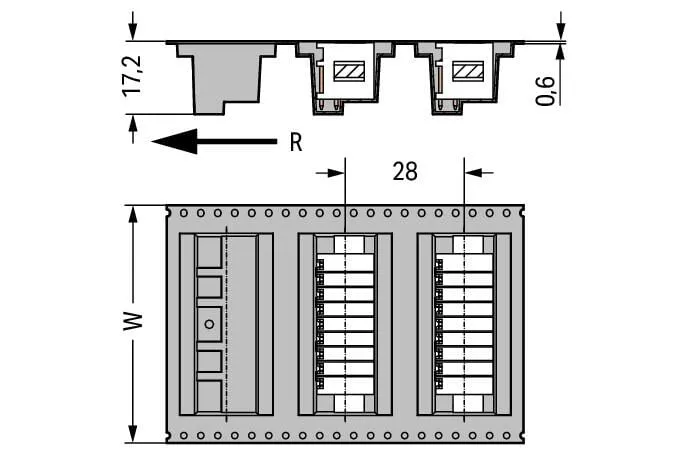

Reel diameter of tape-and-reel packaging330 mm
Tape width56 mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB0 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHR
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorblack
Material groupI
Insulation material (main housing)Polyphthalamide (PPA GF)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load10.32 MJ
Weight4.9 g
MSL per J-STD 020D1

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

PU (SPU)120 pcs
Packaging typebag
Country of originDE
GTIN4050821309826
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)a5d31142-dcb9-4baf-9034-e145d83a3baf
SCIP notification number (Belgium)1a802f78-443e-439a-9c47-a2d61e244775
SCIP notification number (Bulgaria)f43aeb2d-1a4b-4221-837f-91b1774dd3ec
SCIP notification number (Czech Republic)8b30a699-8045-4209-9686-299d7e904d0a
SCIP notification number (Denmark)2ba1cec6-ca9e-4406-a619-9728e3776648
SCIP notification number (Finland)e1a524ff-a25a-48c9-a643-08dff87ca310
SCIP notification number (France)a212e366-e039-4584-bfe9-994cc278c137
SCIP notification number (Germany)c26d711d-099c-4419-b47c-440c8cbd7e78
SCIP notification number (Hungary)a91250f6-de93-4127-b1d4-1b529d8c06d8
SCIP notification number (Italy)ce3b15e5-3288-4b4a-a8d3-6a1b0a9fb89b
SCIP notification number (Netherlands)818223c0-6ccd-481a-b693-8e6684c3d8e6
SCIP notification number (Poland)ac2b91d3-38aa-4a94-a423-5d665f9cd6ea
SCIP notification number (Romania)475ac875-db45-45cb-be21-537be82b19e7
SCIP notification number (Sweden)50ed19d4-ca0e-4e21-9041-bbee83efe6f0
