Wago 713-1426/107-000

Male connector, 713 Series, solder pin dimensions 0.8 x 0.8 mmThis male connector (item number 713-1426/107-000) provides fault-free electrical installations. The dimensions are (31.1 x 17.1 x 13.5) m…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 713 Series, solder pin dimensions 0.8 x 0.8 mmThis male connector (item number 713-1426/107-000) provides fault-free electrical installations. The dimensions are (31.1 x 17.1 x 13.5) mm (width x height x depth).The contact surface is coated with tin. THT is used to assemble the pcb connector.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Other solder pin lengths, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)80 V
Rated impulse withstand voltage (III / 3)2.5 kV
Rated voltage (III/2)160 V
Rated impulse withstand voltage (III/2)2.5 kV
Nominal voltage (II/2)250 V
Rated impulse withstand voltage (II/2)2.5 kV
Rated current10 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage80 V / 160 V / 250 V
Rated impulse withstand voltage2.5 kV / 2.5 kV / 2.5 kV
Rated current10 A / 10 A / 10 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)150 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)50 V
Rated current UL (Use Group C)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage150 V / 50 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)150 V
Rated current CSA (Use Group B)12 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage150 V
Rated current12 A

Connection data

Total number of potentials12
Number of connection types1
Number of levels2

Connection data - Connection 1

Pole number12

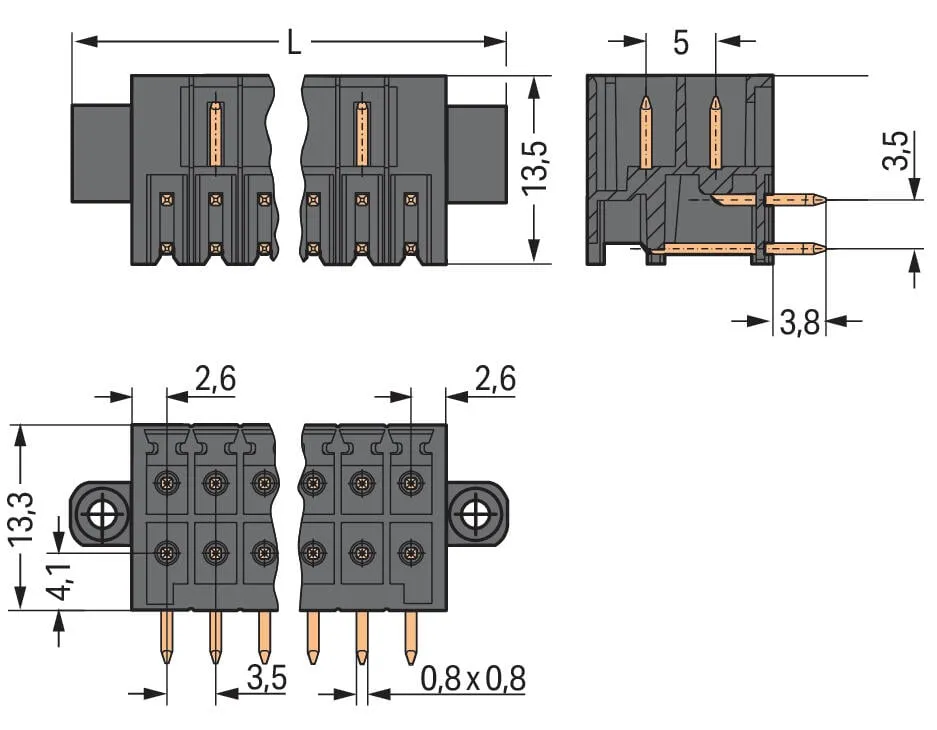

Physical data

Pin spacing3.5 mm / 0.138 inches
Width31.1 mm / 1.224 inches
Height17.1 mm / 0.673 inches
Height from the surface13.3 mm / 0.524 inches
Depth13.5 mm / 0.531 inches
Solder pin length3.8 mm
Solder pin dimensions0.8 x 0.8 mm
Drilled hole diameter with tolerance1.2 (+0.1) mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB0 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHT
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorblack
Material groupI
Insulation material (main housing)Polyphthalamide (PPA GF)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.076 MJ
Weight4 g

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)25 pcs
Packaging typebox
Country of originPL
GTIN4045454809133
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)f258f417-9169-4e60-b2d2-b2f3ecdfcf2a
SCIP notification number (Belgium)8fa5e7d6-68a5-4677-87b6-edbca0002eb8
SCIP notification number (Bulgaria)49b4700b-6a4a-4ef6-b235-af95299cddb3
SCIP notification number (Czech Republic)d8510442-2ac9-4b33-9373-74eb223e5d63
SCIP notification number (Denmark)ff9859f7-fd2d-49ca-ac8a-4bf8d192a383
SCIP notification number (Finland)06746f57-9cfa-4b60-8e64-bf4f289fc0ac
SCIP notification number (France)7758a8b8-7813-4e76-8f5d-04b617f42de2
SCIP notification number (Germany)184e0f48-3c73-4c3d-973d-a498f1160372
SCIP notification number (Hungary)123ba1c5-325e-4c4b-8da3-b5a8119957bf
SCIP notification number (Italy)4c8051e4-b628-4cec-acc9-2390b1f7bc20
SCIP notification number (Netherlands)c314f26d-086e-487c-af24-e7427e119781
SCIP notification number (Poland)77c974cd-d00e-48f8-ae16-e0fc3cee7d6c
SCIP notification number (Romania)e4687235-3af1-4a67-85a1-f1c940cfb059
SCIP notification number (Sweden)28446edd-5929-4d6a-a4fb-cc048f06d7a8
