Description

Male connector, 713 Series, with 3.5 mm pin spacingThis male connector (item number 713-1418/117-000) simplifies electrical installations. The dimensions are (73.1 x 15.9 x 13.3) mm (width x height x depth).Tin is used for coating the contact surfaces. The pcb connector is designed for THR soldering.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Other solder pin lengths, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)80 V
Rated impulse withstand voltage (III / 3)2.5 kV
Rated voltage (III/2)160 V
Rated impulse withstand voltage (III/2)2.5 kV
Nominal voltage (II/2)250 V
Rated impulse withstand voltage (II/2)2.5 kV
Rated current10 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage80 V / 160 V / 250 V
Rated impulse withstand voltage2.5 kV / 2.5 kV / 2.5 kV
Rated current10 A / 10 A / 10 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)150 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)50 V
Rated current UL (Use Group C)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage150 V / 50 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)150 V
Rated current CSA (Use Group B)12 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage150 V
Rated current12 A

Connection data

Total number of potentials36
Number of connection types1
Number of levels2

Connection data - Connection 1

Pole number36

Physical data

Pin spacing3.5 mm / 0.138 inches
Width73.1 mm / 2.878 inches
Height15.9 mm / 0.626 inches
Height from the surface13.5 mm / 0.531 inches

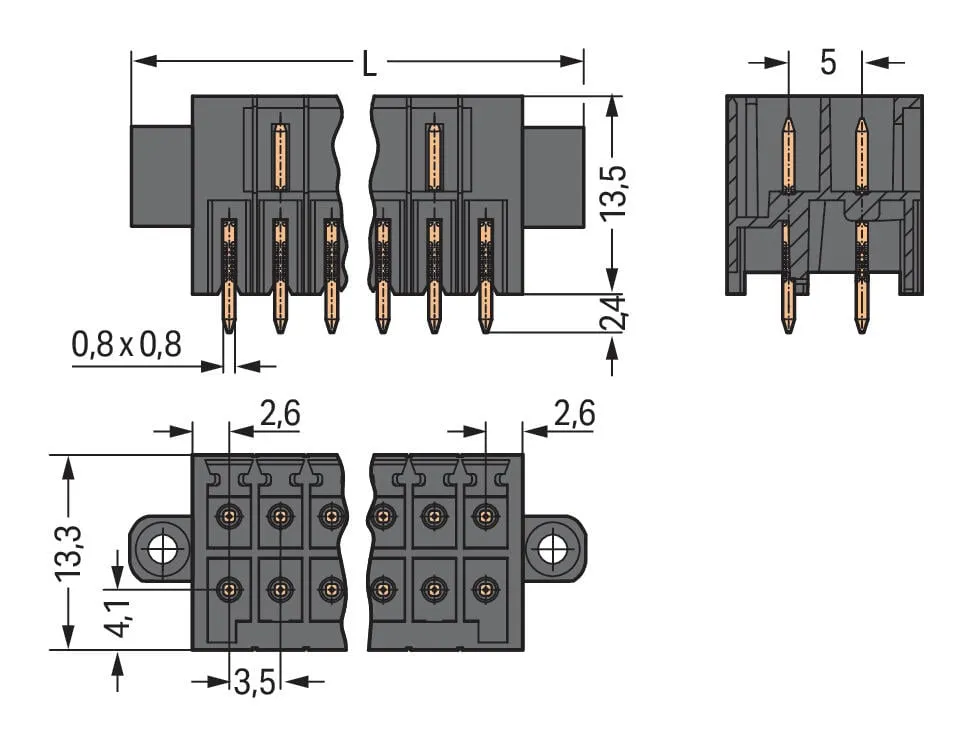

Depth13.3 mm / 0.524 inches
Solder pin length2.4 mm
Solder pin dimensions0.8 x 0.8 mm

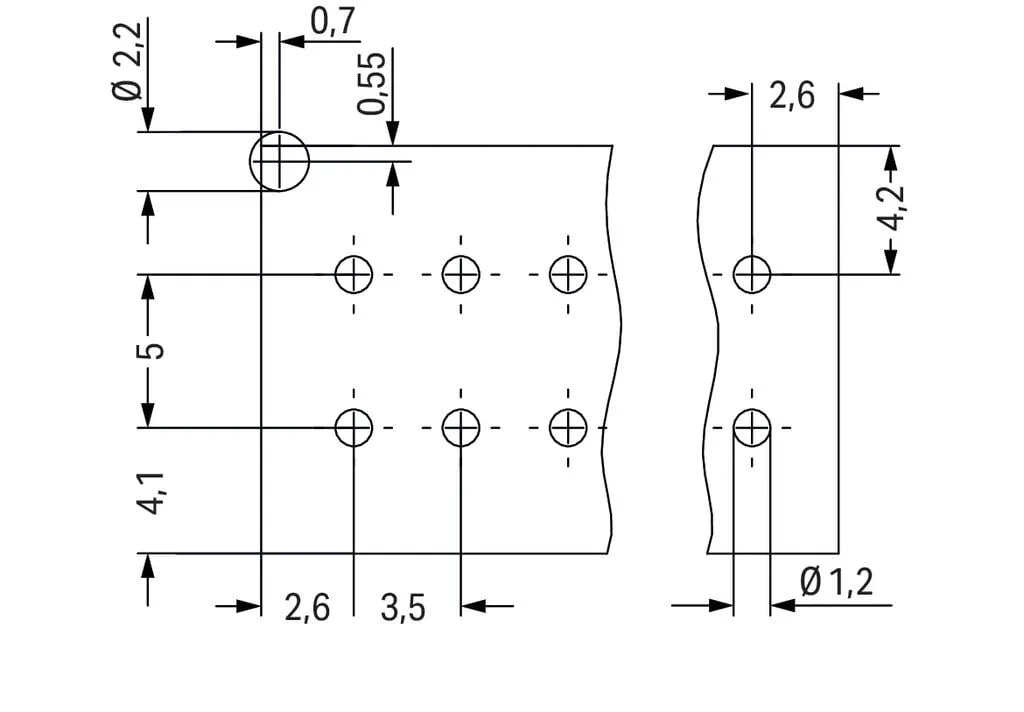

Plated through-hole diameter (THR)1.3 (+0.1) mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB90 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHR
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorblack
Material groupI
Insulation material (main housing)Polyphthalamide (PPA GF)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.193 MJ
Weight9.5 g
MSL per J-STD 020D1

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)10 pcs
Packaging typebox
Country of originPL
GTIN4050821156550
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)e4d11942-f144-4d59-a964-b5a210bc162c
SCIP notification number (Belgium)f9d467a9-938e-4d53-9b2b-44b98631d5cd
SCIP notification number (Bulgaria)9734bedc-6ff3-45de-b631-9e4390df28cc
SCIP notification number (Czech Republic)610b5a82-6982-468e-a825-9309ac57ab8b
SCIP notification number (Denmark)8ae04b7f-ad01-45a0-b19f-6c118877a958
SCIP notification number (Finland)8d966457-b63a-40da-8e00-389dcfe7cf6d
SCIP notification number (France)d51ff5b2-b820-4f6e-a0cb-fd9272e2332a
SCIP notification number (Germany)824830bd-e60a-402d-baf4-8d5b1b8f13b0
SCIP notification number (Hungary)0eb346b0-b96c-4d72-8cf6-ba3855fe5b3c
SCIP notification number (Italy)6f51fec7-18da-49b4-8beb-43938fe41a9d
SCIP notification number (Netherlands)89d69e4e-9f99-4b4f-8e49-36cefe352268
SCIP notification number (Poland)b38fa15c-3f8b-4c88-a38d-cc88dac29e97
SCIP notification number (Romania)a789e020-8b0c-4e97-88f1-fdc443f19995
SCIP notification number (Sweden)6f9e9472-de3a-4ec7-8229-1d4be719c452
