Wago 713-1416/117-000

Male connector, 713 Series, with 3.5 mm pin spacingEnjoy easy electrical installations with this male connector (item number 713-1416/117-000). The dimensions are (66.1 x 15.9 x 13.3) mm (width x heig…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 713 Series, with 3.5 mm pin spacingEnjoy easy electrical installations with this male connector (item number 713-1416/117-000). The dimensions are (66.1 x 15.9 x 13.3) mm (width x height x depth).The contact surface is coated with tin. The pcb connector is designed for THR soldering.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Other solder pin lengths, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)80 V
Rated impulse withstand voltage (III / 3)2.5 kV
Rated voltage (III/2)160 V
Rated impulse withstand voltage (III/2)2.5 kV
Nominal voltage (II/2)250 V
Rated impulse withstand voltage (II/2)2.5 kV
Rated current10 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage80 V / 160 V / 250 V
Rated impulse withstand voltage2.5 kV / 2.5 kV / 2.5 kV
Rated current10 A / 10 A / 10 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)150 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)50 V
Rated current UL (Use Group C)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage150 V / 50 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)150 V
Rated current CSA (Use Group B)12 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage150 V
Rated current12 A

Connection data

Total number of potentials32
Number of connection types1
Number of levels2

Connection data - Connection 1

Pole number32

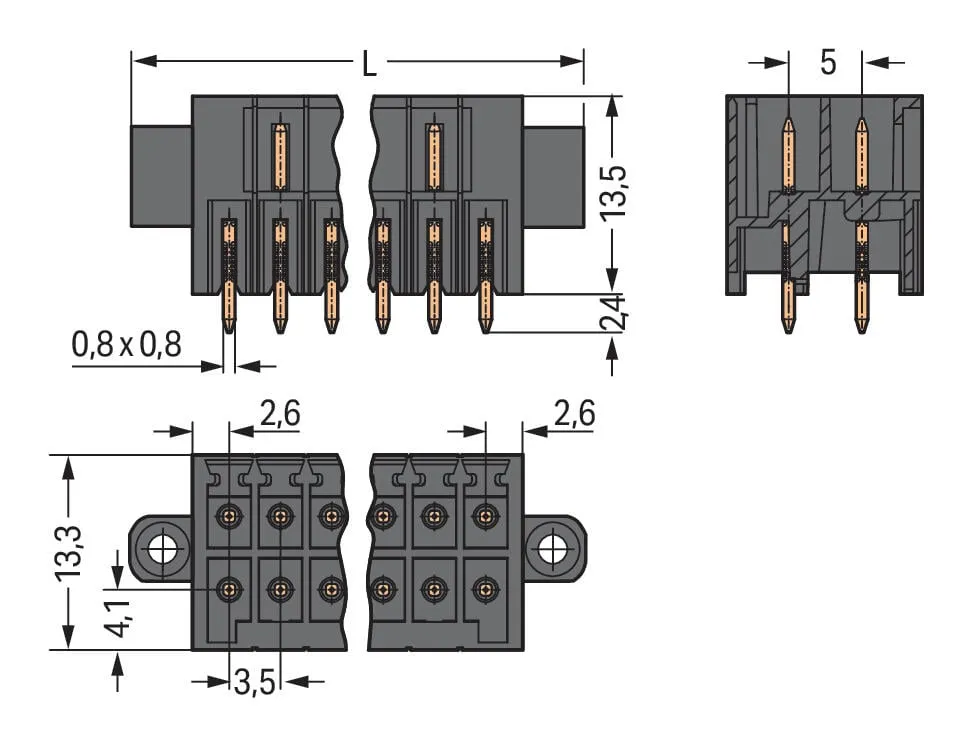

Physical data

Pin spacing3.5 mm / 0.138 inches
Width66.1 mm / 2.602 inches
Height15.9 mm / 0.626 inches
Height from the surface13.5 mm / 0.531 inches
Depth13.3 mm / 0.524 inches
Solder pin length2.4 mm
Solder pin dimensions0.8 x 0.8 mm

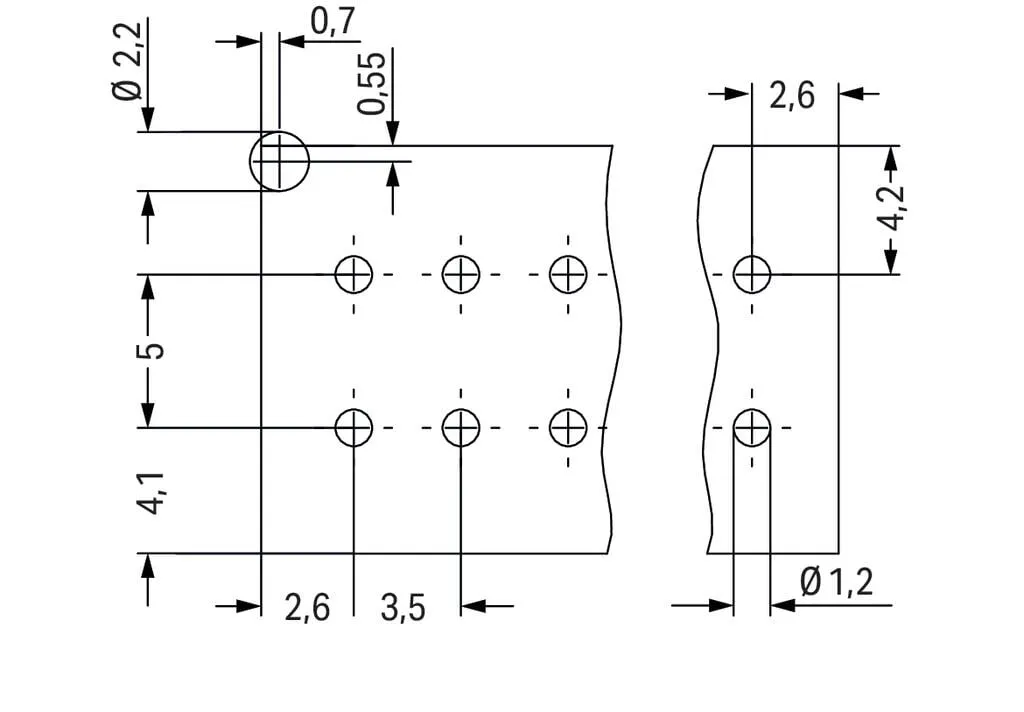

Plated through-hole diameter (THR)1.3 (+0.1) mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB90 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHR
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorblack
Material groupI
Insulation material (main housing)Polyphthalamide (PPA GF)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.173 MJ
Weight8.6 g
MSL per J-STD 020D1

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)10 pcs
Packaging typebox
Country of originPL
GTIN4050821156536
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)f927d326-7946-467f-b3ab-9b96534401d9
SCIP notification number (Belgium)df3154e2-d6ce-44a4-93ce-a5e2df139b36
SCIP notification number (Bulgaria)9728a8ac-b42f-4e10-888b-8a4e1b89a717
SCIP notification number (Czech Republic)68fb3393-1c23-4570-bd98-a02061d4cd1e
SCIP notification number (Denmark)f7470bf3-ebde-4b3f-86fc-00634a3547d9
SCIP notification number (Finland)daa1edc1-bb73-4716-921a-f8a5e99ab739
SCIP notification number (France)d335e640-9397-410d-9c3d-552f0d032d07
SCIP notification number (Germany)89810692-a0a4-4494-909e-6a937f9e1dd4
SCIP notification number (Hungary)c5867cca-62a6-43dd-8ba5-d8000aa1838b
SCIP notification number (Italy)5fd51a7a-fa60-4887-8241-680e59ce81df
SCIP notification number (Netherlands)04664599-75c9-4490-bdb8-54ac764ac39a
SCIP notification number (Poland)f32b467a-b9d5-483a-94de-c8c34b9c324c
SCIP notification number (Romania)019ca7c0-5612-4ef5-9bc3-baffe9208a43
SCIP notification number (Sweden)170e7ec2-379d-4840-97de-c2b60f54b928
