Wago 713-1416/117-000/997-409
Male connector, 713 Series, blackThis male connector (item number 713-1416/117-000/997-409) provides fault-free electrical installations. Dimensions: (66.1 x 15.9 x 13.3) mm (width x height x depth).T…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

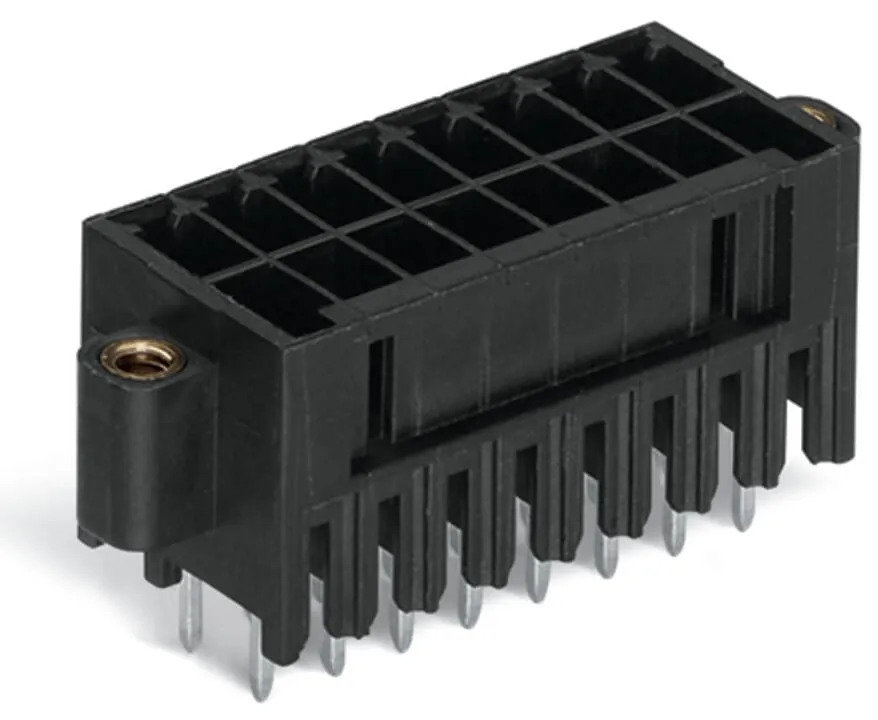

Male connector, 713 Series, blackThis male connector (item number 713-1416/117-000/997-409) provides fault-free electrical installations. Dimensions: (66.1 x 15.9 x 13.3) mm (width x height x depth).Tin is used for coating the contact surfaces. THR is used to solder the pcb connector.
Specification
Notes
| Safety Information | The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. |
|---|---|
| Variants: | Other pole numbers, Other solder pin lengths, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/. |
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 80 V |
| Rated impulse withstand voltage (III / 3) | 2.5 kV |
| Rated voltage (III/2) | 160 V |
| Rated impulse withstand voltage (III/2) | 2.5 kV |
| Nominal voltage (II/2) | 250 V |
| Rated impulse withstand voltage (II/2) | 2.5 kV |
| Rated current | 10 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 80 V / 160 V / 250 V |
| Rated impulse withstand voltage | 2.5 kV / 2.5 kV / 2.5 kV |
| Rated current | 10 A / 10 A / 10 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 150 V |
| Rated current UL (Use Group B) | 10 A |
| Rated voltage UL (Use Group C) | 50 V |
| Rated current UL (Use Group C) | 10 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 150 V / 50 V |
| Rated current | 10 A / 10 A |
Electrical data - Ratings per CSA
| Approvals per | CSA |
|---|---|
| Rated voltage CSA (Use Group B) | 150 V |
| Rated current CSA (Use Group B) | 12 A |
| Approvals per | CSA / CSA / CSA |
| Use group | B / C / D |
| Rated voltage | 150 V |
| Rated current | 12 A |
Connection data
| Total number of potentials | 32 |
|---|---|
| Number of connection types | 1 |
| Number of levels | 2 |
Connection data - Connection 1
| Pole number | 32 |
|---|

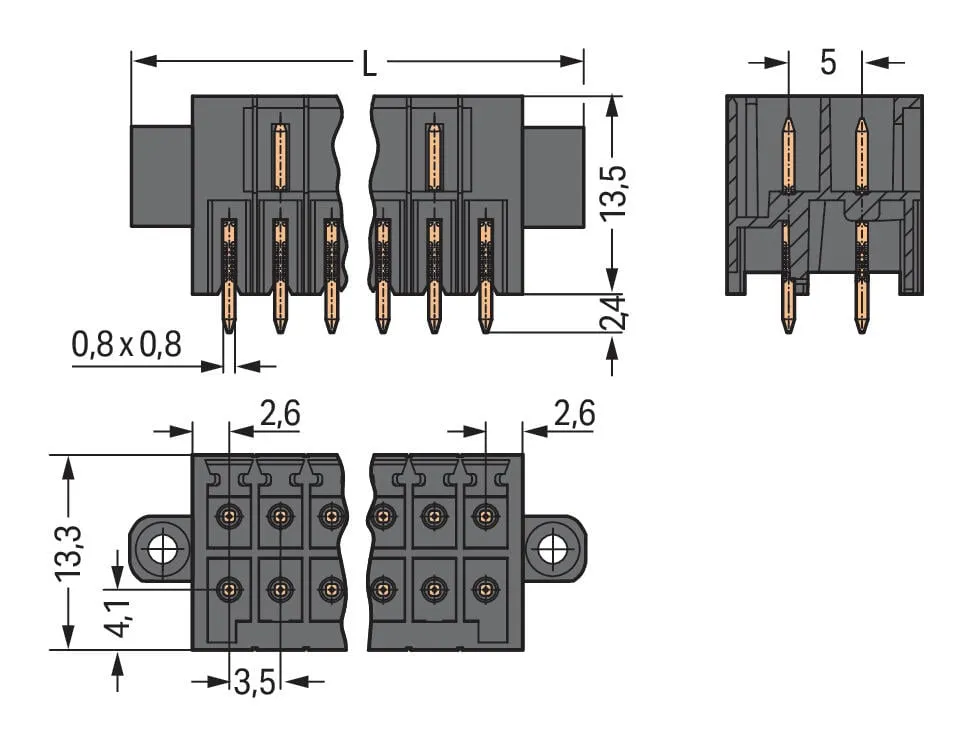

Physical data
| Pin spacing | 3.5 mm / 0.138 inches |
|---|---|
| Width | 66.1 mm / 2.602 inches |
| Height | 15.9 mm / 0.626 inches |
| Height from the surface | 13.5 mm / 0.531 inches |
| Depth | 13.3 mm / 0.524 inches |
| Solder pin length | 2.4 mm |
| Solder pin dimensions | 0.8 x 0.8 mm |
| Plated through-hole diameter (THR) | 1.3 (+0.1) mm |

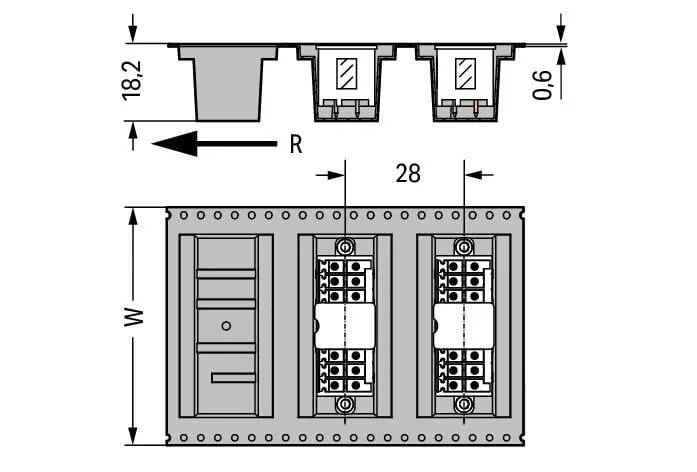

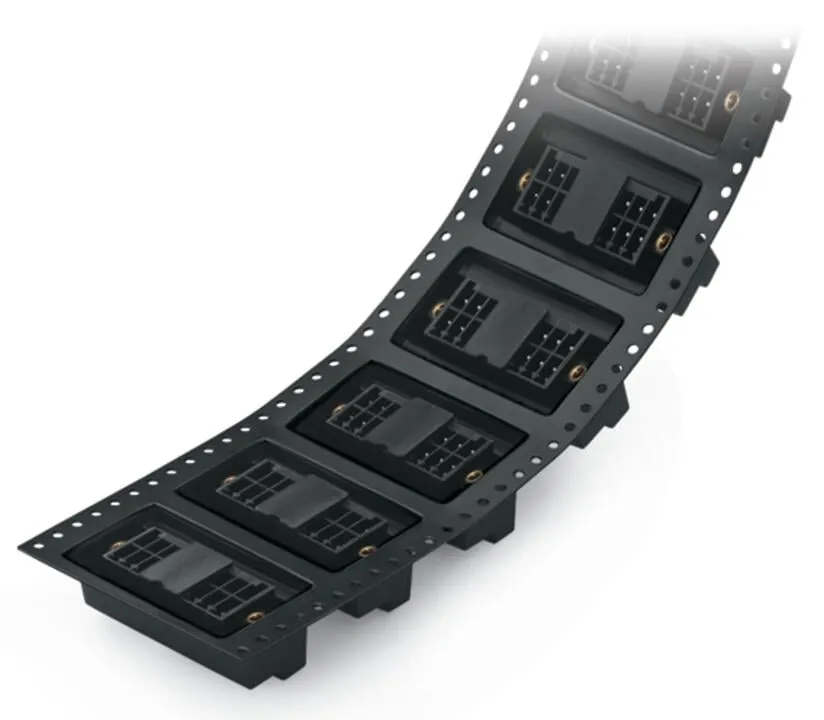

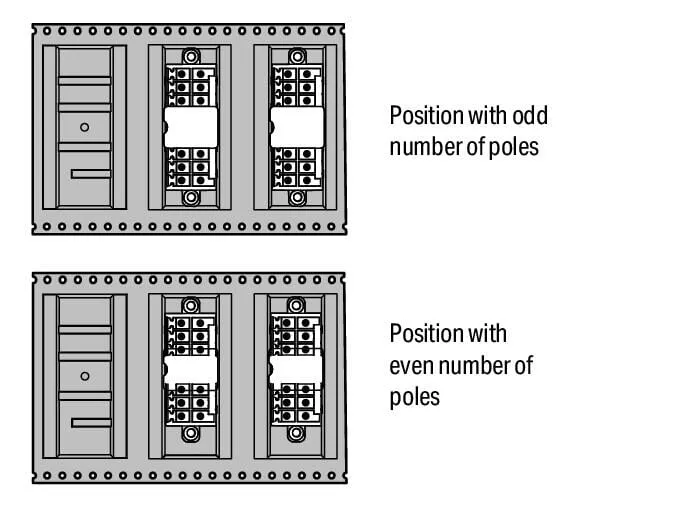

| Reel diameter of tape-and-reel packaging | 330 mm |
| Tape width | 88 mm |
Mechanical data
| Variable coding | Yes |
|---|---|
| Anti-rotation protection | Yes |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for PCB |
| Mismating protection | Yes |
| Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 90 ° |
| Locking of plug-in connection | Threaded flange |
PCB contact
| PCB contact | THR |
|---|---|
| Solder pin arrangement | over the entire male connector (in-line) |
| Number of solder pins per potential | 1 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Weight | 8.6 g |
| MSL per J-STD 020D | 1 |
Environmental requirements
| Limit temperature range | -60 … +100 °C |
|---|---|
| Processing temperature | -35 … +60 °C |
Commercial data
| PU (SPU) | 120 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4050821308942 |
| Customs tariff number | 85366930000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-44-04-02 |
| eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 |
| ETIM 10.0 | EC002637 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | e555d969-e88e-405c-8395-834c71d02853 |
| SCIP notification number (Belgium) | 8b1ee73d-25da-4626-b0ac-64cf0d39277e |
| SCIP notification number (Bulgaria) | e54ac71c-138e-4cf0-a172-a13cea4a9bf9 |
| SCIP notification number (Czech Republic) | 6edd422c-84ee-4330-8c88-219a8452c5b9 |
| SCIP notification number (Denmark) | 4740f0ad-8a56-441f-8257-9d3c3a8c1643 |
| SCIP notification number (Finland) | eca3909f-fb26-4f45-8221-9725e814d2f0 |
| SCIP notification number (France) | 0c4cde49-6231-40c2-9676-7aba56182e22 |
| SCIP notification number (Germany) | ab80d43e-b785-4892-b183-deae4ff8a00f |
| SCIP notification number (Hungary) | 7963da9e-d678-47fe-9e17-0ce35aba0d4a |
| SCIP notification number (Italy) | 60521b37-d90e-48aa-9b66-70740a5cb3da |
| SCIP notification number (Netherlands) | ad15f55a-aced-4ebb-84b9-66c426c9f39f |
| SCIP notification number (Poland) | 1e84064a-678f-4909-9ae8-690f2e8d5a91 |
| SCIP notification number (Romania) | 606d642b-6ee5-4282-a2e8-345040723c4d |
| SCIP notification number (Sweden) | 031a55cf-444f-40d1-babd-ed675012d285 |
