Wago 713-1412/117-000/997-408

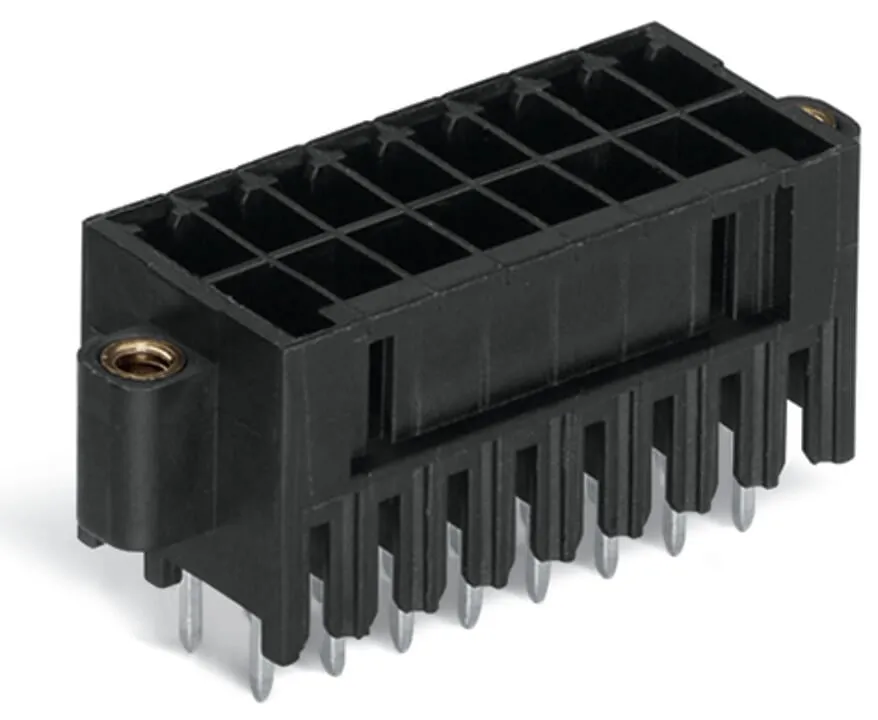

Male connector, 713 Series, with 3.5 mm pin spacingEffortless electrical installations are guaranteed with this male connector (item number 713-1412/117-000/997-408). Dimensions: (52.1 x 15.9 x 13.3) …

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 713 Series, with 3.5 mm pin spacingEffortless electrical installations are guaranteed with this male connector (item number 713-1412/117-000/997-408). Dimensions: (52.1 x 15.9 x 13.3) mm (width x height x depth).The contact surface is coated with tin. THR is used to assemble the pcb connector.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Other solder pin lengths, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)80 V
Rated impulse withstand voltage (III / 3)2.5 kV
Rated voltage (III/2)160 V
Rated impulse withstand voltage (III/2)2.5 kV
Nominal voltage (II/2)250 V
Rated impulse withstand voltage (II/2)2.5 kV
Rated current10 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage80 V / 160 V / 250 V
Rated impulse withstand voltage2.5 kV / 2.5 kV / 2.5 kV
Rated current10 A / 10 A / 10 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)150 V
Rated current UL (Use Group B)10 A
Rated voltage UL (Use Group C)50 V
Rated current UL (Use Group C)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage150 V / 50 V
Rated current10 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)150 V
Rated current CSA (Use Group B)12 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage150 V
Rated current12 A

Connection data

Total number of potentials24
Number of connection types1
Number of levels2

Connection data - Connection 1

Pole number24

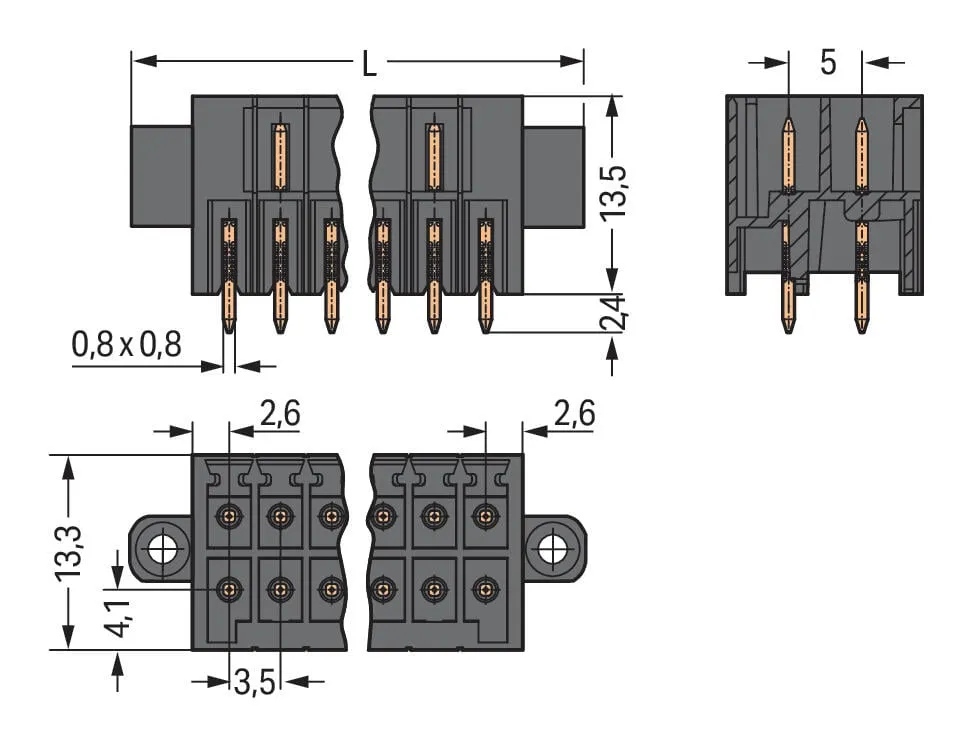

Physical data

Pin spacing3.5 mm / 0.138 inches
Width52.1 mm / 2.051 inches
Height15.9 mm / 0.626 inches
Height from the surface13.5 mm / 0.531 inches
Depth13.3 mm / 0.524 inches
Solder pin length2.4 mm
Solder pin dimensions0.8 x 0.8 mm
Plated through-hole diameter (THR)1.3 (+0.1) mm

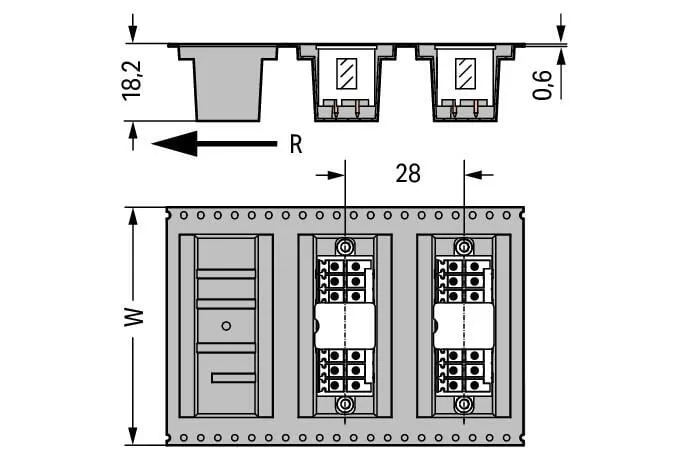

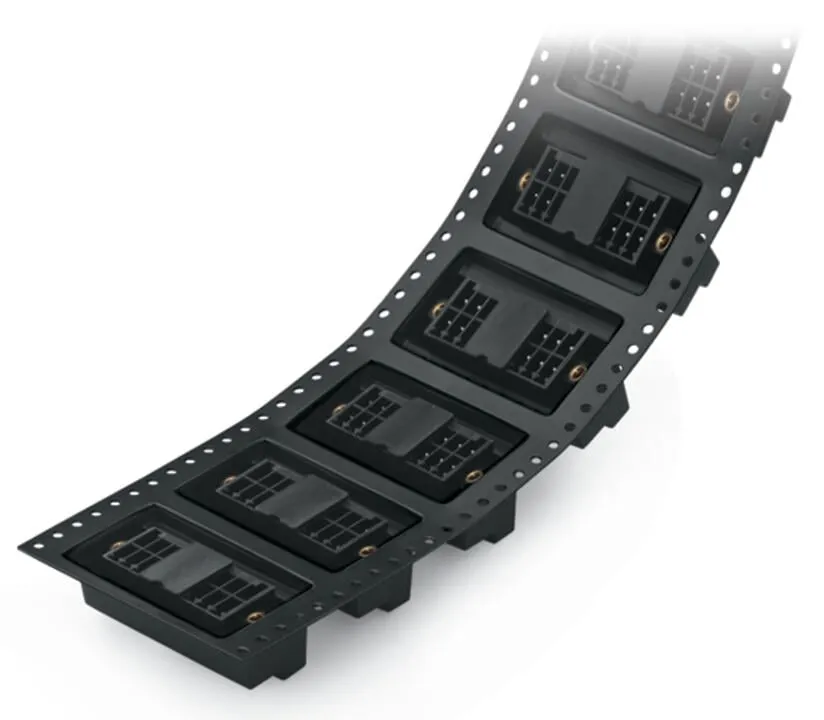

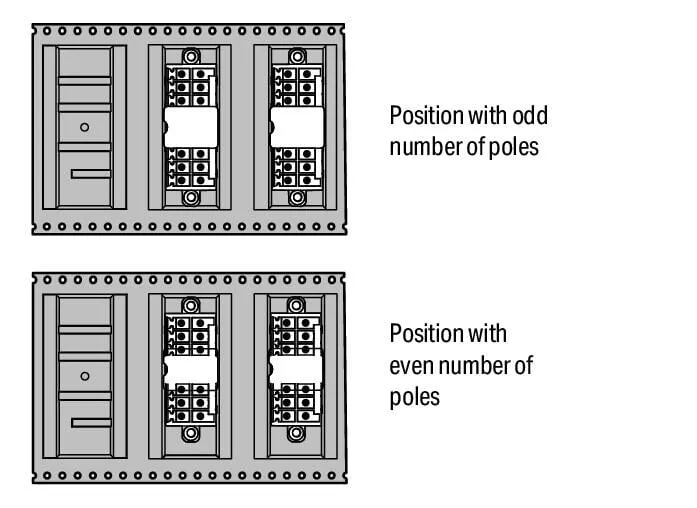

Reel diameter of tape-and-reel packaging330 mm
Tape width72 mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB90 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHR
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorblack
Material groupI
Insulation material (main housing)Polyphthalamide (PPA GF)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Weight6.7 g
MSL per J-STD 020D1

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

PU (SPU)120 pcs
Packaging typebag
Country of originDE
GTIN4050821308904
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)7e21fecd-5353-486c-960f-101ce022a9a6
SCIP notification number (Belgium)42c80d94-db3e-4c39-8801-dbe5f3fc38ac
SCIP notification number (Bulgaria)4d6a6615-2d45-405b-be65-f8b059aaca5e
SCIP notification number (Czech Republic)f56c19fe-2c0f-4e83-9375-250b84a1a1fb
SCIP notification number (Denmark)17c5847e-2e46-4cfc-b774-83456392b137
SCIP notification number (Finland)d34e873f-f9ed-428b-aff6-555540dce73d
SCIP notification number (France)b8117f3a-a00c-4f84-97f6-63b6b0d99b38
SCIP notification number (Germany)b79234f0-7daf-4b4c-826d-9cae5987a95e
SCIP notification number (Hungary)92b3df2a-6fd5-46a7-9105-7d66a3630132
SCIP notification number (Italy)36843611-d9d9-4e50-bca2-45dce3919055
SCIP notification number (Netherlands)cf0647ce-d42e-4902-8811-95eb3623a485
SCIP notification number (Poland)46bcac72-ee62-4e31-bb87-aa48bc858347
SCIP notification number (Romania)68a022fb-646b-4e7a-a426-d53bf63b3f36
SCIP notification number (Sweden)db26046e-1127-4483-830f-79cf80b8f051
