Wago 713-128

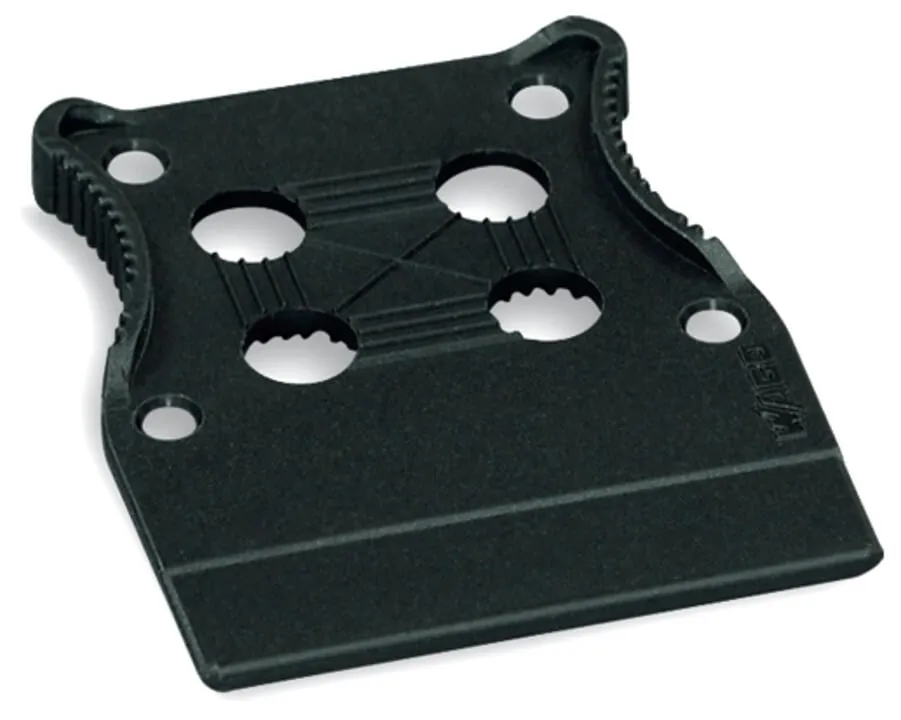

Strain relief plate; for female connectors; 39 mm wide; 1 part; Pin spacing 3.5 mm; black 713-128
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief plate; for female connectors; 39 mm wide; 1 part; Pin spacing 3.5 mm; black 713-128
Specification

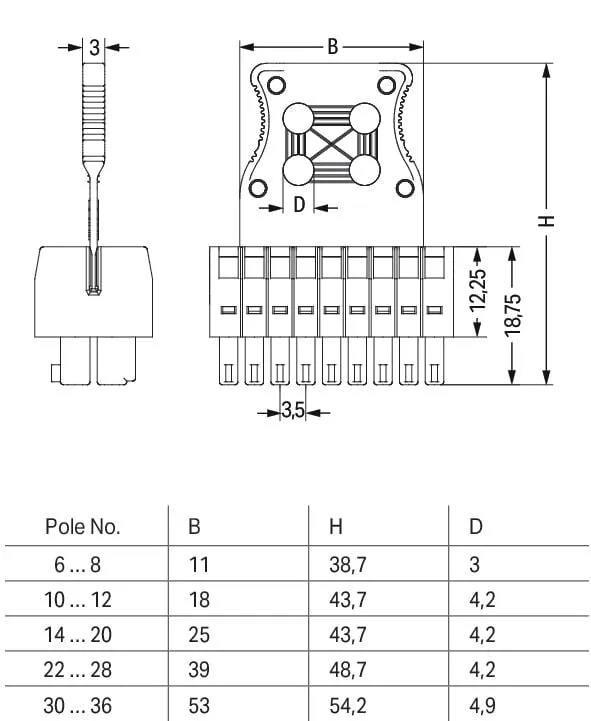

Physical data
| Pin spacing | 3.5 mm / 0.138 inches |
|---|---|
| Width | 39 mm / 1.535 inches |
| Height | 3 mm / 0.118 inches |
| Depth | 36 mm / 1.417 inches |
Mechanical data
| Suitable | for standard female connectors |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Fire load | 0.042 MJ |
| Weight | 1.4 g |
Commercial data
| Product Group | 3 (Multi Conn. System) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454732806 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-44-04-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
|---|---|
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | cf3134f4-0c4d-427b-91f7-75849ff6ceb9 |
| SCIP notification number (Belgium) | 49fcc021-507c-4960-8dd4-ce887aeee0de |
| SCIP notification number (Bulgaria) | eb1946ad-64b4-4c26-8a9e-0e6a671e22b0 |
| SCIP notification number (Czech Republic) | 93a42174-2f52-49dc-a62f-f472b9201228 |
| SCIP notification number (Denmark) | 89b5aaf8-8a0f-448c-a236-e8f0a9e25d1f |
| SCIP notification number (Finland) | 1ad28cde-0869-46c5-bcba-98b0bb131f59 |
| SCIP notification number (France) | c7cc1732-c115-42f7-a7fd-84a9605a1af1 |
| SCIP notification number (Germany) | 97c612ea-a6f0-4a16-b496-370b2e408a7f |
| SCIP notification number (Hungary) | b4469316-ffd8-4177-8bd5-6fccd23a2767 |
| SCIP notification number (Italy) | e1c96943-3194-46b1-b7f2-0c13d2382fbf |
| SCIP notification number (Netherlands) | 6f89b29e-ce42-466e-a7aa-8052d7f951e1 |
| SCIP notification number (Poland) | aa742a60-8e0d-4442-8f4d-33258a12b0e6 |
| SCIP notification number (Romania) | 4a08994b-9eaf-4d6b-9182-26e5cbf29483 |
| SCIP notification number (Sweden) | f1e9c60c-da30-470d-b11b-ee7690e9e8fb |
