Wago 713-125
Strain relief plate; for female connectors; 7.5 mm wide; black 713-125
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

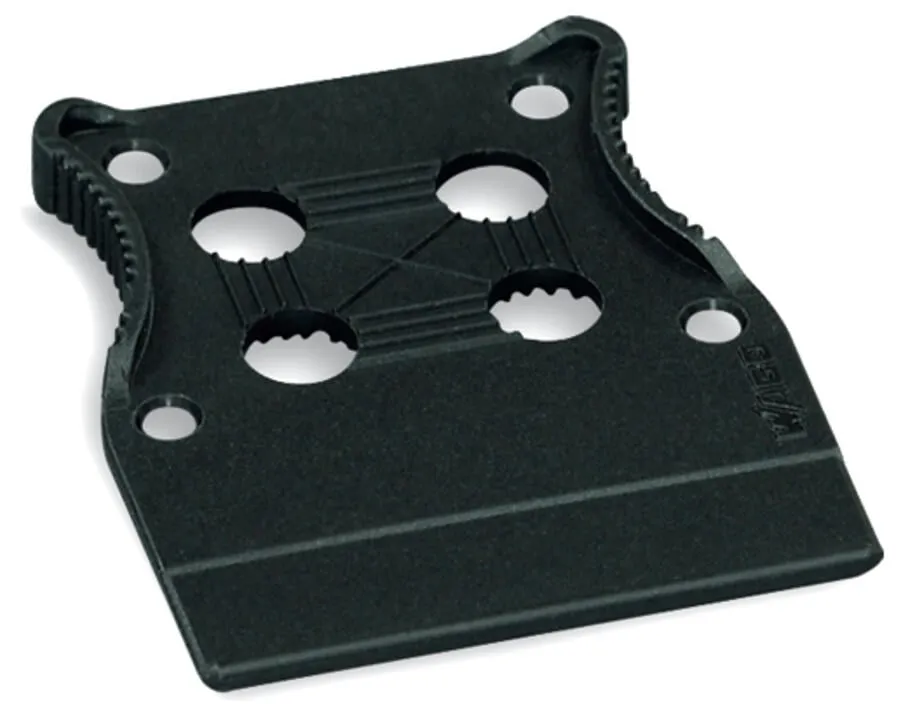

Strain relief plate; for female connectors; 7.5 mm wide; black 713-125

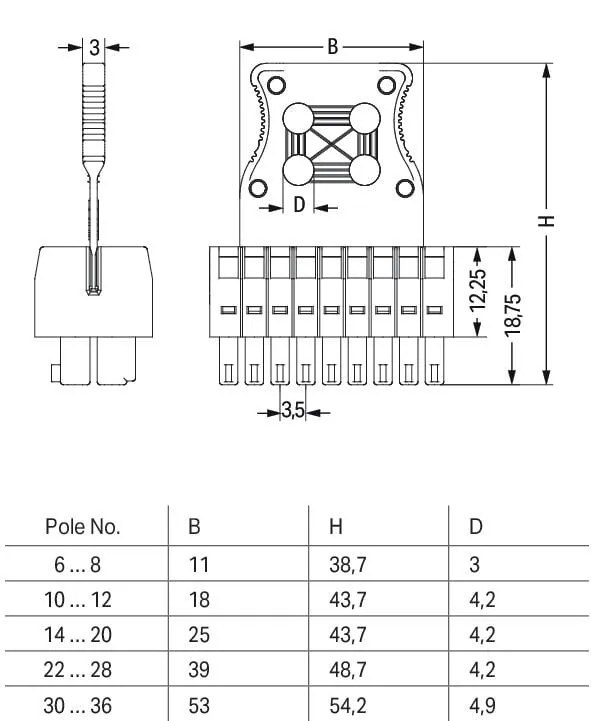

Specification
Physical data
| Pin spacing | 3.5 mm / 0.138 inches |
|---|---|
| Width | 7.5 mm / 0.295 inches |
| Height | 3 mm / 0.118 inches |
| Depth | 26 mm / 1.024 inches |
Mechanical data
| Suitable | for standard female connectors |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.007 MJ |
| Weight | 0.2 g |
Commercial data
| PU (SPU) | 100 (25) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966454604 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
|---|---|
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 2050d0fb-0b48-44ca-bdfd-b0bae1ba8dde |
| SCIP notification number (Belgium) | 38ecc18a-06b7-46e3-9e5d-2e3c597a5549 |
| SCIP notification number (Bulgaria) | 41491337-82c3-41b2-83c0-c48810befe01 |
| SCIP notification number (Czech Republic) | 4ec44420-ed93-48de-984a-53a4352a5daf |
| SCIP notification number (Denmark) | c2a75784-3977-48eb-90ac-180b7f85ebfb |
| SCIP notification number (Finland) | ccb4d1c6-ebce-47f6-a4d7-f888bcd2214e |
| SCIP notification number (France) | be0df41c-273c-4f5d-8489-b2a6473b21b0 |
| SCIP notification number (Germany) | 6bf7ec70-0929-46bd-b2f8-72ece8610947 |
| SCIP notification number (Hungary) | ef1b6ee8-9211-4f4c-bd8a-d1bd41b6e20f |
| SCIP notification number (Italy) | b715335e-a127-4baa-94bb-4934d7149333 |
| SCIP notification number (Netherlands) | 7ebcee6b-c88c-45a5-9e02-23aed6927652 |
| SCIP notification number (Poland) | a1cb3479-0378-4187-8e57-7027d8477d11 |
| SCIP notification number (Romania) | 4fc353fe-293c-4925-983d-d9becc026c9c |
| SCIP notification number (Sweden) | ae55a022-ec11-4770-a657-5a512e2046f4 |
