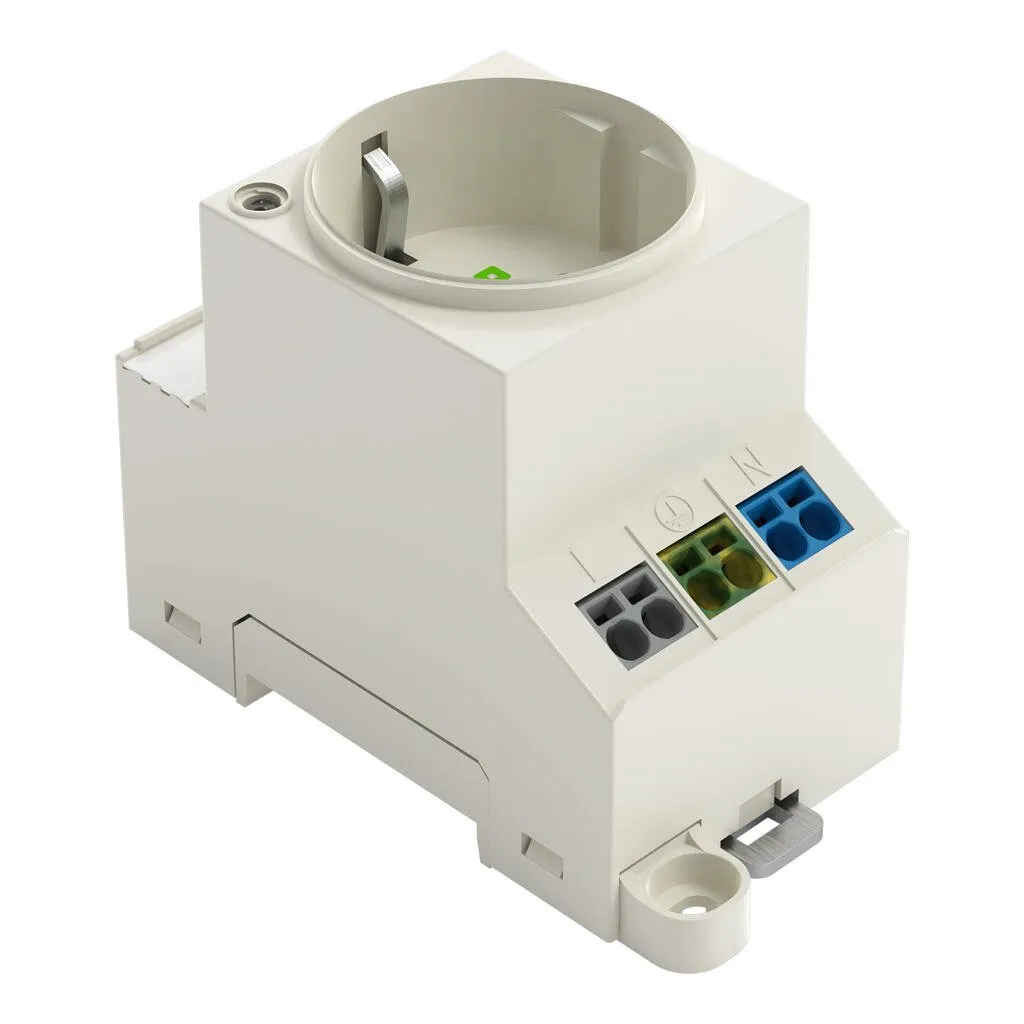

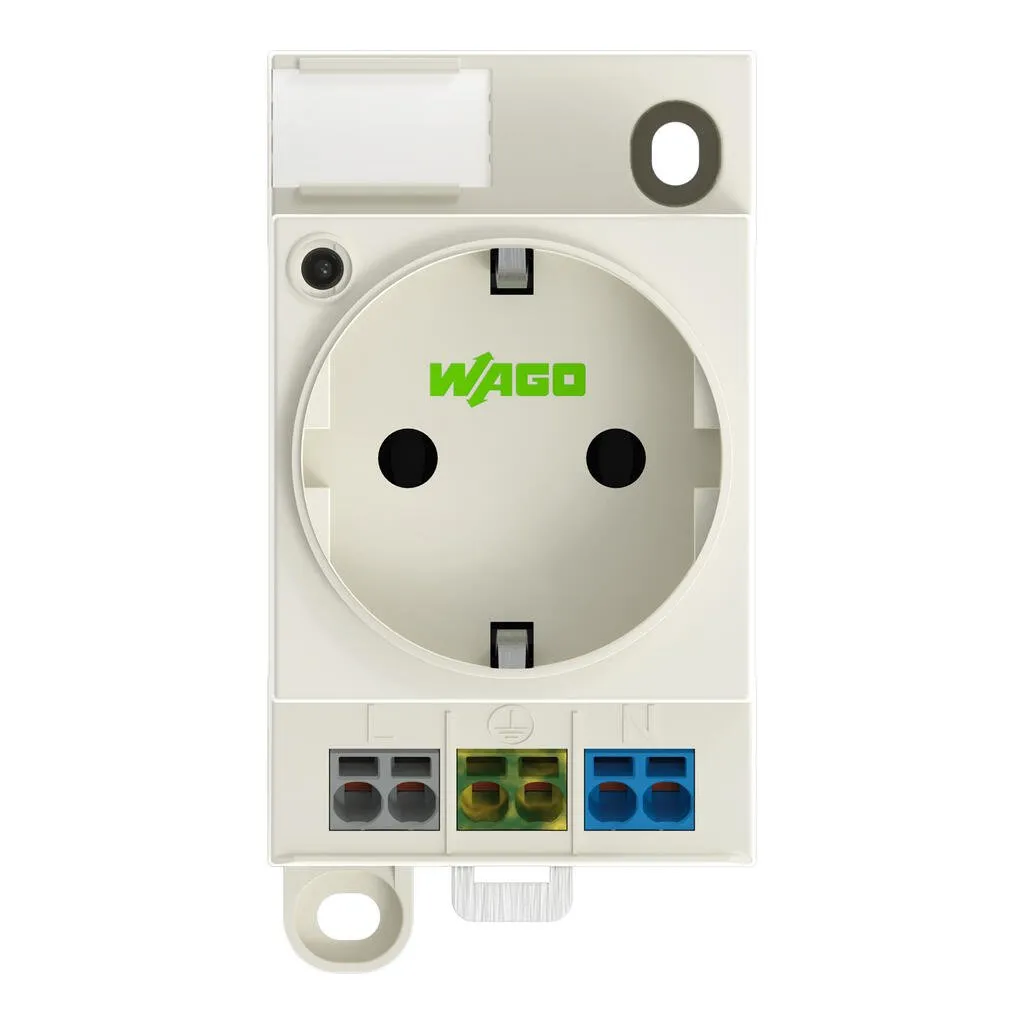

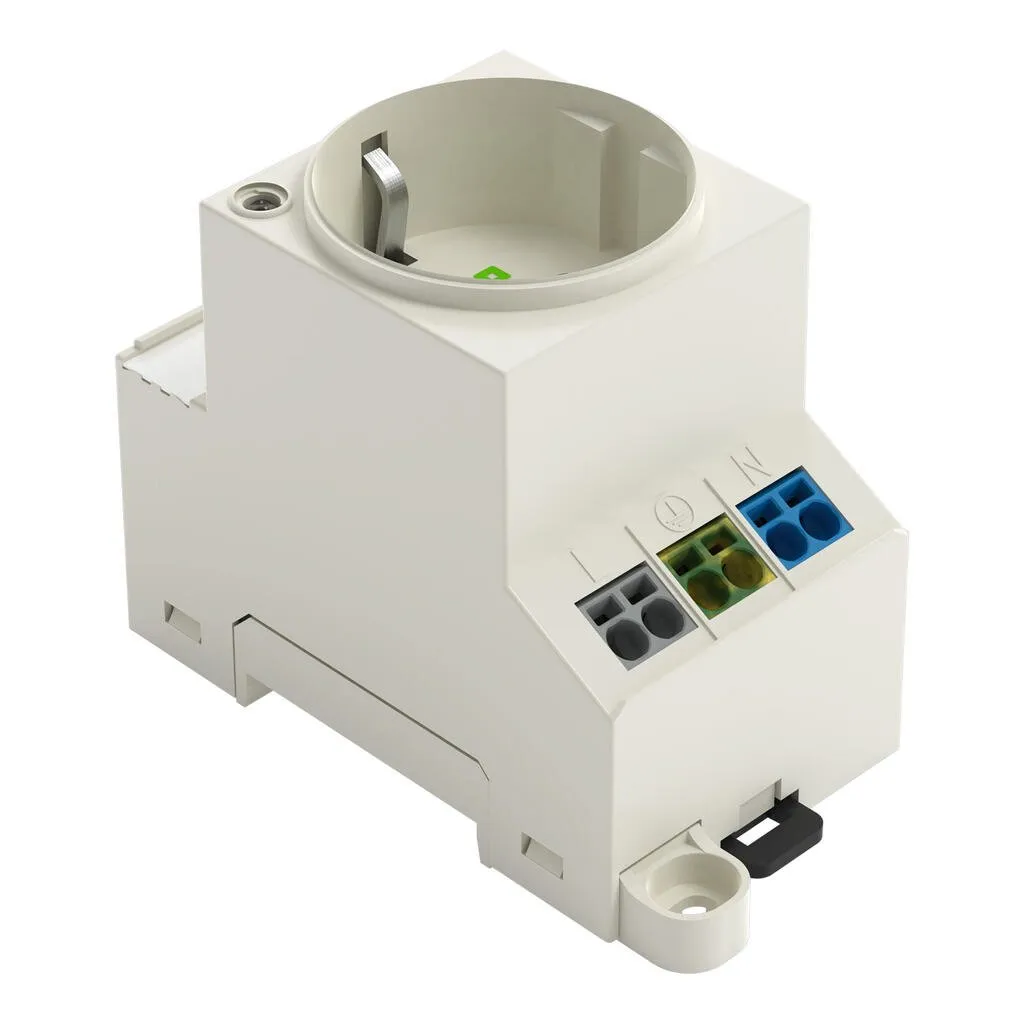

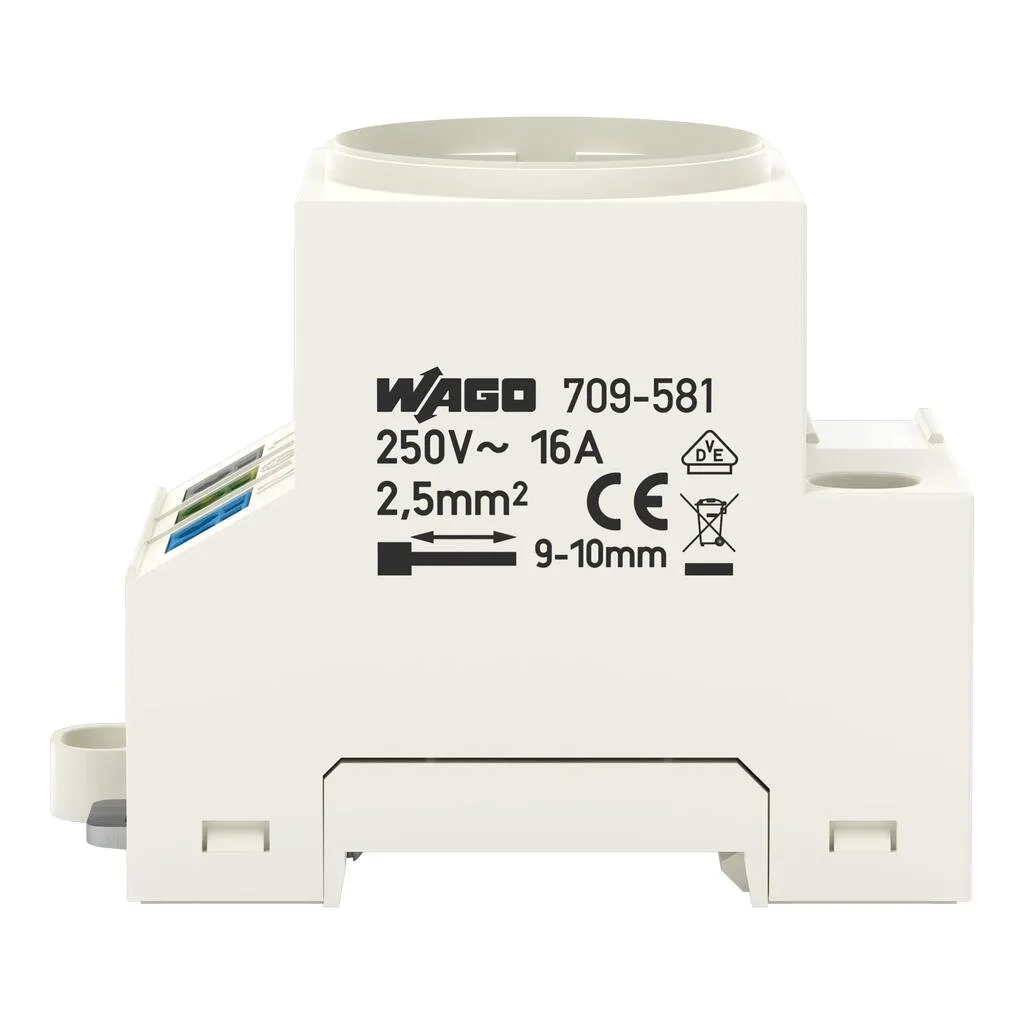

Wago 709-581
Switchgear cabinet outlet; for DIN-rail and screw mounting; for plug, type F, CEE 7/4 (Schuko); common in DE, NL, AT; with LED status indicator; with Push-in Cage Clamp double connection; light gray 7…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Switchgear cabinet outlet; for DIN-rail and screw mounting; for plug, type F, CEE 7/4 (Schuko); common in DE, NL, AT; with LED status indicator; with Push-in Cage Clamp double connection; light gray 709-581
Specification
Notes
| Safety Information | Installation must be performed by a qualified electrician. |
|---|---|
| Safety information 2 | During the insulation resistance test, the active conductors must be connected.The integrated status indicator in the control cabinet outlet must be protected against transient overvoltages.Overvoltage protection in low-voltage systems must be observed. |
Technical data
| Number of spacings | 3 -fach |
|---|---|
| Mounting type | DIN-35 rail |
Electrical data
| Power loss P<sub>l</sub> (note) | LED status indication and contact resistance |
|---|---|
| Power loss P<sub>l</sub> (max.) | 1.8 W |
| Rated current | 16 A |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 2.5 mm² / 14 AWG |
| Stranded conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |

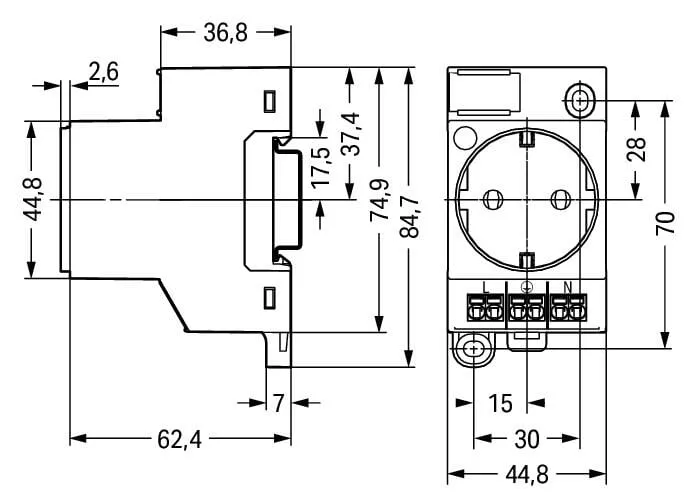

Physical data
| Width | 44.8 mm / 1.732 inches |
|---|---|
| Height | 84.7 mm / 3.48 inches |
| Depth | 65 mm / 2.559 inches |
| Depth from upper-edge of DIN-rail | 60 mm / 2.362 inches |
Material data
| Color | light gray |
|---|---|
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper alloy |
| Contact plating | Sn |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Weight | 81.6 g |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | BG |
| GTIN | 4055143721295 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121406 |
|---|---|
| eCl@ss 10.0 | 27-14-23-05 |
| eCl@ss 9.0 | 27-14-23-05 |
| ETIM 9.0 | EC001663 |
| ETIM 10.0 | EC001663 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
