Wago 706-7753/302-300
System cable; for WAGO-I/O-SYSTEM, 750 Series; 8 digital inputs and 8 digital outputs; Length: 3 m; Conductor cross-section: 0.14 mm² 706-7753/302-300
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System cable; for WAGO-I/O-SYSTEM, 750 Series; 8 digital inputs and 8 digital outputs; Length: 3 m; Conductor cross-section: 0.14 mm² 706-7753/302-300
Specification
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A. |
|---|
Electrical data
| Inputs/outputs | 8 digital inputs and 8 digital outputs |
|---|---|
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 1 A |
Compatibility - WAGO
| WAGO I/O System 750 | 750-1502 |
|---|
Connection data
| Cable type | LiYY |
|---|---|

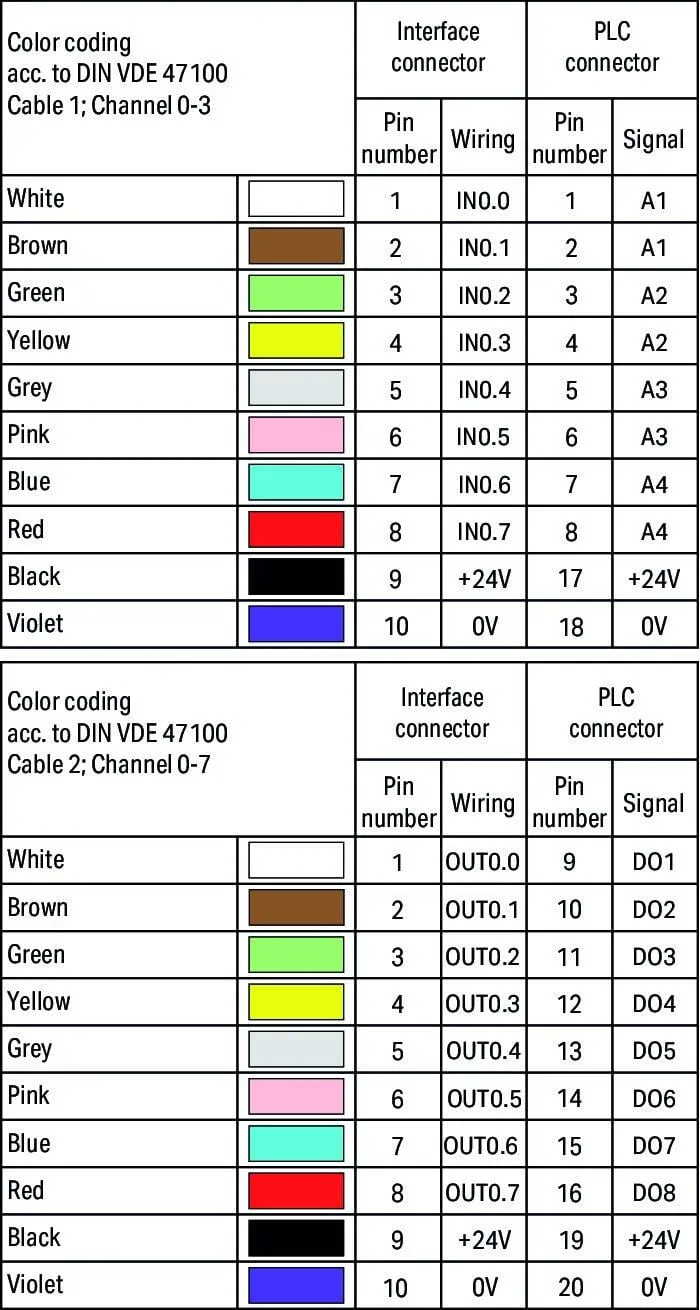

| Color code | per DIN VDE 47100 |

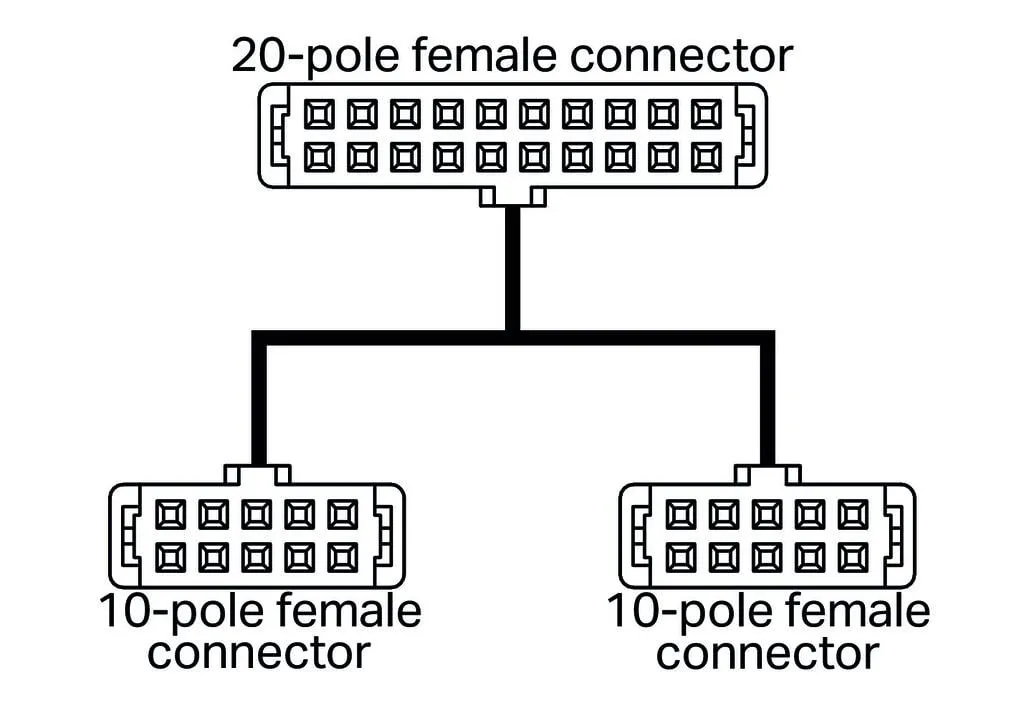

Connection data - Connection 1
| Pluggable connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2

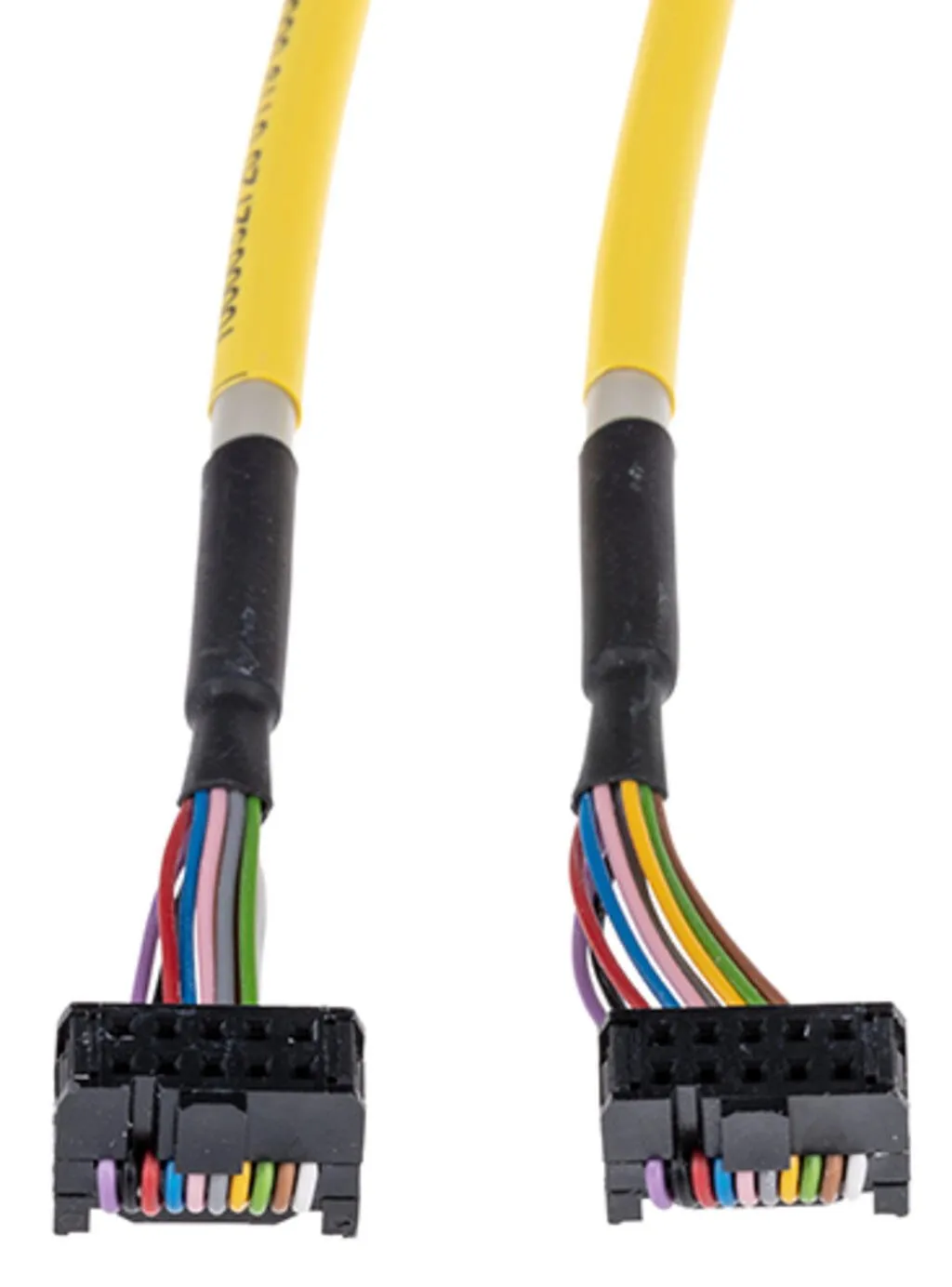

| Connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number | 10 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 3

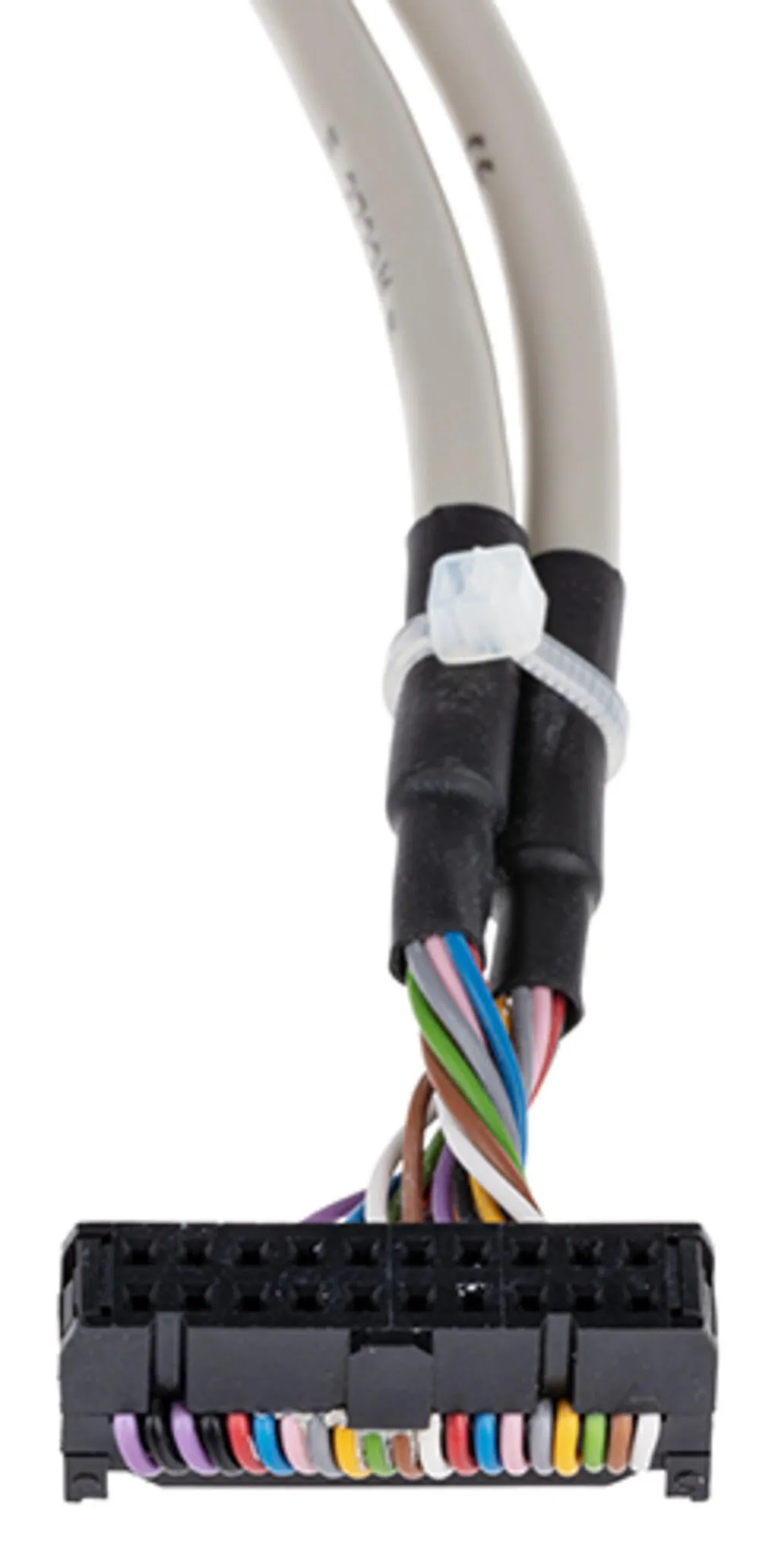

| Connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number | 20 |
| Connection type | System |
Physical data
| Cable length | 3 m |
|---|
Material data
| Weight | 256 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| Product Group | 30 (WAGO France) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | not specified |
| Country of origin | FR |
| GTIN | 4045454967512 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
