Wago 706-7753/300-100
Short description:WAGO’s interface cables provide fast and easy connection of WAGO I/O Modules equipped with a pluggable connector (e.g., 753-430, -431, -530) to the appropriate interface or relay mod…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

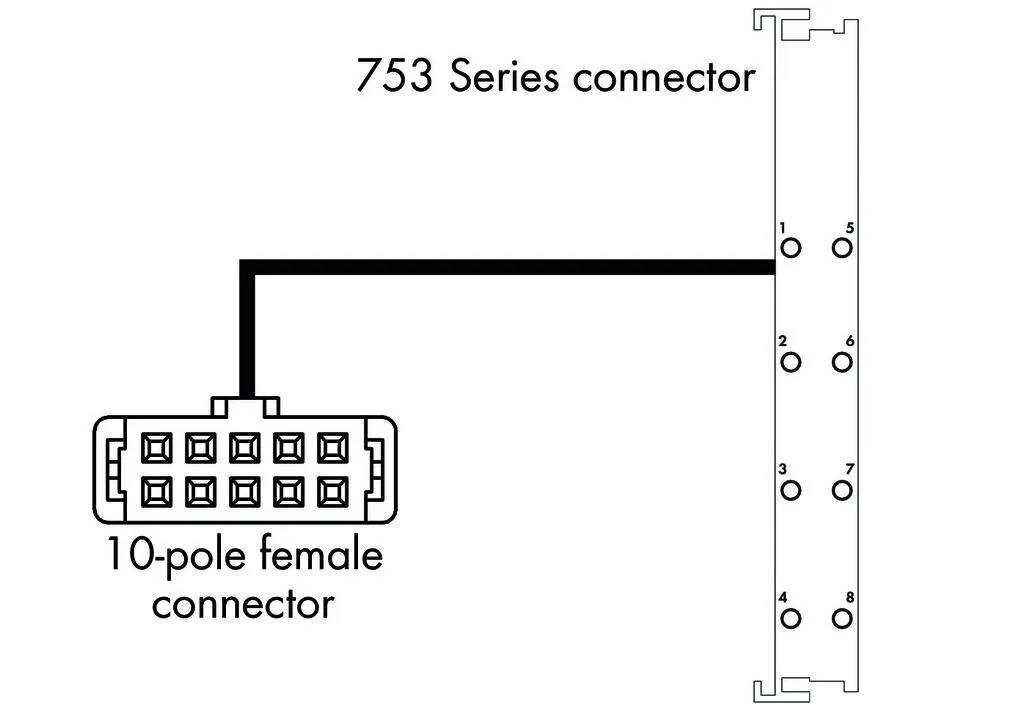

Short description:WAGO’s interface cables provide fast and easy connection of WAGO I/O Modules equipped with a pluggable connector (e.g., 753-430, -431, -530) to the appropriate interface or relay modules featuring a 10-pole female connector.
Specification
Notes
| Note | Observe the maximum operating temperature of the WAGO I/O modules used. |
|---|
Electrical data
| Inputs/outputs | 8 digital inputs or outputs |
|---|---|
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 1 A |
Compatibility - WAGO
| WAGO I/O System 753 | 753-430 (x1), 753-431 (x1), 753-530 (x1) |
|---|
Connection data
| Cable type | LiYY |
|---|---|

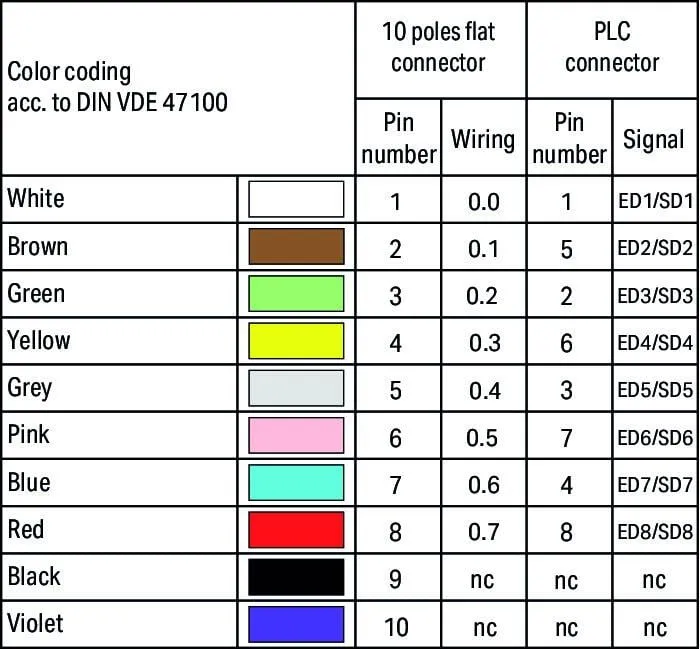

| Color code | per DIN VDE 47100 |
Connection data - Connection 1

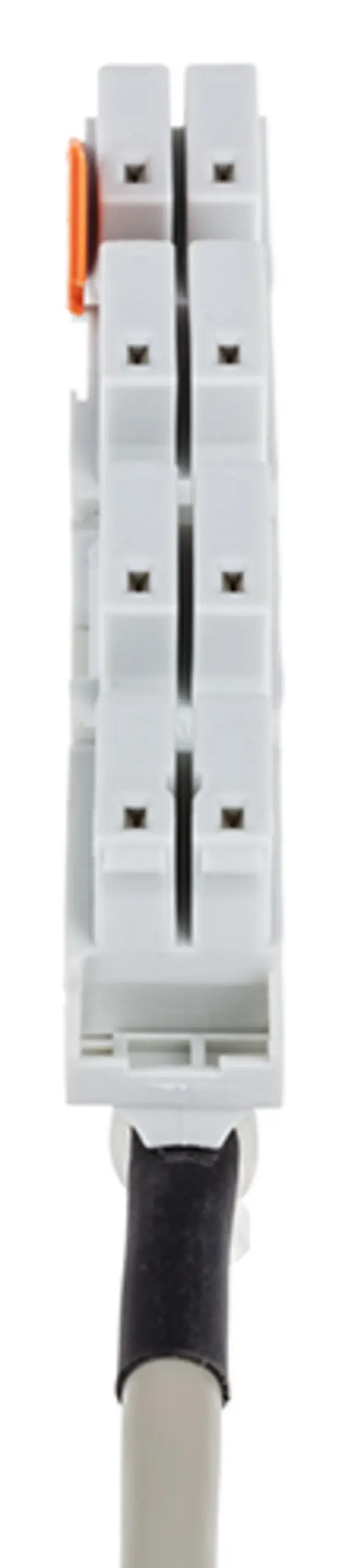

| Pluggable connector | Pluggable connector (753 Series) |
|---|---|
| Pole number 1 | 8 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2

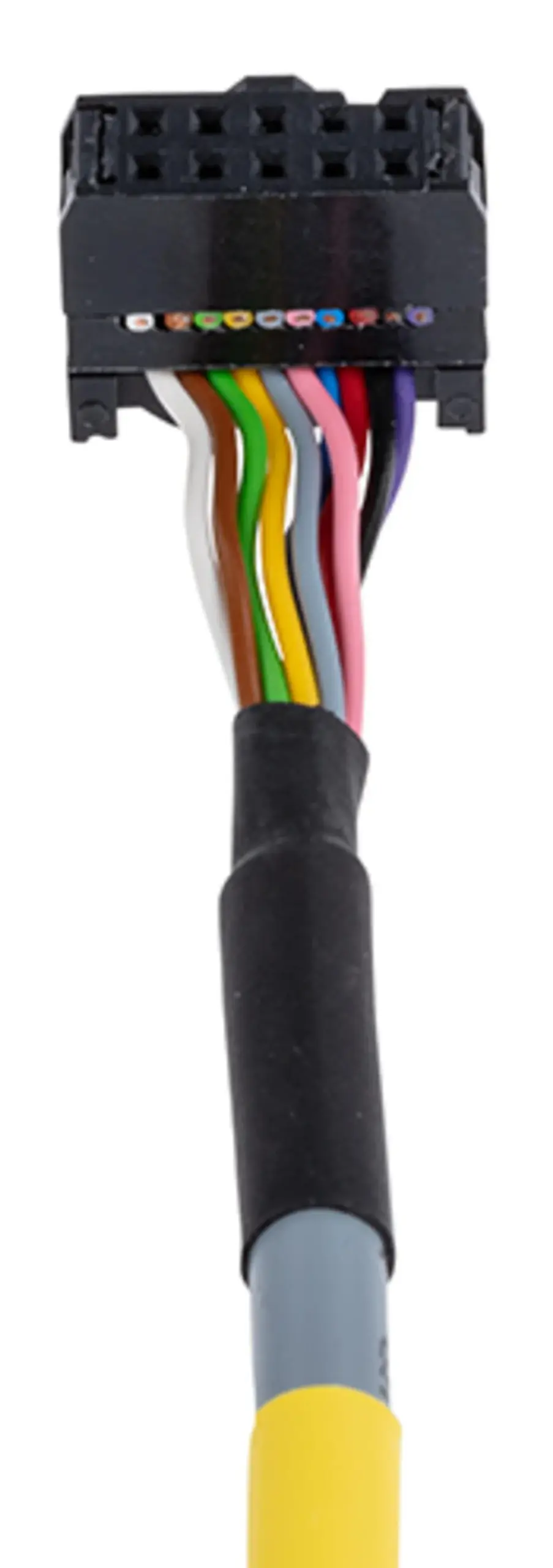

| Connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number | 10 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Physical data
| Cable length | 1 m |
|---|
Material data
| Weight | 58 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| Product Group | 30 (WAGO France) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | not specified |
| Country of origin | FR |
| GTIN | 4045454874100 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
