Wago 706-753/300-300
Short description:WAGO’s 14-pole interface cables transmit the signal one-to-one from the 14-pole connector and are available in 1-, 2- and 3-meter lengths.These cables are suitable for system wiring…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

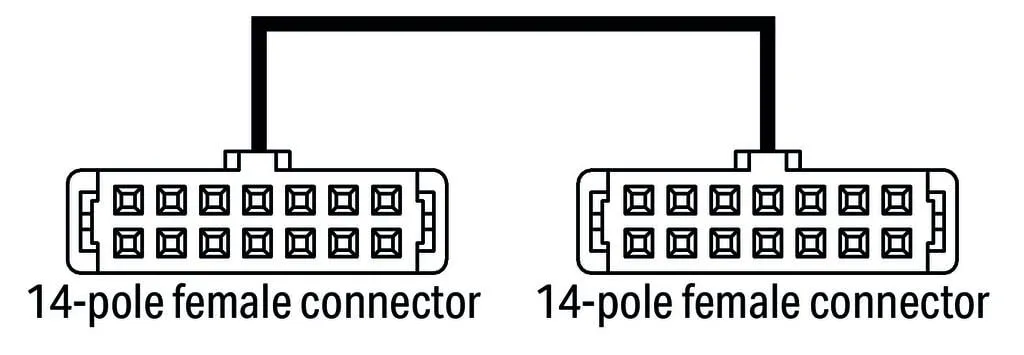

Short description:WAGO’s 14-pole interface cables transmit the signal one-to-one from the 14-pole connector and are available in 1-, 2- and 3-meter lengths.These cables are suitable for system wiring when paired with 857-981 and 857-982 Interface Adapters.
Specification
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A. |
|---|
Electrical data
| Operating voltage | ≤ 35 VAC/VDC |
|---|---|
| Current per wire (max.) | 1 A |
Connection data
| Cable type | LiYY |
|---|---|

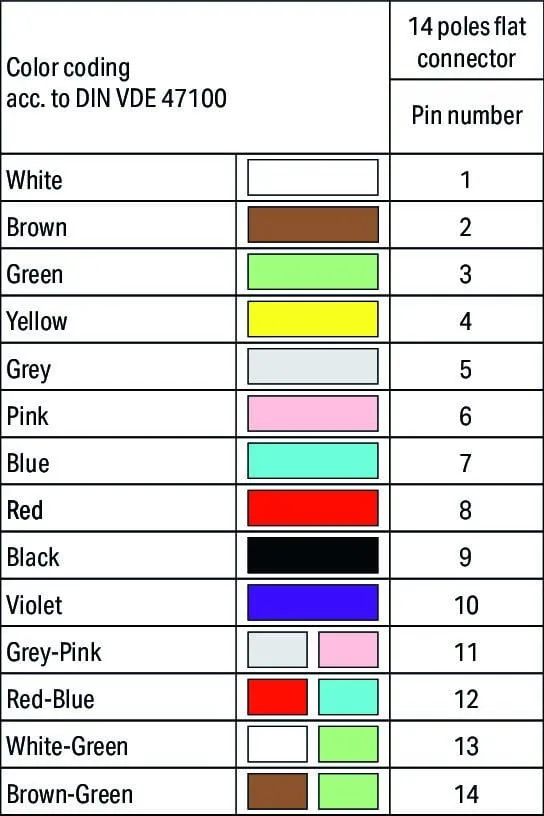

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number 1 | 14 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2
| Connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number | 14 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Physical data
| Cable length | 3 m |
|---|
Material data
| Weight | 165 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|
Commercial data
| Product Group | 30 (WAGO France) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | FR |
| GTIN | 4050821081647 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
