Wago 706-5030/100-300
System cable; for GE Fanuc 9030; 16 digital inputs for higher voltages; Length: 3 m; Conductor cross-section: 0.34 mm² 706-5030/100-300
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System cable; for GE Fanuc 9030; 16 digital inputs for higher voltages; Length: 3 m; Conductor cross-section: 0.34 mm² 706-5030/100-300
Specification
Notes
| Note | If less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. |
|---|
Electrical data
| Inputs/outputs | 16 digital inputs; for higher voltages |
|---|---|
| Operating voltage | ≤ 250 VAC/VDC |
| Current per wire (max.) | 0.75 A |
Compatibility - GE Fanuc
| GE Fanuc 9030 | IC693 MDL240 |
|---|
Connection data
| Cable type | LiYY |
|---|---|

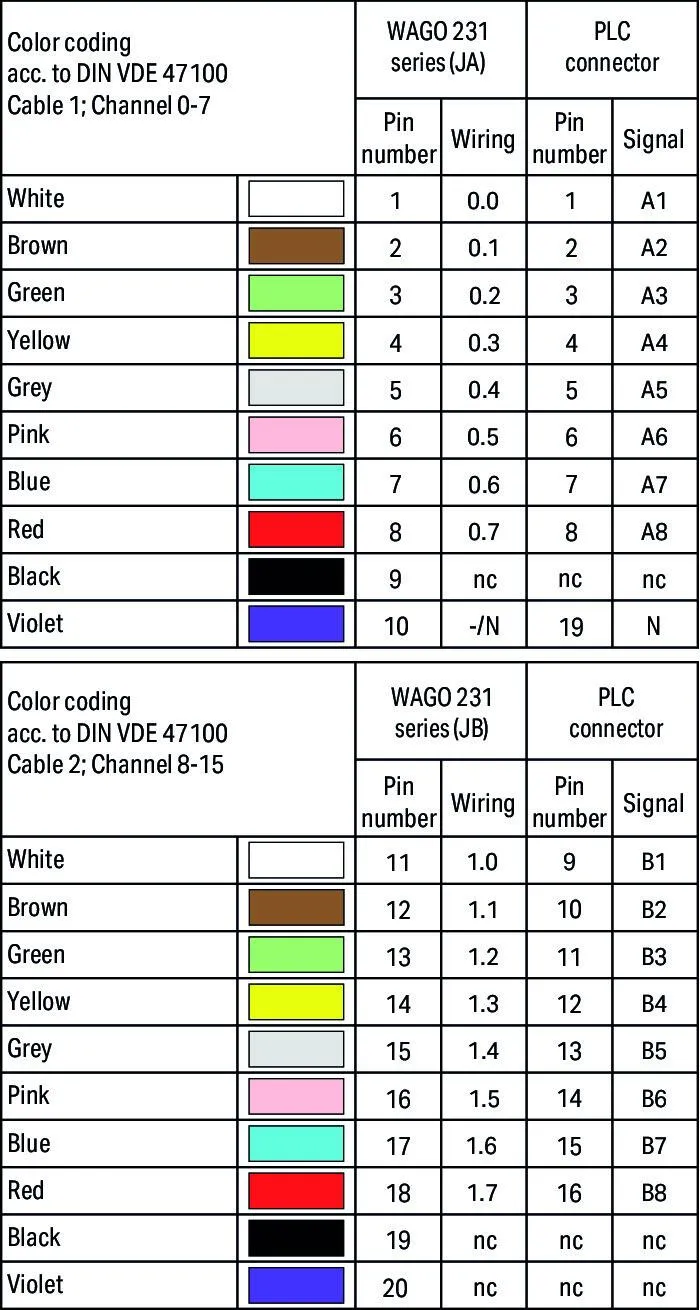

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | WAGO 231 Series |
|---|---|
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
Connection data - Connection 2
| Connector | WAGO 231 Series |
|---|---|
| Pole number | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
Connection data - Connection 3
| Connector | GeFanuc IC 693 ACC 311 |
|---|---|
| Pole number | 20 |
| Connection type | System |
Physical data
| Cable length | 3 m |
|---|
Material data
| Weight | 1.1 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| GTIN | 4055143048590 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
