Wago 706-3340/404-300

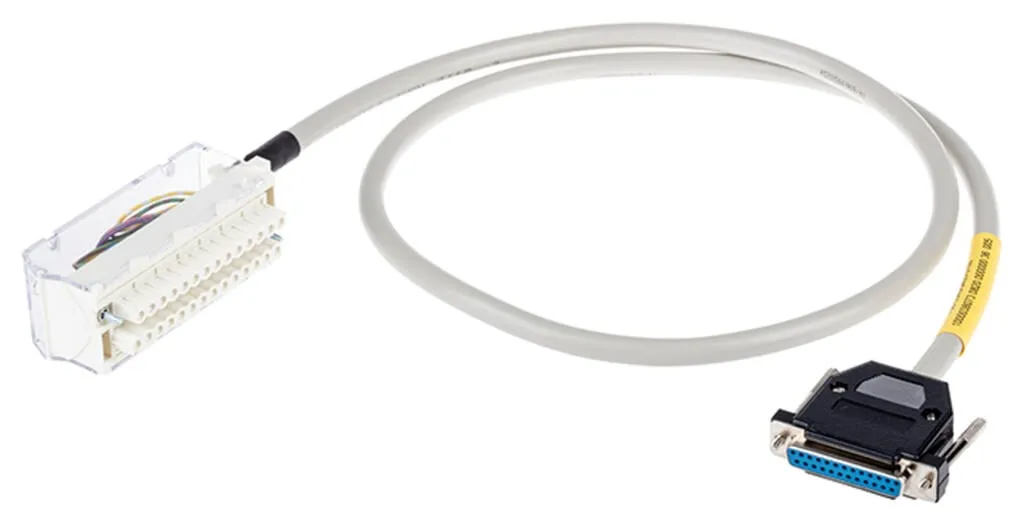

System cable; for Schneider Modicon M340; 8 analog inputs (current); Length: 3 m; Conductor cross-section: 0.25 mm² 706-3340/404-300
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System cable; for Schneider Modicon M340; 8 analog inputs (current); Length: 3 m; Conductor cross-section: 0.25 mm² 706-3340/404-300
Specification
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 1 A. |
|---|
Electrical data
| Inputs/outputs | 8 analog inputs; current |
|---|---|
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 2 A |
Compatibility - Schneider
| Schneider Modicon M340 | BMX AMI 0800, BMX AMI 0810 |
|---|
Connection data
| Cable type | LiYCY |
|---|---|

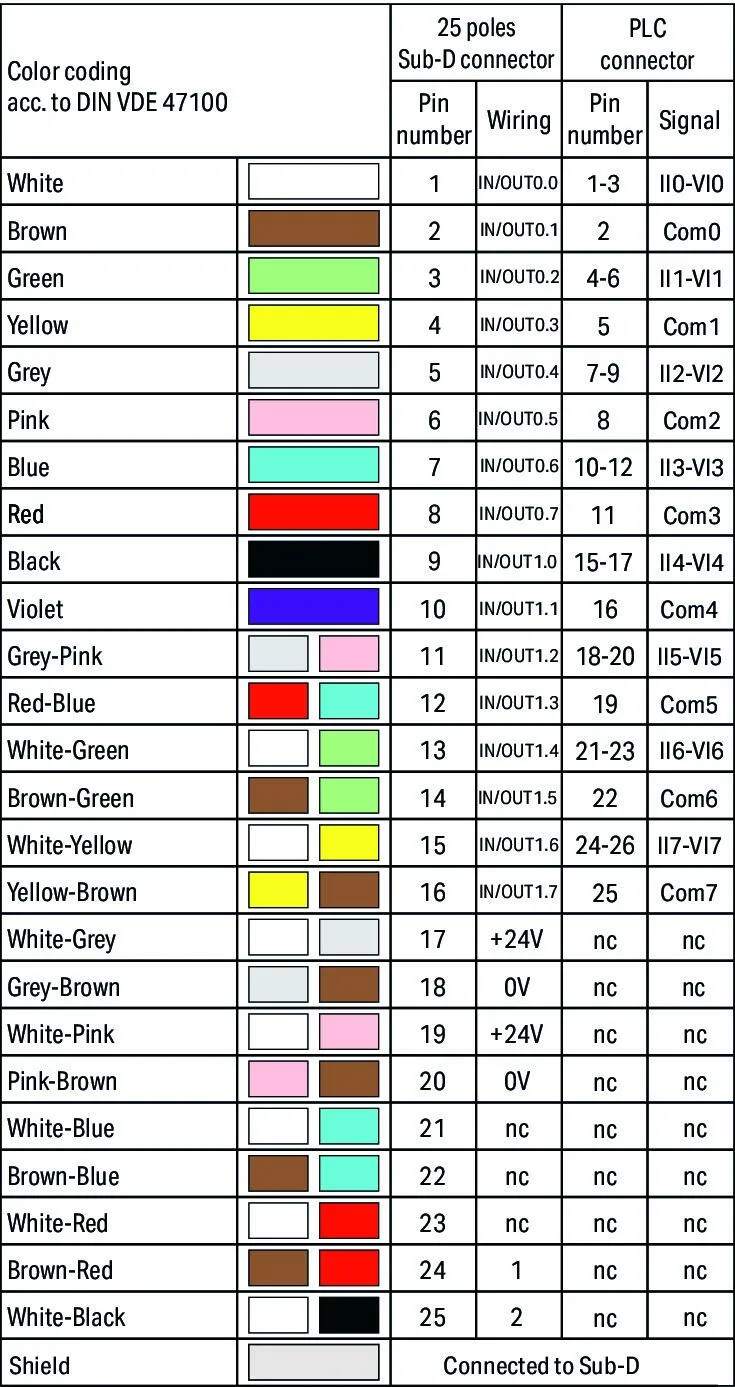

| Color code | per DIN VDE 47100 |
Connection data - Connection 1
| Pluggable connector | D-subminiature female connector |
|---|---|
| Pole number 1 | 25 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
Connection data - Connection 2
| Connector | Schneider BMXFTB2020 |
|---|---|
| Pole number | 28 |
| Connection type | System |
| Wire cross-section | 0.25 mm² |
Physical data
| Cable length | 3 m |
|---|
Material data
| Weight | 426 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| Product Group | 30 (WAGO France) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | not specified |
| Country of origin | FR |
| GTIN | 4050821435570 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
