Wago 706-2300/301-100
System cable; for Siemens S7-300; 2 x 16 digital inputs or outputs; Length: 1 m; Conductor cross-section: 0.14 mm² 706-2300/301-100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System cable; for Siemens S7-300; 2 x 16 digital inputs or outputs; Length: 1 m; Conductor cross-section: 0.14 mm² 706-2300/301-100
Specification
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A. |
|---|
Electrical data
| Inputs/outputs | 2 x 16 digital inputs or outputs |
|---|---|
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 1 A |
Compatibility - Siemens
| Siemens S7-300 | 6ES7 313-5BE01-0AB0, 6ES7 313-5BG04-0AB0, 6ES7 313-6BE01-0AB0, 6ES7 313-6BF03-0AB0, 6ES7 313-6CE01-0AB0, 6ES7 313-6CF03-0AB0, 6ES7 314-6BF01-0AB0, 6ES7 314-6BG03-0AB0, 6ES7 314-6CF01-0AB0, 6ES7 314-6CG03-0AB0, 6ES7 321-1BL00-0AA0, 6ES7 321-1BL80-0AA0, 6ES7 322-1BL00-0AA0, 6ES7 323-1BL00-0AA0 |
|---|
Connection data
| Cable type | LiYY |
|---|---|

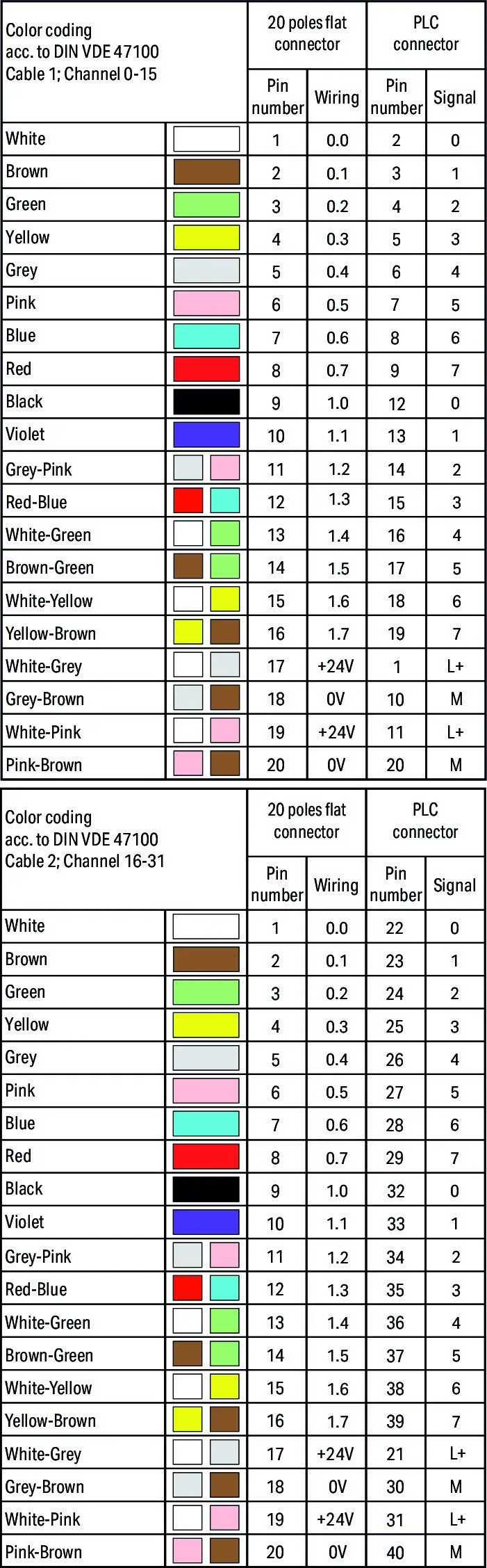

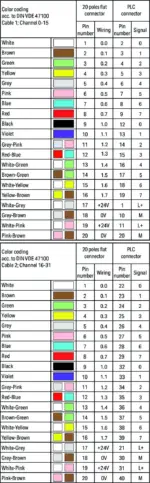

| Color code | per DIN VDE 47100 |
Connection data - Connection 1

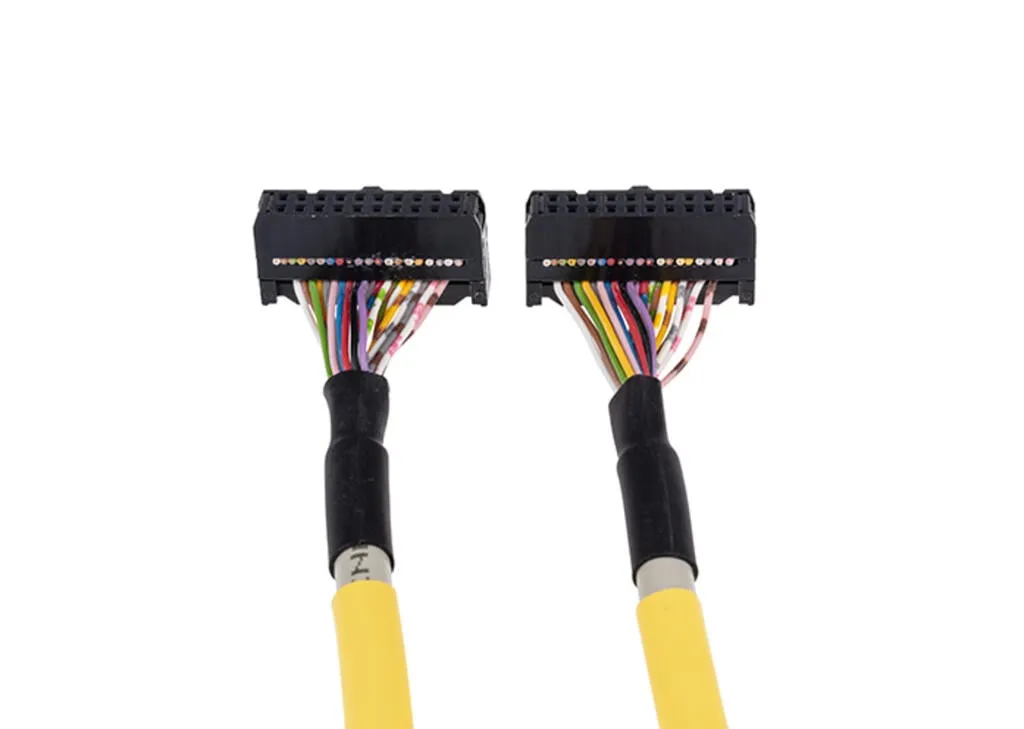

| Pluggable connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number 1 | 20 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2
| Connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number | 20 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 3

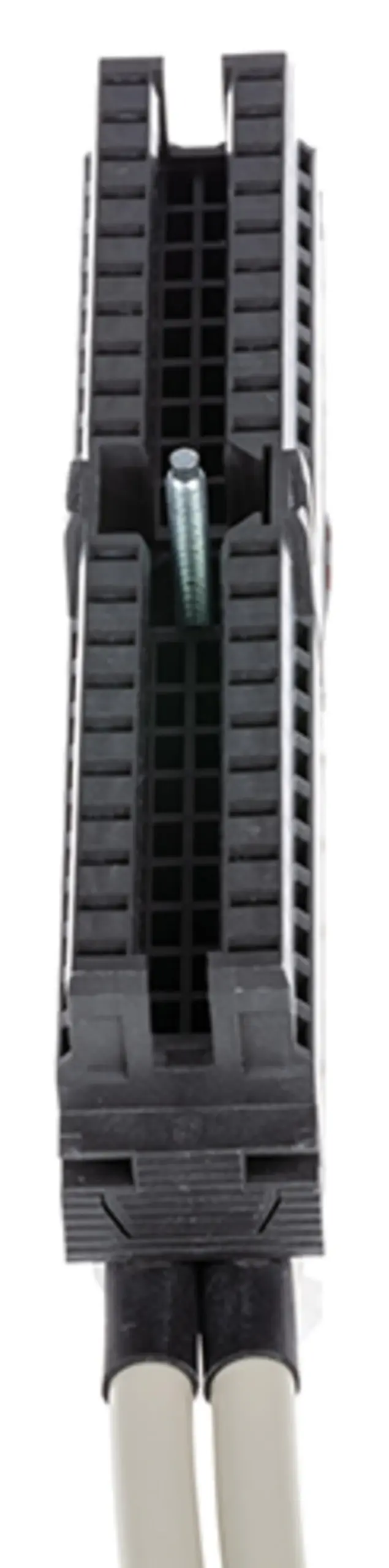

| Connector | Siemens 6ES7-392-1BM00-0AA0 |
|---|---|
| Pole number | 40 |
| Connection type | System |
Physical data
| Cable length | 1 m |
|---|
Material data
| Weight | 247 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| Product Group | 30 (WAGO France) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | not specified |
| Country of origin | FR |
| GTIN | 4045454873875 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-24-22-20 |
| eCl@ss 9.0 | 27-24-22-20 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
