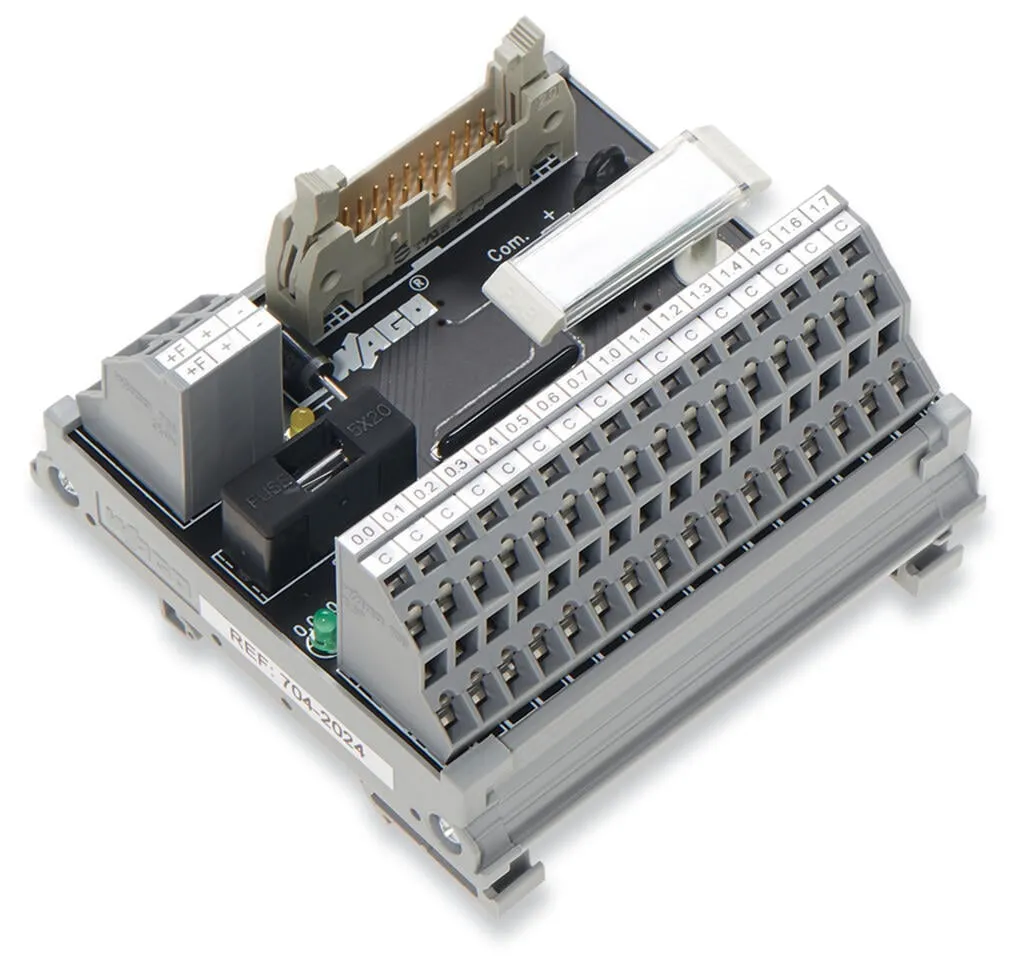

Wago 704-2024

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel digital input or output; 2-wire connection; in mounting carrier 704-2024

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

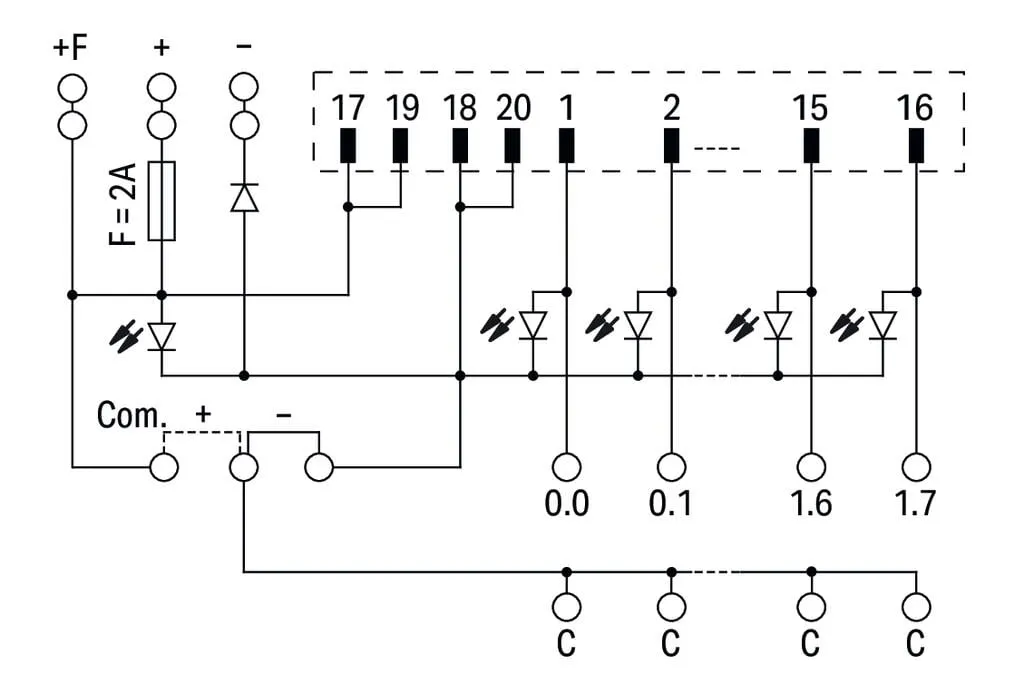

Description

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel digital input or output; 2-wire connection; in mounting carrier 704-2024

Specification

Electrical data

Inputs/outputs16-channel digital input or output
Circuit type2-wire connection
Nominal operating voltage24 VDC
Operating voltage range±10 %
Current consumption (status indication)5 mA
Total current2 A
Limiting continuous current1 A
Status indicatorGreen LED (channel), Yellow LED (power supply)
Internal fuse2 A

Safety and protection

Rated voltage50 V
Rated impulse withstand voltage0.8 kV
Pollution degree2

Compatibility - Siemens

Siemens S7-3006ES7 313-5BE01-0AB0, 6ES7 313-5BG04-0AB0, 6ES7 313-6BE01-0AB0, 6ES7 313-6BF03-0AB0, 6ES7 313-6CE01-0AB0, 6ES7 313-6CF03-0AB0, 6ES7 314-6BF01-0AB0, 6ES7 314-6BG03-0AB0, 6ES7 314-6CF01-0AB0, 6ES7 314-6CG03-0AB0, 6ES7 321-1BH02-0AA0, 6ES7 321-1BH10-0AA0, 6ES7 321-1BH80-0AA0, 6ES7 321-1BL00-0AA0, 6ES7 321-1BL80-0AA0, 6ES7 321-1BP00-0AA0, 6ES7 321-7BH01-0AB0, 6ES7 321-7BH80-0AA0, 6ES7 322-1BH01-0AA0, 6ES7 322-1BH10-0AA0, 6ES7 322-1BH80-0AA0, 6ES7 322-1BL00-0AA0, 6ES7 322-1BP00-0AA0, 6ES7 322-1EH01-0AA0, 6ES7 322-8BH01/8BH10-0AB0, 6ES7 323-1BL00-0AA0, 6ES7 326-1BK01-0AB0, 6ES7 326-1RF00-0AB0
Siemens S7-4006ES7 421-1BL01-0AA0, 6ES7 421-7BH01-0AB0, 6ES7 422-1BL00-0AA0, 6ES7 422-7BL00-0AB0
Siemens S7-15006ES7 511-1CK00-0AB0, 6ES7 512-1CK00-0AB0, 6ES7 521-1BH00-0AA0, 6ES7 521-1BH10-0AA0, 6ES7 521-1BL00-0AB0, 6ES7 521-1BL10-0AA0, 6ES7 521-1BP00-0AA0, 6ES7 522-1BH00-0AB0, 6ES7 522-1BH01-0AB0, 6ES7 522-1BH10-0AA0, 6ES7 522-1BL00-0AB0, 6ES7 522-1BL01-0AB0, 6ES7 522-1BL10-0AA0, 6ES7 522-1BP00-0AA0, 6ES7 523-1BL00-0AA0, 6ES7 526-1BH00-0AB0
Siemens ET200SP6ES7 131-6BH01-0BA0, 6ES7 131-6BH01-2BA0, 6ES7 132-6BH00-0AA0, 6ES7 132-6BH00-2AA0, 6ES7 132-6BH01-0BA0, 6ES7 132-6BH01-2BA0

Compatibility - GE Fanuc

GE Fanuc 9030IC693 MDL241, IC693 MDL640, IC693 MDL643, IC693 MDL645, IC693 MDL646, IC693 MDL655, IC693 MDL740, IC693 MDL742, IC693 MDL753
GE Fanuc RX3iIC694 MDL655, IC694 MDL753

Compatibility - Schneider

Schneider Modicon TM3TM3 DI16(G), TM3 DI16K, TM3 DI32K, TM3 DQ16T(G), TM3 DQ16TK, TM3 DQ32TK
Schneider Modicon M340BMX DDI 1602, BMX DDI 3202K, BMX DDI 6402K, BMX DDO 1602, BMX DDO 3202K, BMX DDO 6402K, BMX DDM 3202K
Schneider Modicon Quantum140 DDI 353 00, 140 DDI 364 00, 140 DDO 353 00, 140 DDO 353 01, 140 DDO 364 00, 140 DDM 390 00, 140 DSI 353 00, 140 DVO 853 00
Schneider TSXTSX DEY 16D2, TSX DEY 16FK, TSX DEY 32D2K, TSX DEY 64D2K, TSX DMY 28FK, TSX DMY 28RFK, TSX DSY 16T2, TSX DSY 32T2K, TSX DSY 64T2K, TSX DMZ 28DT, TSX DMZ 28DTK, TSX DMZ 64DTK, TSX DSZ 32T2, TSX DEZ 12D2K, TSX DEZ 32D2
Schneider TwidoTM2 DDI 16DK, TM2 DDI 32DK, TM2 DDO 16TK, TM2 DDO 32TK

Compatibility - Rockwell

Rockwell Compact Logix1769 - IQ16, 1769 - IQ16F, 1769 - IQ32, 1769 - IQ32T, 1769 - OB16, 1769 - OB16P, 1769 - OB32, 1769 - OB32T
Rockwell Control Logix1756 - IB16I, 1756 - IB16ISOE, 1756 - IB32, 1756 - OB16E, 1756 - OB16I, 1756 - OB16IS, 1756 - OB32

Compatibility - Omron

Omron CJ1WCJ1W-ID211, CJ1W-ID231, CJ1W-ID232, CJ1W-ID261, CJ1W-ID262, CJ1W-IDP01, CJ1W-INT01, CJ1W-MD232, CJ1W-OD212, CJ1W-OD232, CJ1W-OD262

Compatibility - WAGO

WAGO I/O System 750750-1400, 750-1500, 750-1502
WAGO I/O System 753753-430 (x2), 753-431 (x2), 753-530 (x2)

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; male connector
Pole number 120
Connection typeSystem
Note (conductor cross-section)12 AWG: THHN, THWN
Mating directionvertical

Connection data - Connection 2

DesignPCB terminal blocks (double-deck)
Pole number32
Connection typeField
WAGO connectorWAGO 736 Series
Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 12 AWG
Strip length5 … 6 mm / 0.2 … 0.24 inches

Connection data - Connection 3

DesignPCB terminal blocks (double-deck)
Pole number6
Connection typePower supply
WAGO connectorWAGO 736 Series
Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 12 AWG
Strip length5 … 6 mm / 0.2 … 0.24 inches

Physical data

Width85 mm / 3.346 inches
Height85 mm / 3.346 inches
Depth from upper-edge of DIN-rail50 mm / 1.969 inches

Mechanical data

Mounting typeDIN-35 rail

Material data

Fire load1.694 MJ
Weight112.3 g

Environmental requirements

Ambient temperature (operation)-20 … +50 °C
Ambient temperature (storage)-40 … +70 °C
Relative humidity≤ 85 % (non-condensing)

Commercial data

Product Group30 (WAGO France)
PU (SPU)1 pcs
Packaging typebox
Country of originFR
GTIN4050821220657
Customs tariff number85366990990

Product Classification

UNSPSC39121421
eCl@ss 10.027-14-11-52
eCl@ss 9.027-14-11-52
ETIM 9.0EC002780
ETIM 10.0EC002780
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
