Wago 294-8435

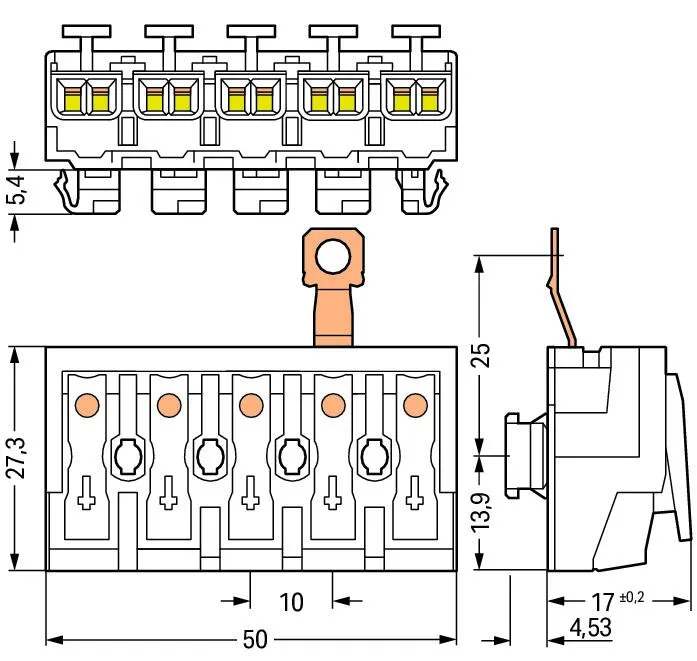

Field-wiring terminal block with linect^®, 294 Series, Push-inOur field-wiring terminal block with linect^® (item number 294-8435) is designed for seamless electrical installations. Conductors can only be connected to field-wiring terminal block with linect^® if their strip length is between 8 and 9 mm . This product incorporates four conductor terminals and utilizes Push-in CAGE CLAMP® and PUSH WIRE®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Our PUSH WIRE® connection is the quick and easy method for connecting solid conductors. The dimensions are (50 x 22.4 x 27.3) mm (width x height x depth). Field-wiring terminal block with linect^® is suitable for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on one side and for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on the other side as well as conductor cross sections from 0.5 mm² to 2.5 mm² and from 0.5 mm² to 0.75 mm² depending on the conductor type.Tin is used for coating the contact surfaces.
