Wago 294-8095/5026-000
Field-wiring terminal block with linect<sup>®</sup>, 294 Series, Push-inEnjoy seamless electrical installations with field-wiring terminal block with linect<sup>®</sup> (item n…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Field-wiring terminal block with linect<sup>®</sup>, 294 Series, Push-inEnjoy seamless electrical installations with field-wiring terminal block with linect<sup>®</sup> (item number 294-8095/5026-000). Ensure that the strip lengths are between 8 and 9 mm when connecting conductors to field-wiring terminal block with linect<sup>®</sup>. Featuring four conductor terminals along with Push-in CAGE CLAMP® as well as PUSH WIRE®, this product delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. Our PUSH WIRE® connection offers a quick and simple solution for connecting solid conductors. Field-wiring terminal block with linect<sup>®</sup> is suitable for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on one side and for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on the other side as well as conductor cross sections from 0.5 mm² to 2.5 mm² and from 0.5 mm² to 0.75 mm² depending on the conductor type.The contact surface is coated with tin.
Specification
Electrical data - Ratings per IEC/EN
| Ratings | Connection points |
|---|---|
| Ratings per | IEC/EN 60998-1 |
| Nominal voltage (II/2) | 500 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 24 A |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Ratings | Connection points / Connection points / Connection points |
| Ratings per | IEC/EN 60998-1 / IEC/EN 60998-1 / IEC/EN 60998-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 24 A |
Electrical data - Ratings per IEC/EN 2
| Ratings | Connection points |
|---|---|
| Ratings per | IEC/EN 60998-2-2 |
| Rated voltage (II/2) | 500 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 24 A |
| Ratings | Connection points / Connection points / Connection points |
| Ratings per | IEC/EN 60998-2-2 / IEC/EN 60998-2-2 / IEC/EN 60998-2-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 24 A |
Electrical data - Ratings per IEC/EN 3
| Ratings | Linect® plug-in connection |
|---|---|
| Ratings per | IEC/EN 61984 |
| Rated voltage (II/2) | 500 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 16 A |
| Ratings | Linect® plug-in connection / Linect® plug-in connection / Linect® plug-in connection |
| Ratings per | IEC/EN 61984 / IEC/EN 61984 / IEC/EN 61984 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 16 A |
Connection data
| Number of connection types | 4 |
|---|
Connection data - Connection 1
| Connection type | External 1 |
|---|---|
| Connection technology | Push-in CAGE CLAMP® |
| Number of connection points | 2 |
| Actuation type | Push-button |
| Solid conductor | 0.5 … 2.5 mm² / 18 … 12 AWG |
| Solid conductor; push-in termination | 0.5 … 2.5 mm² / 18 … 12 AWG |
| Stranded conductor | 0.5 … 2.5 mm² / 18 … 14 AWG |
| Fine-stranded conductor | 0.5 … 2.5 mm² / 18 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5 mm² / 18 … 16 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.5 … 1.5 mm² / 18 … 16 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.5 mm² / 18 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection data - Connection 2
| Connection type | Internal 2 |
|---|---|
| Connection technology | PUSH WIRE® |
| Number of connection points | 1 |
| Actuation type | Push-in |
| Solid conductor | 0.5 … 2.5 mm² / 18 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 1 mm² / 18 … 14 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.5 … 1.5 mm² / 18 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection data - Connection 3
| Connection type | Internal 3 |
|---|---|
| Connection technology | PUSH WIRE® |
| Number of connection points | 1 |
| Actuation type | Push-in |
| Solid conductor | 0.5 … 1.5 mm² / 18 … 16 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75 mm² / 18 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.5 … 1 mm² / 18 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection data - Connection 4
| Connection type | Internal 4 |
|---|---|
| Connection technology | PUSH WIRE® |
| Number of connection points | 1 |
| Actuation type | Push-in |
| Solid conductor | 0.5 … 0.75 mm² / 18 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data

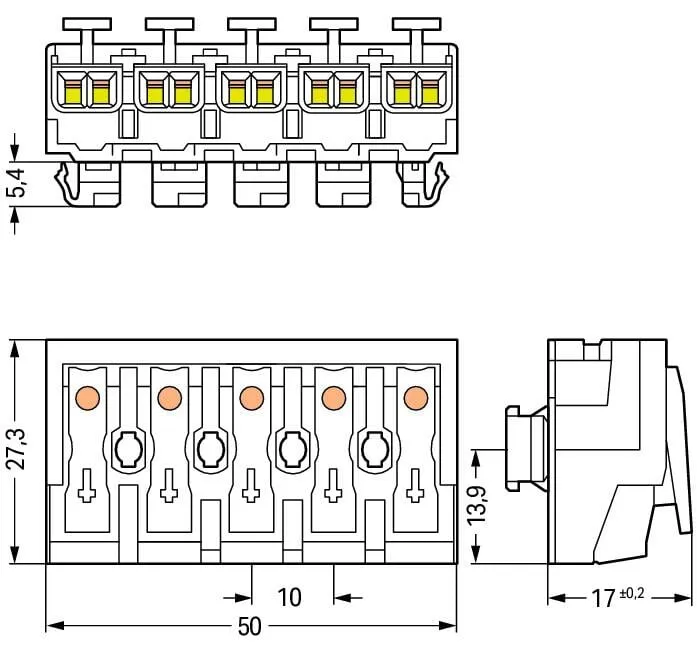

| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Height | 22.4 mm / 0.882 inches |
| Height from the surface | 17 mm / 0.669 inches |
| Depth | 27.3 mm / 1.075 inches |
Mechanical data
| Technology | Linect |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Material group | IIIa |
| Insulation material (main housing) | Polycarbonate (PC) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Weight | 16.2 g |
Environmental requirements
| Temperature stability | 120 °C |
|---|---|
| T marking | T85 |
Commercial data
| PU (SPU) | 250 pcs |
|---|---|
| Packaging type | Foil |
| Country of origin | CH |
| GTIN | 4055143279123 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC001284 |
| ETIM 10.0 | EC001284 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
|---|---|
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 2e2e393d-6c3f-424b-a089-721e1514b7ec |
| SCIP notification number (Belgium) | ad01d40a-894d-4586-b184-baece1541330 |
| SCIP notification number (Bulgaria) | ed1aeb15-40e4-423c-a1ee-b97cf7ce8ad0 |
| SCIP notification number (Czech Republic) | b875aa6e-34d4-426e-9459-663d240aadf2 |
| SCIP notification number (Denmark) | 72c0def0-4206-402d-aabf-c838d973c823 |
| SCIP notification number (Finland) | 1324d6ab-fc0b-4743-8c97-0fcceed5a250 |
| SCIP notification number (France) | 7577c8d8-e6b2-485b-a013-8d63d75fe4b8 |
| SCIP notification number (Germany) | 90eaa4e7-cda8-4c56-a7ed-924e7d8f81f0 |
| SCIP notification number (Hungary) | 3a4c9d2f-b970-4b6e-be69-cf66b0ba92f8 |
| SCIP notification number (Italy) | 3eb4df08-f12c-43a1-bdea-c8bd31aedcd4 |
| SCIP notification number (Netherlands) | ce8fc4c6-3b68-47be-848f-6a7cc3ee1b37 |
| SCIP notification number (Poland) | 445849d0-2126-4af4-94fd-53f84eb6a5d9 |
| SCIP notification number (Romania) | 2c9e8914-bd07-41aa-8c91-2276a3ccc532 |
| SCIP notification number (Sweden) | 1c86b460-669e-4be1-848c-04a7fa0b276a |
Other
| Technology | Linect |
|---|
