Wago 294-8093/3025-000

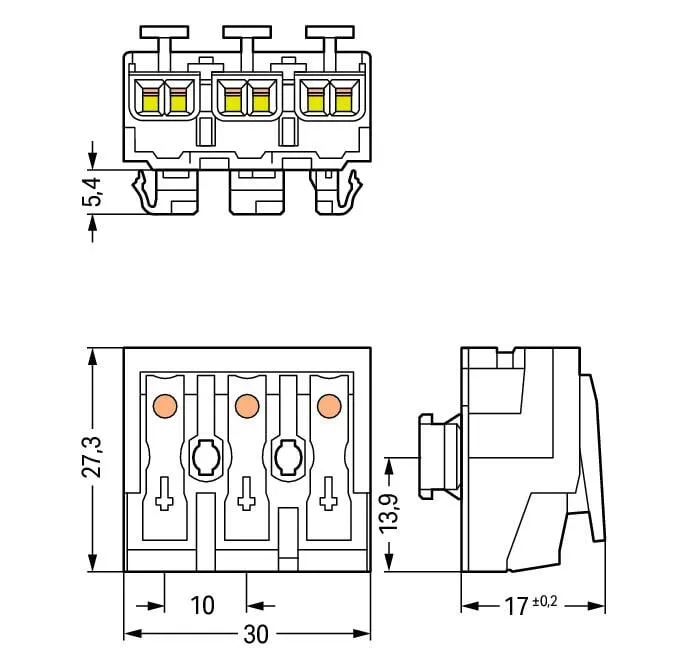

Field-wiring terminal block with linect^®, 294 Series, with 10 mm pin spacingField-wiring terminal block with linect^® (item number 294-8093/3025-000) simplifies electrical installations. Strip lengths must be between 8 and 9 mm  when connecting conductors to field-wiring terminal block with linect^®. This product features four conductor terminals and utilizes Push-in CAGE CLAMP® and PUSH WIRE®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. Our PUSH WIRE® connection is the quick and simple method for connecting solid conductors. The dimensions are (30 x 22.4 x 27.3) mm (width x height x depth). Depending on the conductor type, field-wiring terminal block with linect^® is suitable for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on one side and for conductor cross sections from 0.5 mm² to 2.5 mm² on the other side as well as conductor cross sections from 0.5 mm² to 1.5 mm² and from 0.5 mm² to 0.75 mm².The contact surface is coated with tin.
