Wago 294-8024

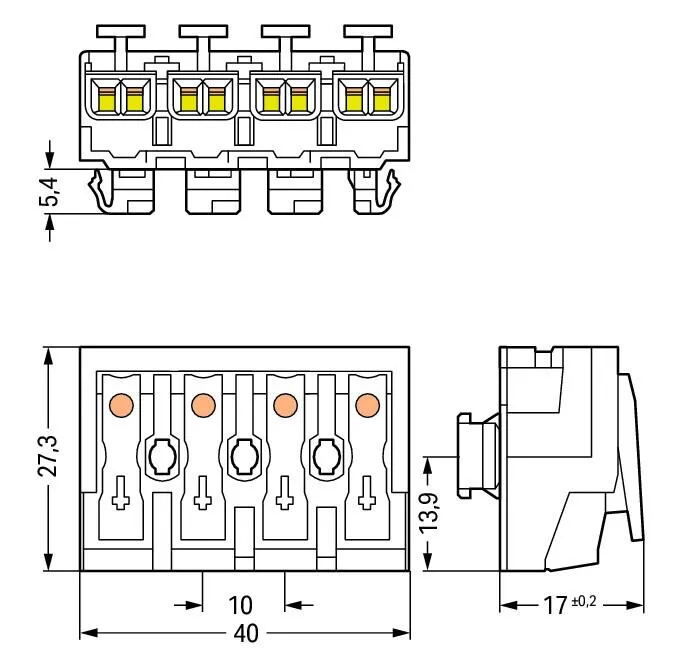

Field-wiring terminal block with linect^®, 294 Series, push-buttonOur field-wiring terminal block with linect^® (item number 294-8024) is designed for seamless electrical installations. Ensure that the strip lengths are between 8 and 9 mm  when connecting conductors to field-wiring terminal block with linect^®. Featuring four conductor terminals along with Push-in CAGE CLAMP® as well as PUSH WIRE®, this connector outperforms the competition. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be inserted without the need for tools—all thanks to its pluggable design. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing you to clamp the conductor in place more quickly and easily. The dimensions are (40 x 22.4 x 27.3) mm (width x height x depth). Depending on the type of conductor, field-wiring terminal block with linect^® is ideal for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on one side and for conductor cross sections from 0.5 mm² to 2.5 mm² on the other side as well as conductor cross sections from 0.5 mm² to 1.5 mm² and from 0.5 mm² to 0.75 mm².Tin is used for coating the contact surfaces.
