Wago 289-671

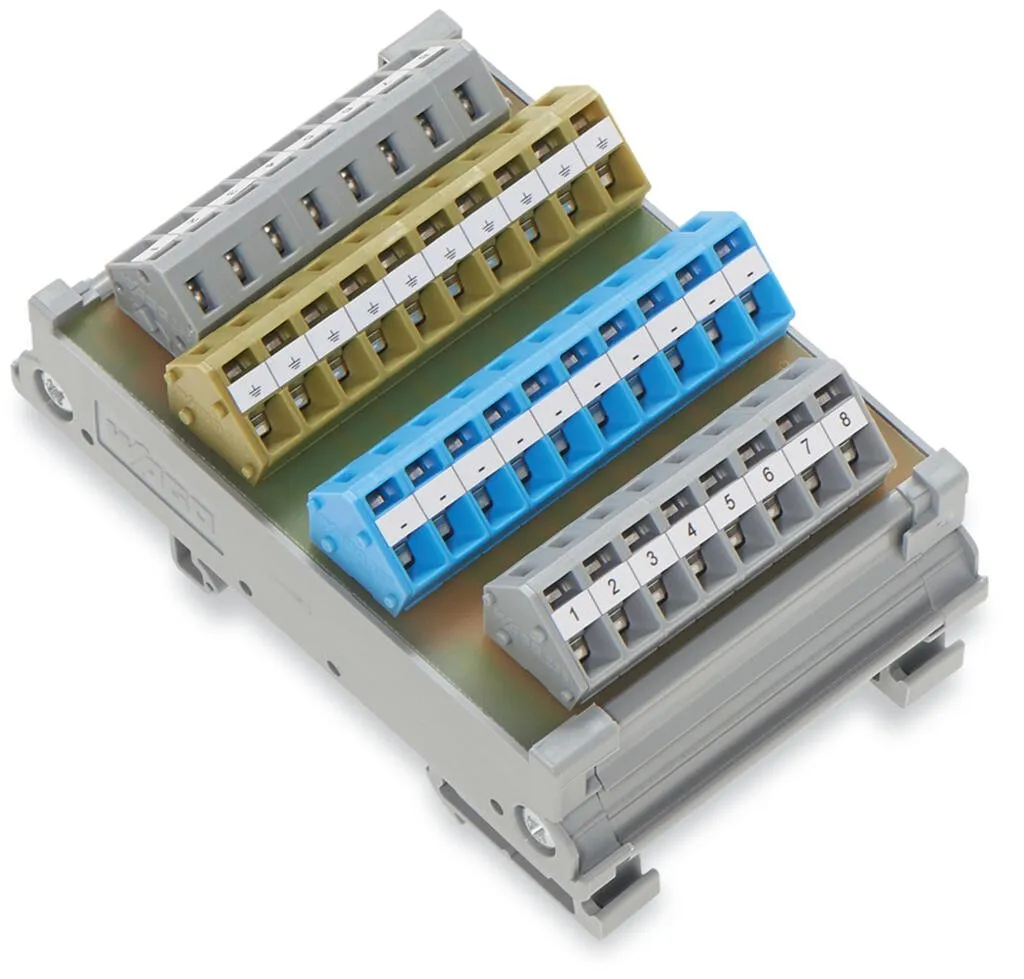

Sensor/actuator module; 8 channels digital output; 2-wire connection; with functional ground; in mounting carrier; 2,50 mm² 289-671
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Sensor/actuator module; 8 channels digital output; 2-wire connection; with functional ground; in mounting carrier; 2,50 mm² 289-671
Specification
Electrical data
| Inputs/outputs | 8-channel digital output |
|---|---|
| Circuit type | 2-wire connection |
| Operating voltage | ≤ 100 VAC; ≤ 125 VDC |
| Total current | 8 A |
| Specialty functions | With functional ground, with functional ground |
Safety and protection
| Rated voltage | 100 V |
|---|---|
| Rated impulse withstand voltage | 1.5 kV |
| Pollution degree | 2 |
| Protection type | IP20 |
Connection data - Connection 1
| Pluggable connector | WAGO 236 Series |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 56 mm / 2.205 inches |
|---|---|
| Height | 85 mm / 3.346 inches |
| Depth from upper-edge of DIN-rail | 34 mm / 1.339 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | Mounting carrier |
Material data
| Fire load | 0.729 MJ |
|---|---|
| Weight | 70.8 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | ≤ 85 % (non-condensing) |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 5 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454193348 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121521 |
|---|---|
| eCl@ss 10.0 | 27-14-11-52 |
| eCl@ss 9.0 | 27-14-11-52 |
| ETIM 9.0 | EC002780 |
| ETIM 10.0 | EC002780 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
