Wago 289-547

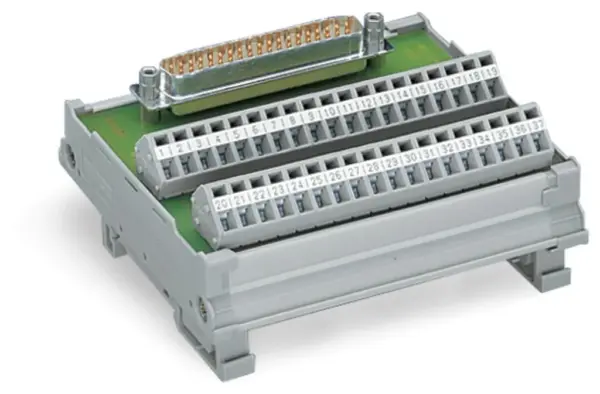

Interface module; with solder pin; Male connector; 25-pole; Mating connector with solder connection; Vertical mounting; PCB terminal blocks, double-row; in mounting carrier; 2,50 mm² 289-547
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Interface module; with solder pin; Male connector; 25-pole; Mating connector with solder connection; Vertical mounting; PCB terminal blocks, double-row; in mounting carrier; 2,50 mm² 289-547
Specification
Electrical data
| Operating voltage | ≤ 125 VAC/VDC |
|---|---|
| Nominal current | 2 A |
| Contact resistance (max.) | 30 mΩ |
Safety and protection
| Rated voltage | 125 V |
|---|---|
| Rated impulse withstand voltage | 0.8 kV |
| Pollution degree | 2 |
| Protection type | IP20 |
| Insulation type | Basic insulation |
Connection data
| Performance level | 2 / 200 mating cycles |
|---|---|
| Strain relief | UNC 4-40 stud bolt |
Connection data - Connection 1
| Pluggable connector | D-subminiature male connector |
|---|---|
| Pole number 1 | 25 |
| Connection type | System |
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Mating direction | vertical |
Connection data - Connection 2
| Design | PCB terminal blocks (double-row) |
|---|---|
| Pole number | 25 |
| Connection type | Field |
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 72 mm / 2.835 inches |
|---|---|
| Height | 85 mm / 3.346 inches |
| Depth from upper-edge of DIN-rail | 34 mm / 1.339 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | Mounting carrier |
Material data
| Contact material (connector) | Au over Ni |
|---|---|
| Fire load | 0.86 MJ |
| Weight | 80 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | ≤ 85 % (non-condensing) |
Standards and specifications
| Standards/specifications | EN 61010-2-201 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 4 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454362171 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-14-11-52 |
| eCl@ss 9.0 | 27-14-11-52 |
| ETIM 9.0 | EC002780 |
| ETIM 10.0 | EC002780 |
| ECCN | NO US CLASSIFICATION |
