Wago 289-178

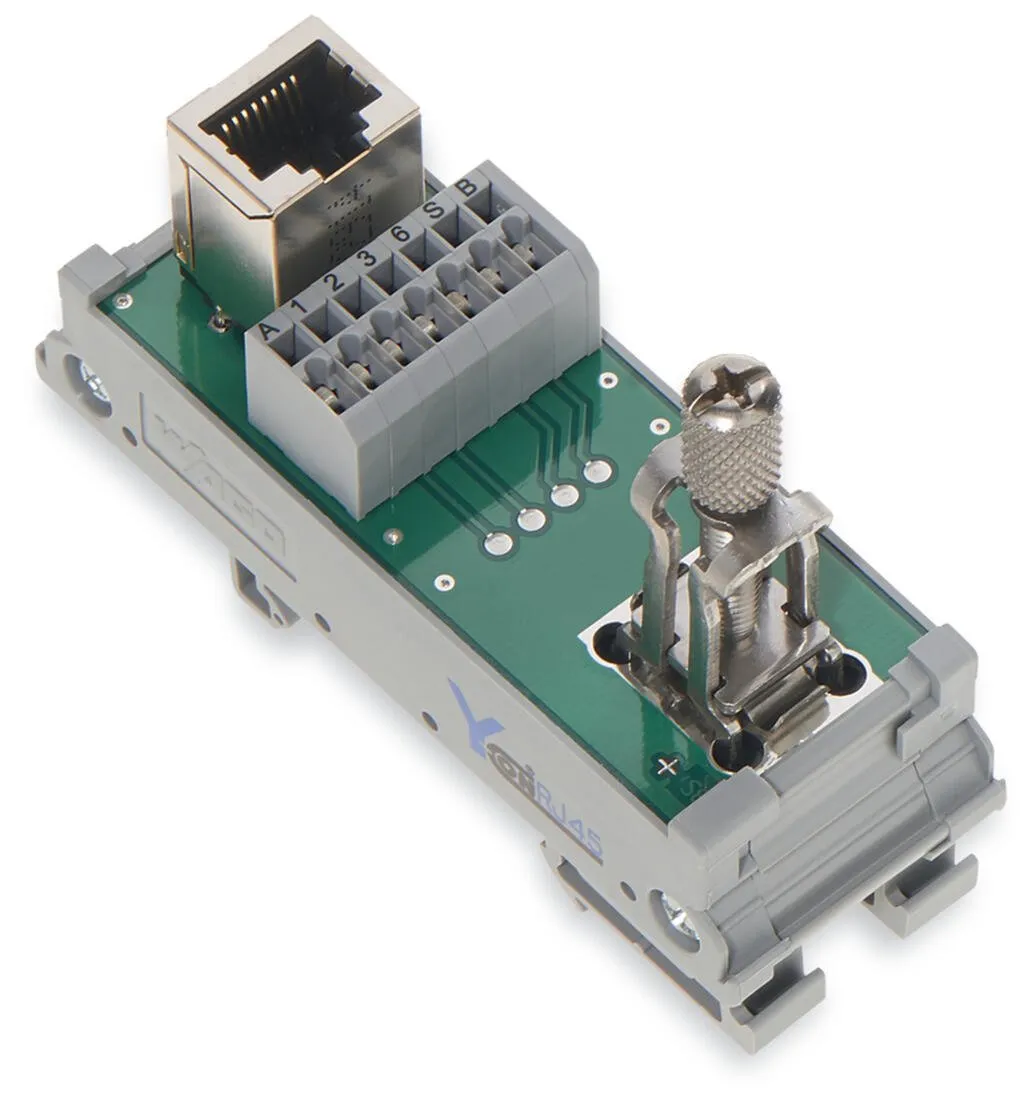

Interface module; RJ-45; with power jumper contacts; PCB terminal blocks; Cat. 5; in mounting carrier; with shield connection; with shield clamping saddle; 1,50 mm² 289-178
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Interface module; RJ-45; with power jumper contacts; PCB terminal blocks; Cat. 5; in mounting carrier; with shield connection; with shield clamping saddle; 1,50 mm² 289-178
Specification
Electrical data
| Operating voltage | ≤ 35 VAC; ≤ 50 VDC |
|---|---|
| Nominal current | 2.1 A |
| Insulation resistance | ≥ 500 MΩ |
| Specialty functions | With power jumper contacts, with shield connection, With shield clamping saddle |
Safety and protection
| Dielectric strength (contact/contact) (AC, 1 min) | 1 kV<sub>eff</sub> |
|---|
Connection data
| Mating cycles | 1,000 |
|---|---|
| Transmission length (max.) | 100 m |
| Connection cable | Cat. 5 (min.) |
| WAGO shield clamping saddle | 11 mm wide; cable diameter up to 8 mm |
Connection data - Connection 1

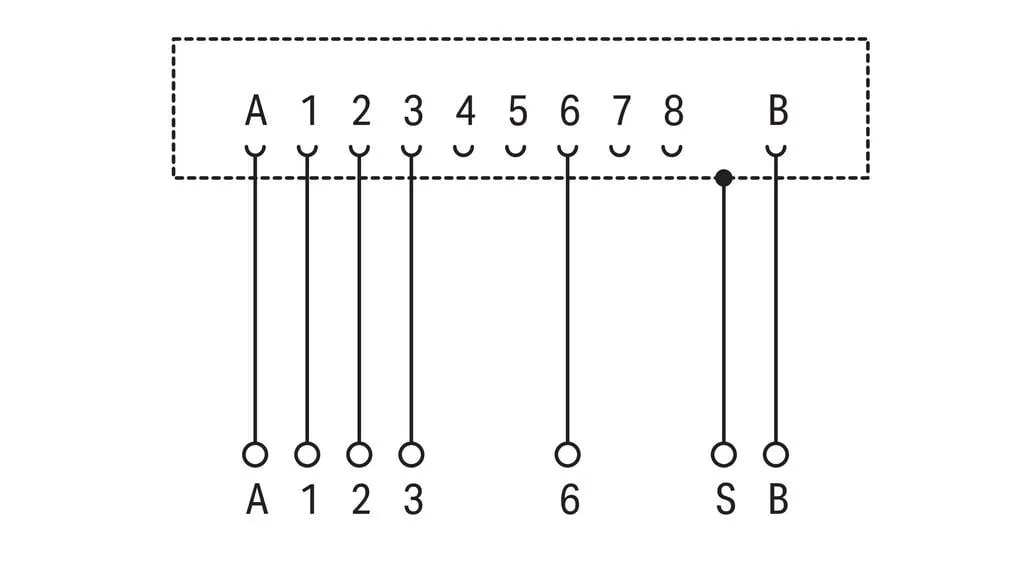

| Pluggable connector | Shielded RJ-45; with two additional power jumper contacts |
|---|---|
| Pole number 1 | 10 |
| Connection type | System |
Connection data - Connection 2
| Design | PCB terminal blocks |
|---|---|
| Pole number | 7 |
| Connection type | System |
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 739 Series |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 30 mm / 1.181 inches |
|---|---|
| Height | 85 mm / 3.346 inches |
| Depth from upper-edge of DIN-rail | 67 mm / 2.638 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | Mounting carrier |
| Mating cycles | 1,000 |
Material data
| Fire load | 0.541 MJ |
|---|---|
| Weight | 51.7 g |
Environmental requirements
| Ambient temperature (operation) | -40 … +85 °C (Actuation: -35 … +85 °C) |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | ≤ 85 % (non-condensing) |
Standards and specifications
| Standards/specifications | DNV |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 10 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454326142 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 19-17-90-01 |
| eCl@ss 9.0 | 19-17-90-01 |
| ETIM 9.0 | EC001121 |
| ETIM 10.0 | EC001121 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
