Wago 288-600

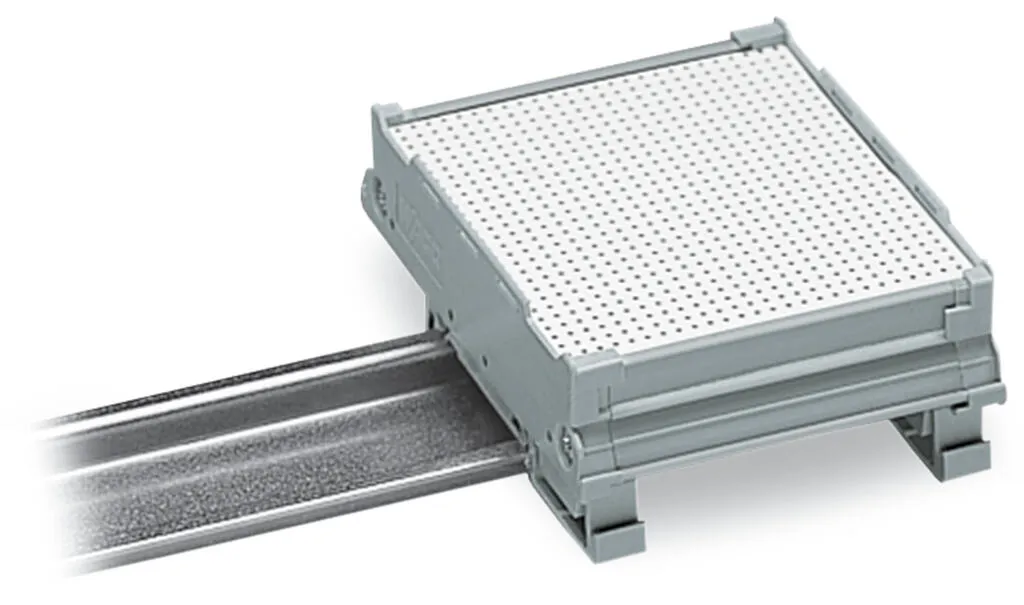

DIN-rail mount PCB carrier, size 1 – carrier base, size 1; 1 m long
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DIN-rail mount PCB carrier, size 1 – carrier base, size 1; 1 m long
Specification
Note

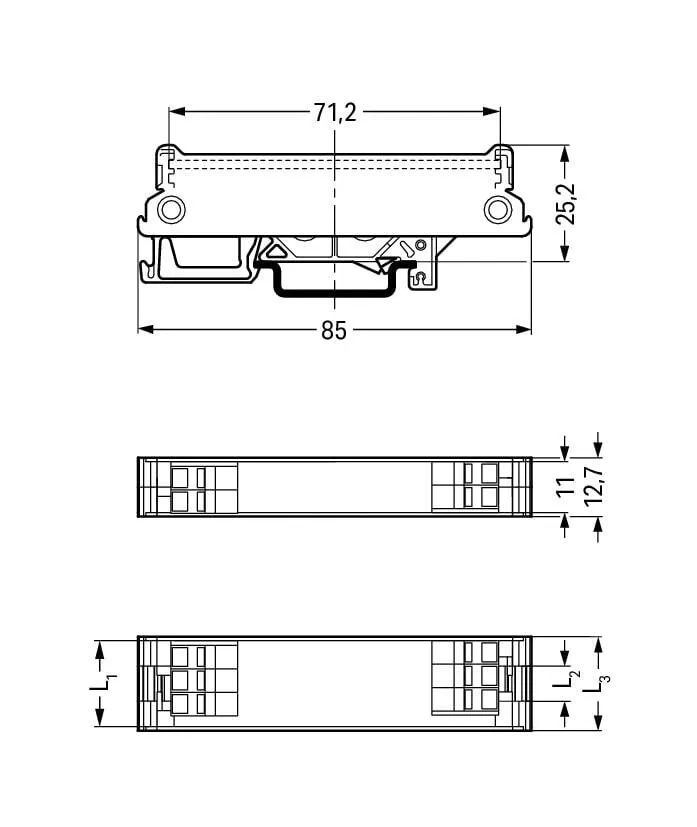

| Note | Length calculation for a complete mounting carrier:· PCB length: L1· Base length: L2 = L1 - 11 mm· Mounting carrier length: L3 = L1 + 2 mm· Lateral cover, size 1, 6.35 mm thick· Free space between base and PCB (when using upper PCB groove): 5 mm· PCB tolerances: 1.5 mm ± 0.2 mm (thickness), ± 0.2 mm (length/width), −0.1/+0.3 for milling contours |
|---|
Physical data
| Width | 1000 mm / 39.37 inches |
|---|---|
| Height | 71.2 mm / 2.803 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | gray |
|---|---|
| Housing material | PC/ABS |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4017332639484 |
| Customs tariff number | 39169010900 |
Product Classification
| UNSPSC | 39,121,321 |
|---|---|
| eCl@ss 10.0 | 27-18-27-02 |
| eCl@ss 9.0 | 27-18-27-02 |
| ETIM 9.0 | EC001031 |
| ETIM 10.0 | EC001031 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
