Wago 286-368
Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Red status indicator; Module width: 10 mm; gray 286-368
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Red status indicator; Module width: 10 mm; gray 286-368
Specification
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | ±10 % |
| Nominal input current at U<sub>N</sub> | 21 mA |

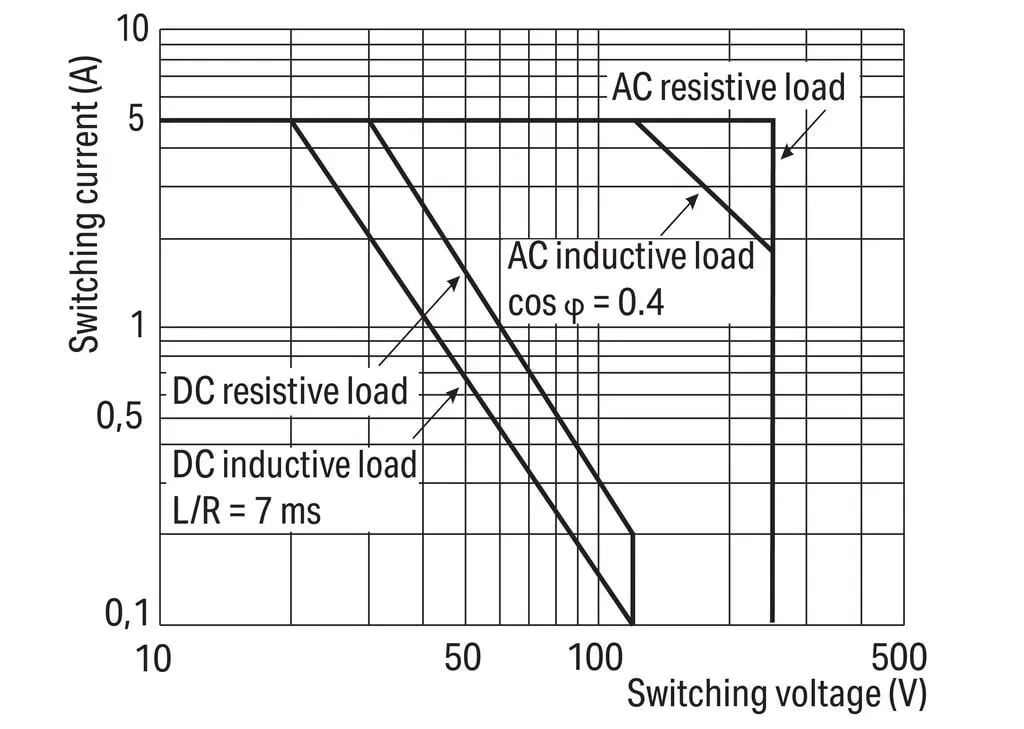

Technical data - Load circuit
| Number of break/switch-off contacts | 1 |
|---|---|
| Contact material (relay) | AgNi |
| Limiting continuous current | 5 A |
| Switching Voltage, Max. | 250 VAC |
| Switching power (resistive) max. | AC 1250 VA |
| Pull-in time (typ.) | 10 ms |
| Drop-out time (typ.) | 4 ms |
| Bounce time (typ.) | 3 ms |
| Mechanical life | 5 x 10⁶ switching operations |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 250 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 4 kVrms |
| Protection type | IP20 |

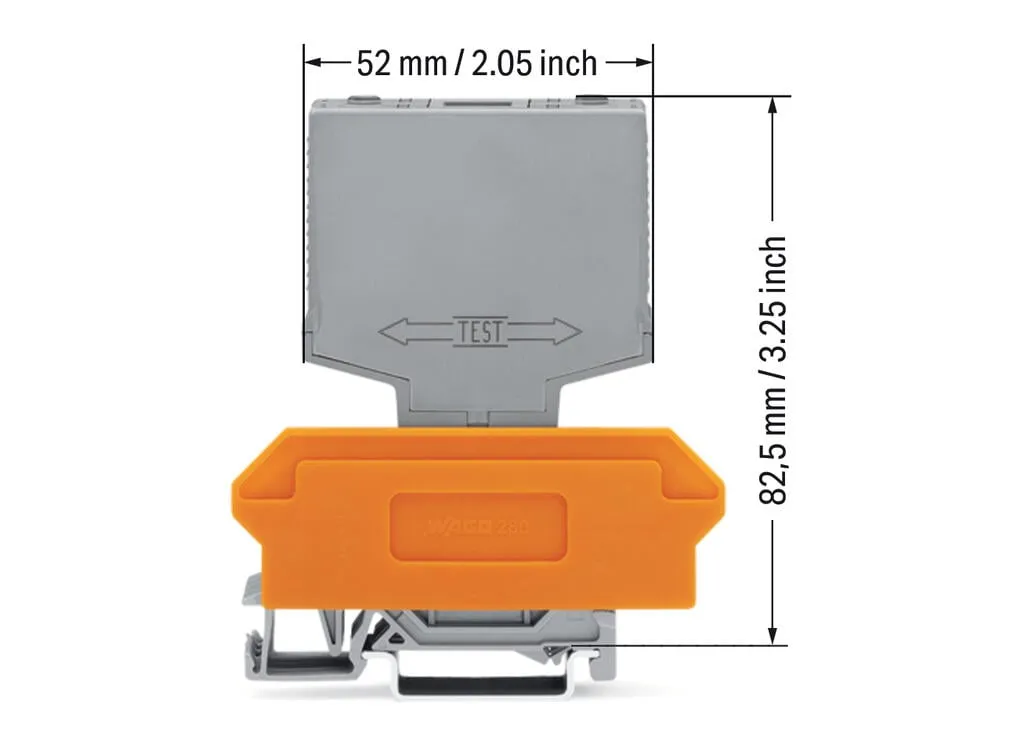

Physical data
| Width | 10 mm / 0.394 inches |
|---|---|
| Height | 52 mm / 2.047 inches |
| Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
| Note (dimensions) | Depth including carrier terminal block |
Mechanical data
| Mounting type | Pluggable module for receptacle terminal blocks |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.276 MJ |
| Weight | 19.1 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +40 °C |
|---|---|
| Ambient temperature (storage) | -25 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Relative humidity | 5 … 85 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 60664-1 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 25 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454384036 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 36497ae2-55f1-4340-a81f-1e3485ef3972 |
| SCIP notification number (Belgium) | b642b671-8ef5-4906-a7c9-2f5e80fe3660 |
| SCIP notification number (Bulgaria) | c91ef76f-81f8-4e0e-9eec-3ad9927ebe53 |
| SCIP notification number (Czech Republic) | 60779511-3574-4177-a2cf-6420095228d6 |
| SCIP notification number (Denmark) | 35baaaa6-709f-4bed-b488-23c9643ba34c |
| SCIP notification number (Finland) | 6d55146d-e74d-43c3-b45a-f2ff48aee3dd |
| SCIP notification number (France) | 32d9add0-26d8-401c-a183-e3085d344995 |
| SCIP notification number (Germany) | a778b3e8-9df1-4ab0-91fb-a1ba9f4ae9a0 |
| SCIP notification number (Hungary) | f5ec93a7-19f8-40b6-85d7-6461ddd04598 |
| SCIP notification number (Italy) | 66b4be46-be73-4cfd-a2a9-98c21d72800c |
| SCIP notification number (Netherlands) | 4af6202b-3d13-4512-9868-8ebe884382b1 |
| SCIP notification number (Poland) | 578745b3-9a9c-4d14-8e14-31ed5af9dd23 |
| SCIP notification number (Romania) | dbbe6f5e-f2e5-4ca1-a316-1c294a64b9fc |
| SCIP notification number (Sweden) | 924ac231-e702-4595-bed8-287a6eb8202a |
