Wago 286-307/004-000
Relay module; Nominal input voltage: 110 VDC; 1 changeover contact; Limiting continuous current: 3 A; Railway; Red status indicator; Module width: 15 mm; gray 286-307/004-000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 110 VDC; 1 changeover contact; Limiting continuous current: 3 A; Railway; Red status indicator; Module width: 15 mm; gray 286-307/004-000
Specification
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 110 VDC |
|---|---|
| Input voltage range | -30 … +25 % |
| Nominal input current at U<sub>N</sub> | 4 mA |
Technical data - Load circuit
| Number of changeover/switchover contacts | 1 |
|---|---|
| Contact material (relay) | AgNi 0.15 |
| Limiting continuous current | 3 A |
| Switching Voltage, Max. | 250 VAC |
| Switching power (resistive) max. | AC 750 VA |
| Pull-in time (typ.) | 8 ms |
| Drop-out time (typ.) | 6 ms |
| Bounce time (typ.) | 4 ms |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 3 kVrms |
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Protection type | IP20 |

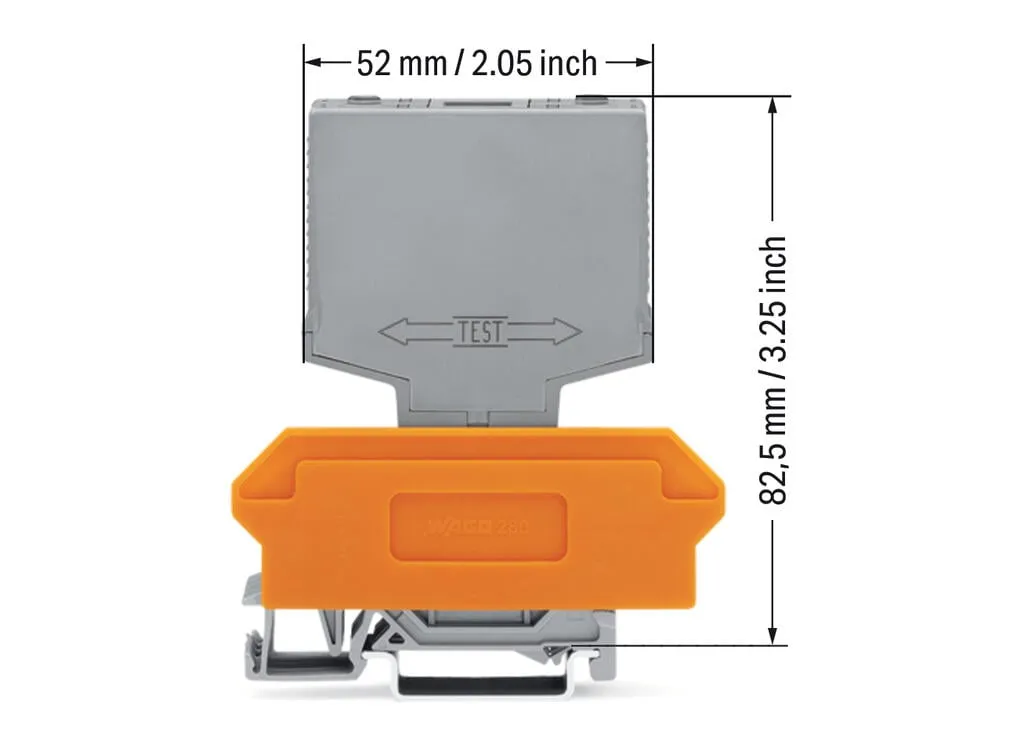

Physical data
| Width | 15 mm / 0.591 inches |
|---|---|
| Height | 52 mm / 2.047 inches |
| Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
| Note (dimensions) | Depth including carrier terminal block |
Mechanical data
| Mounting type | Pluggable module for receptacle terminal blocks |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.324 MJ |
| Weight | 23.1 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -25 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Relative humidity | 5 … 85 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 15 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454709105 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 81828017-49df-4293-a656-88ad43efb054 |
| SCIP notification number (Belgium) | 5ddc4fe6-0673-499a-8e00-c8dfe3e61a8d |
| SCIP notification number (Bulgaria) | 08b6913c-7e63-49aa-868c-5905e8b4cd05 |
| SCIP notification number (Czech Republic) | 6fc70c82-1fab-4a89-8148-b9a659039b3a |
| SCIP notification number (Denmark) | af3d9c6f-763c-4fb5-8461-e5edef4dae6d |
| SCIP notification number (Finland) | 910b84da-0a64-4266-a73b-82f0562b16e7 |
| SCIP notification number (France) | 8e409d76-c604-4f79-8e66-0310246cb279 |
| SCIP notification number (Germany) | 006dadc3-90a1-45d5-b130-4c5dc5632ff3 |
| SCIP notification number (Hungary) | 7c1acc02-2e72-4027-bf12-0cafff02106e |
| SCIP notification number (Italy) | e333515a-0f47-4cca-bb4c-785059621f90 |
| SCIP notification number (Netherlands) | 0c5e03ed-27b1-489b-9876-f99ccce5af3c |
| SCIP notification number (Poland) | 6df00da0-9c65-403f-82b3-92d439f1046f |
| SCIP notification number (Romania) | cb548765-5811-44dc-9de0-25cb0a5d1a0e |
| SCIP notification number (Sweden) | 3418933c-d55f-4ac5-b907-4b47107f3f03 |
