Wago 2854-302/000-021

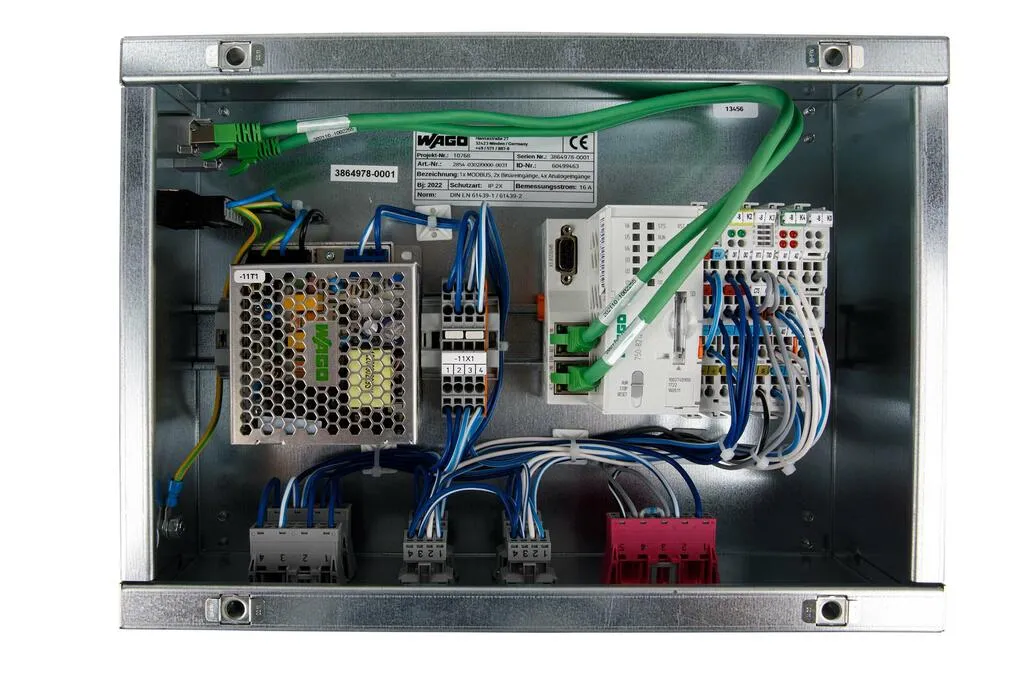

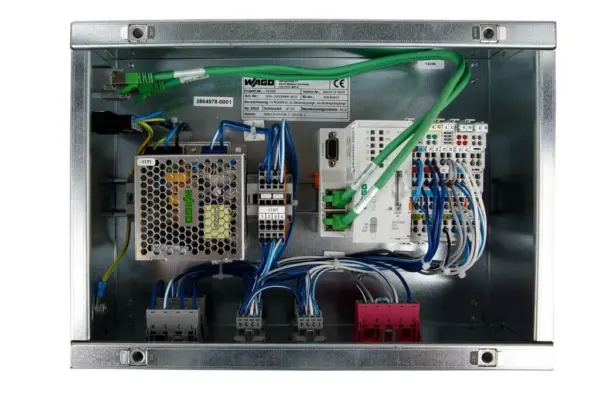

System Distribution Box for Recording and Evaluating Weather Sensors WAGO Weather Station makes all relevant sensor data, such as temperature, precipitation, wind speed and light intensity, available…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System Distribution Box for Recording and Evaluating Weather Sensors WAGO Weather Station makes all relevant sensor data, such as temperature, precipitation, wind speed and light intensity, available for further processing and display in a visualization or a management system. Weather sensors from different manufacturers can be recorded on digital inputs and analog inputs and via RS-485. FunctionDigital sensors: reserve, central sun protection command UP via 2-channel digital input (750-400) General Information Power supply (1-phase), 1st phase: controllerNetwork (Ethernet) 2 x RJ-45 (Cat.6)Controller PFC200 (750-8212)Interface for operation RS-485 interface (750-652) Supply voltagefor controller/field devices: 24 VDC / 2.5 A via switched-mode power supply (787-1712) Power loss (components): 9.6 W
Specification
Physical data
| Width | 350 mm / 13.7795 inches |
|---|---|
| Height | 250 mm / 9.84252 inches |
| Depth | 100 mm / 3.93701 inches |
Mechanical data
| Weight | 13149.2 g |
|---|
Environmental requirements
| Fire load | 427.654 MJ |
|---|
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966228779 |
| Customs tariff number | 85371091990 |
Product Classification
| UNSPSC | 41,111,970 |
|---|---|
| ETIM 9.0 | EC002581 |
| ETIM 10.0 | EC002581 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 693-98-1, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methylimidazole, Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | b74bda6f-575f-45bf-b2b5-971c2e7f8d15 |
