Wago 285-637/999-950

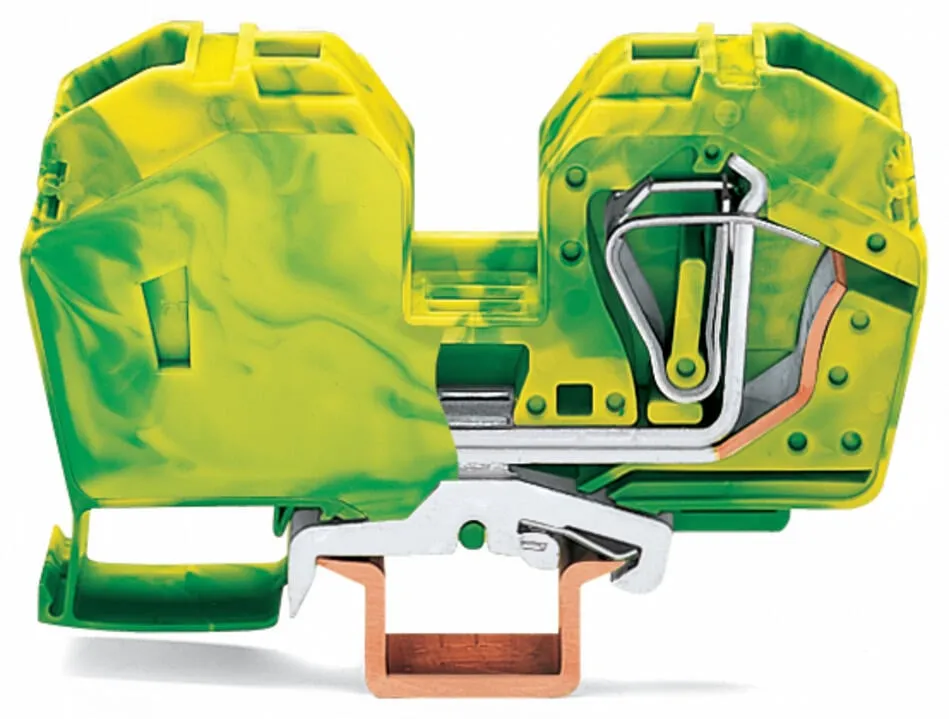

Ground terminal block, 285 Series, CAGE CLAMP®This ground terminal block (item number 285-637/999-950) is designed for easy and secure connections. Conductors should only be connected to this ground t…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 285 Series, CAGE CLAMP®This ground terminal block (item number 285-637/999-950) is designed for easy and secure connections. Conductors should only be connected to this ground terminal block if their strip length is 23 mm . Our ground terminal blocks create a direct connection between the mounting rail and the electrical conductors thanks to an integrated mounting foot. This connection ensures both electrical and mechanical stability between the conductors and the mounting adapter. Featuring conductor terminals along with CAGE CLAMP®, this product delivers reliable performance. Our celebrated universal connection known as CAGE CLAMP® is the industry standard when it comes to connection technology and electrical interconnections. Depending on the type of conductor, this ground terminal block is designed for conductor cross sections ranging from 6 mm² to 25 mm².An operating tool is used to operate this through rail-mount terminal block.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - Ex information
| Reference to hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 25 mm² |
| Solid conductor | 6 … 25 mm² / 10 … 2 AWG |
| Fine-stranded conductor | 6 … 25 mm² / 10 … 4 AWG |
| Strip length | 23 mm / 0.91 inches |
| Wiring direction | Front-entry wiring |
Physical data

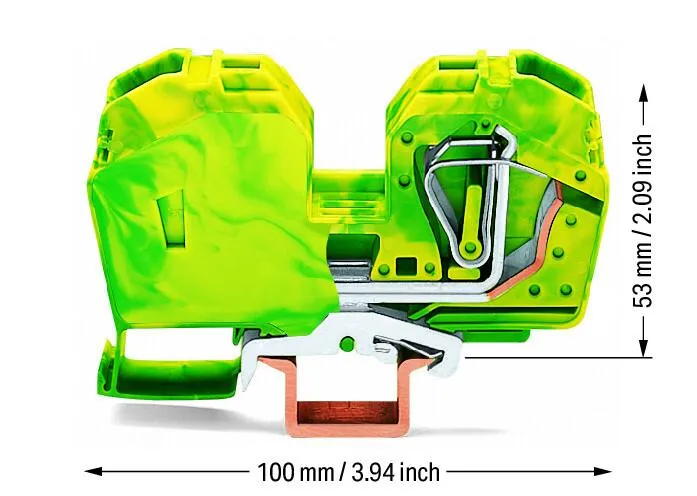

| Width | 16 mm / 0.63 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth from upper-edge of DIN-rail | 53 mm / 2.087 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 1.044 MJ |
| Weight | 105 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 15 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454218775 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | c08399cf-be5c-4a55-9c2c-0fafa7f593d2 |
| SCIP notification number (Belgium) | 74e141e7-9b4a-48d5-a698-633a70dd5288 |
| SCIP notification number (Bulgaria) | 89a3445b-0bd6-41b8-9bd4-8bc70c97a17a |
| SCIP notification number (Czech Republic) | b4fbf4c5-7fb5-4761-b698-d06f4e782012 |
| SCIP notification number (Denmark) | 6f9561f9-6ef2-4f76-9127-fd0018015ba8 |
| SCIP notification number (Finland) | 75d15c5b-2365-40fa-a662-eb2cef3f09d5 |
| SCIP notification number (France) | f3e0bd2c-2414-4b31-98d8-85f8b7409c2d |
| SCIP notification number (Germany) | 84d8f519-c161-4398-ba04-eb18530e5930 |
| SCIP notification number (Hungary) | f9fc02c7-fc5d-4aaa-8ac9-af0458cee06b |
| SCIP notification number (Italy) | 6f9dbd1d-4d18-4dd5-a5a5-960104c5ca6f |
| SCIP notification number (Netherlands) | b285b8ed-8600-458e-bfd9-45df05fb1561 |
| SCIP notification number (Poland) | 2fdbe79c-0e9d-4ee5-b590-eb3448638027 |
| SCIP notification number (Romania) | 30225c63-9217-4257-a8f3-4e3a68444532 |
| SCIP notification number (Sweden) | fb34af11-d48a-42d9-b422-7a9760bc4701 |
