Wago 285-607

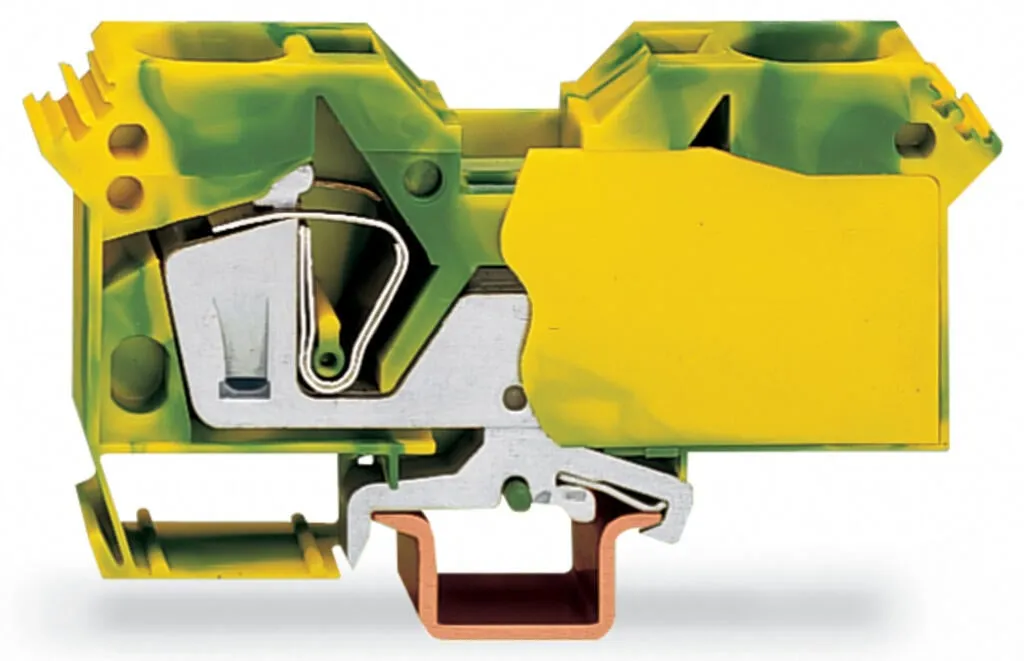

Ground terminal block, 285 Series, green-yellowOur ground terminal block (item number 285-607) makes connections quick and easy. Conductors can only be connected to this ground terminal block if their…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 285 Series, green-yellowOur ground terminal block (item number 285-607) makes connections quick and easy. Conductors can only be connected to this ground terminal block if their strip length is 23 mm . Ground terminal blocks connect directly to the mounting rail via an integrated contact foot. This creates an electrical and mechanical connection between the electrical conductors and the mounting adapter. This product features conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. Depending on the type of conductor, this ground terminal block is suitable for conductor cross sections ranging from 6 mm² to 35 mm².An operating tool is used to operate this through rail-mount terminal block.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 35 mm² |
| Solid conductor | 6 … 35 mm² / 8 … 2 AWG |
| Strip length | 23 mm / 0.91 inches |
| Wiring direction | Front-entry wiring |

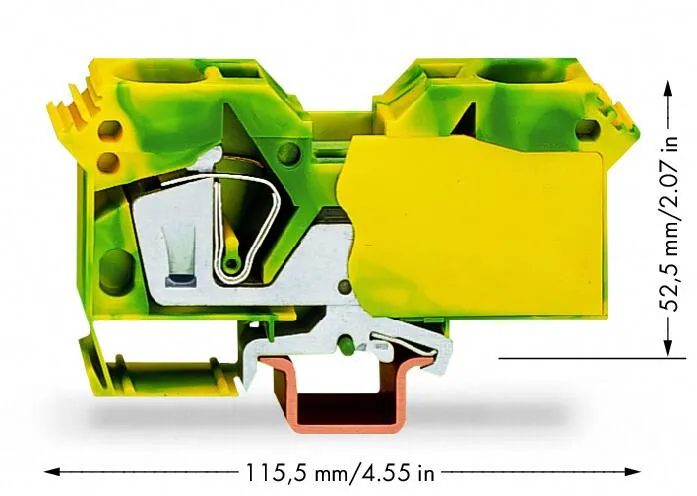

Physical data
| Width | 16 mm / 0.63 inches |
|---|---|
| Height | 115.5 mm / 4.547 inches |
| Depth from upper-edge of DIN-rail | 52.5 mm / 2.067 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 1.165 MJ |
| Weight | 152.3 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 15 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454116101 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | e5944eac-2fca-4a7d-a12e-e2accf7d449b |
| SCIP notification number (Belgium) | 683c0e79-3405-4b8a-a51a-0a25d15bfc76 |
| SCIP notification number (Bulgaria) | c0b0fd45-d926-4e42-a713-91da023a5778 |
| SCIP notification number (Czech Republic) | a75cf4f3-3c9d-4a49-91cd-e705a00e0a39 |
| SCIP notification number (Denmark) | 3ec59c00-4e46-4c85-940e-2d586c190774 |
| SCIP notification number (Finland) | 8547406f-401b-4681-a99d-356c283dce37 |
| SCIP notification number (France) | 25a9e600-83fc-4b7e-a187-a8725e935460 |
| SCIP notification number (Germany) | efa64b14-e7c5-42cd-8e89-717781b9487c |
| SCIP notification number (Hungary) | 6ec83af9-31b7-4006-8766-90021554834b |
| SCIP notification number (Italy) | c1ba2cbd-82ad-4080-9120-c73c7b6c244b |
| SCIP notification number (Netherlands) | f47fe414-599b-4710-b813-def7e7d165cc |
| SCIP notification number (Poland) | 4957e9e6-08b5-46dd-8b31-7dbaaaded3d2 |
| SCIP notification number (Romania) | 33b72bd7-736f-4111-8485-2ef3a35604fe |
| SCIP notification number (Sweden) | 7085483b-3bec-4094-9783-f29cf5199752 |
