Wago 285-607/999-950
Ground terminal block, 285 Series, green-yellowOur ground terminal block (item number 285-607/999-950) is the ideal way to connect conductors quickly and easily. Strip lengths must be 23 mm when conn…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

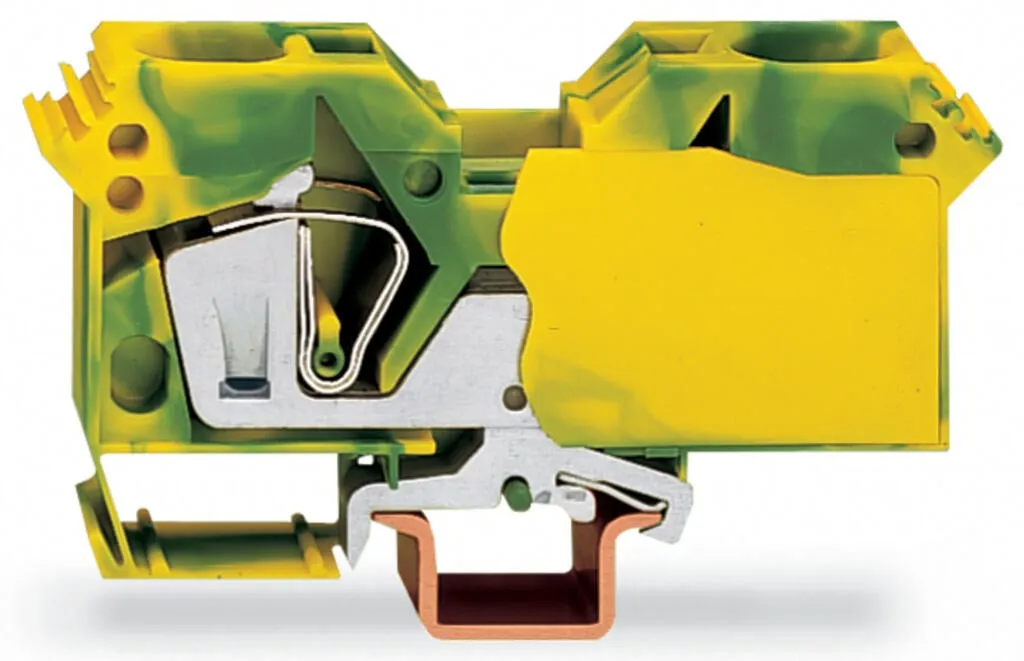

Ground terminal block, 285 Series, green-yellowOur ground terminal block (item number 285-607/999-950) is the ideal way to connect conductors quickly and easily. Strip lengths must be 23 mm when connecting conductors to this ground terminal block. Our ground terminal blocks create a direct connection between the mounting rail and the electrical conductors thanks to an integrated mounting foot. This connection ensures both electrical and mechanical stability between the conductors and the mounting adapter. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This ground terminal block is suitable for conductor cross sections ranging from 6 mm² to 25 mm².An operating tool is used to operate this through rail-mount terminal block.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - Ex information
| Reference to hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 6 … 25 mm² / 8 … 2 AWG |
| Strip length | 23 mm / 0.91 inches |
| Wiring direction | Front-entry wiring |

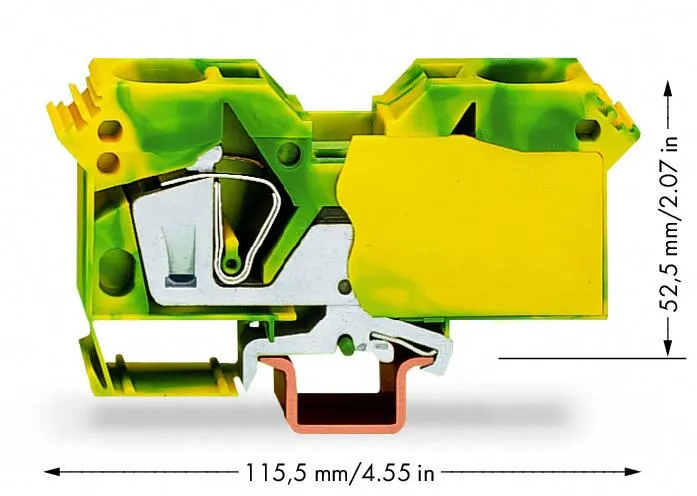

Physical data
| Width | 16 mm / 0.63 inches |
|---|---|
| Height | 115.5 mm / 4.547 inches |
| Depth from upper-edge of DIN-rail | 52.5 mm / 2.067 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 1.165 MJ |
| Weight | 152.3 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 15 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454116132 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | edb447b5-ec5f-4505-965a-c6759a63d3b7 |
| SCIP notification number (Belgium) | 0827f21d-ec9d-4e32-b0c9-56777fce2e87 |
| SCIP notification number (Bulgaria) | 3671dbc9-706f-4cfa-9e6c-9d0d68db8342 |
| SCIP notification number (Czech Republic) | 0dcaf0ae-cb98-4398-b013-5abf8d47dbcb |
| SCIP notification number (Denmark) | 498fb3d5-1784-454d-bb9e-860a863109ce |
| SCIP notification number (Finland) | e49e10c9-2f0a-4fce-8b37-ddb1bb06613a |
| SCIP notification number (France) | de26ffe7-7f5e-4e34-9f66-80483a4c699c |
| SCIP notification number (Germany) | 0ab66977-cc1a-45c3-b6f2-ff58a8c66a61 |
| SCIP notification number (Hungary) | c4a06cd4-d648-49e1-aaf7-407bf692b784 |
| SCIP notification number (Italy) | 6c7ff8bd-0cd3-43e9-8c2e-a5d722c4e057 |
| SCIP notification number (Netherlands) | 2c5bae1e-d3a0-4e4c-bdb3-aa4c192f95b3 |
| SCIP notification number (Poland) | 51e11204-8d53-479b-be88-851b69a85467 |
| SCIP notification number (Romania) | 22c79ce4-bcc6-4276-b3ac-981387fda29b |
| SCIP notification number (Sweden) | 8c919f53-8bb2-4843-9589-9e2016f61ec9 |
