Wago 285-447

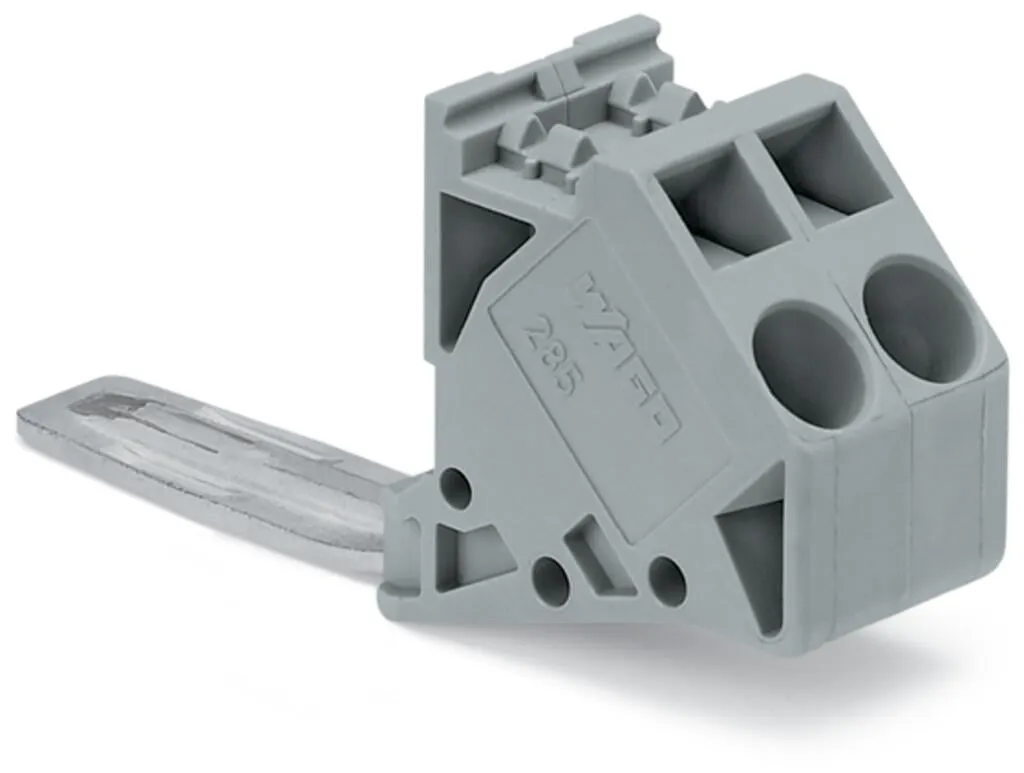

Power tap; for 50 mm² high-current tbs; Module width 16 mm; gray 285-447
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power tap; for 50 mm² high-current tbs; Module width 16 mm; gray 285-447
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 41 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 41 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 30 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 30 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 30 A / 30 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group B) | 600 V |
| Rated current CSA (Use Group B) | 41 A |
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group D) | 41 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 41 A |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 2 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 16 mm / 0.63 inches |
|---|---|
| Module width | 16 mm / 0.63 inches |
Mechanical data
| Design | angled |
|---|---|
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.167 MJ |
| Weight | 13 g |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 5 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4045454549657 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
