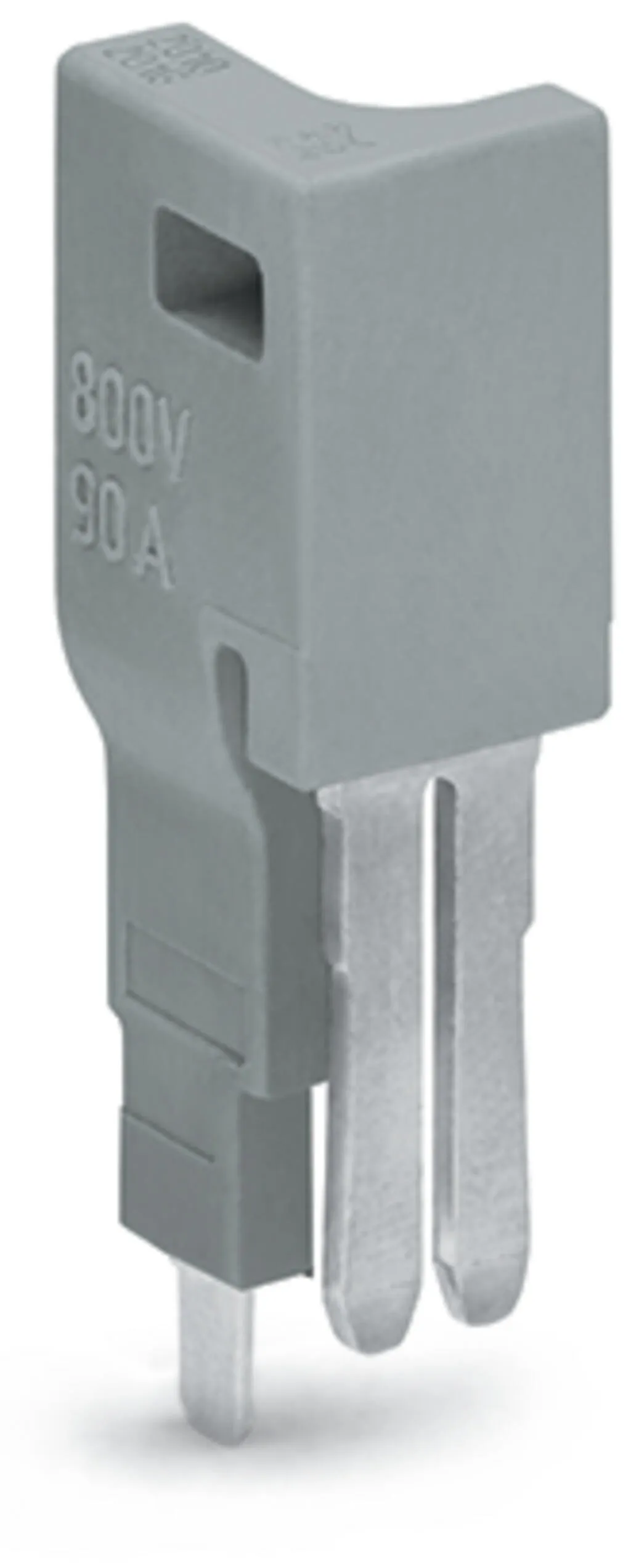

Wago 285-430
Step-down jumper; from 285 (35mm²) to 2016/2010 series; insulated; gray 285-430
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From âĴ20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From âĴ40
-
Warranty 1 year
-
Free 30-Day returns
Description
Step-down jumper; from 285 (35mm²) to 2016/2010 series; insulated; gray 285-430
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 800 V |
|---|---|
| Rated current | 90 A |
Physical data
| Width | 17 mm / 0.669 inches |
|---|---|
| Height | 13.7 mm / 0.539 inches |
| Depth | 49.2 mm / 1.937 inches |
| Jumper assignment | 1-2 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.083 MJ |
| Weight | 12.2 g |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 50 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454910945 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 |
| ETIM 10.0 | EC000489 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
