Wago 282-860

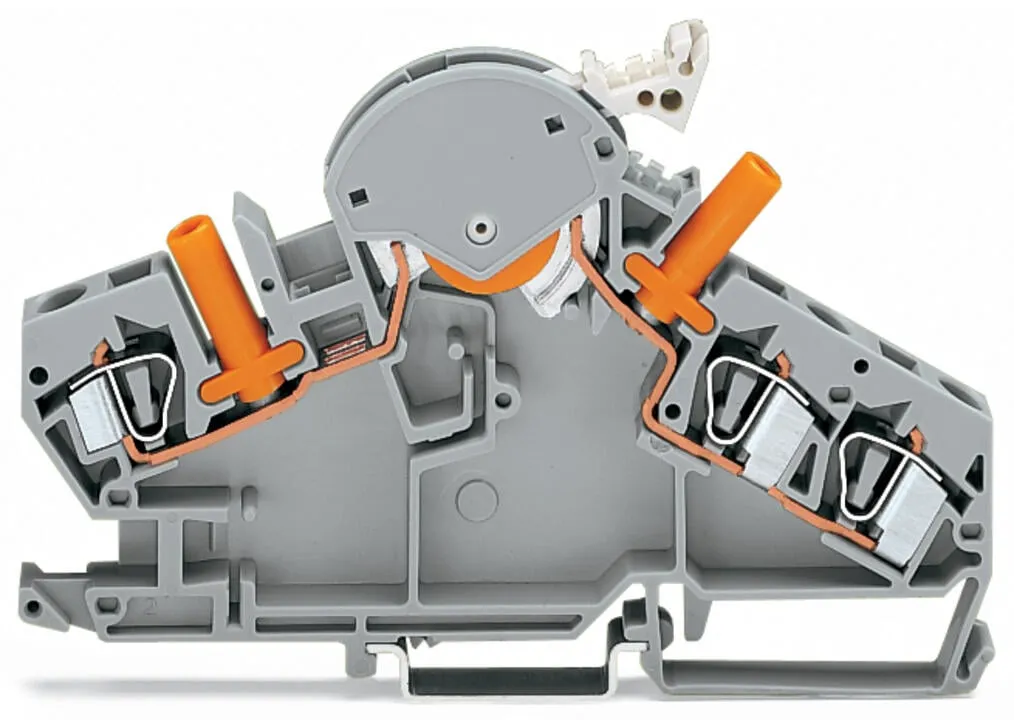

Voltage transformer terminal block, 282 Series, CAGE CLAMP®Convenient electrical installations are guaranteed with this voltage transformer terminal block (item number 282-860). Strip lengths must be…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Voltage transformer terminal block, 282 Series, CAGE CLAMP®Convenient electrical installations are guaranteed with this voltage transformer terminal block (item number 282-860). Strip lengths must be between 12 and 13 mm when connecting conductors to this voltage transformer terminal block. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This voltage transformer terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm².
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 500 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Power Loss
| Power loss, per pole (potential) | 0.702 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 30 A |
| Resistance value for specified, current-dependent power loss | 0.001 Ω |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 2 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Wiring direction | Front-entry wiring |

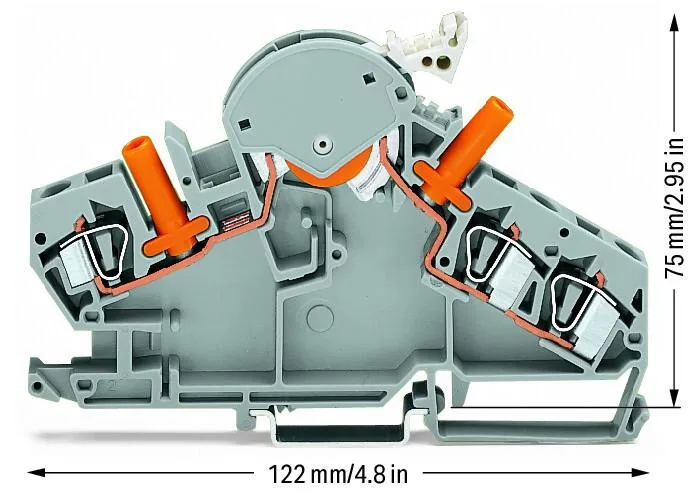

Physical data
| Width | 8 mm / 0.315 inches |
|---|---|
| Height | 122 mm / 4.803 inches |
| Depth from upper-edge of DIN-rail | 75 mm / 2.953 inches |
Mechanical data
| Design | angled |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.688 MJ |
| Weight | 43.2 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 20 pcs |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4044918651325 |
| Customs tariff number | 85365080000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-26 |
| eCl@ss 9.0 | 27-14-11-26 |
| ETIM 9.0 | EC000902 |
| ETIM 10.0 | EC000902 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | b6a1a0c4-d967-4b73-8264-26b7a2f1d673 |
| SCIP notification number (Belgium) | 5ebb27a6-ee6f-4403-a9a0-751475daa89c |
| SCIP notification number (Bulgaria) | 567463bd-b2ea-492d-a674-b0b9acbbcde1 |
| SCIP notification number (Czech Republic) | a619f96d-b58c-410e-8fd1-53850ca1a501 |
| SCIP notification number (Denmark) | f6a9b199-87c7-4912-ae06-d08a16701e27 |
| SCIP notification number (Finland) | 7022eb2d-b0ab-4b2a-abdc-41b2488711cd |
| SCIP notification number (France) | da6eaec0-36d7-411f-b90f-67535d957947 |
| SCIP notification number (Germany) | af398722-937d-4dd7-aeb1-810d9003d387 |
| SCIP notification number (Hungary) | 63a1d84f-4936-4ad9-aa06-97f889d1507e |
| SCIP notification number (Italy) | fee9f4f1-c537-4eb4-b1db-936fda0ac347 |
| SCIP notification number (Netherlands) | 366fe36f-fa9a-4127-9c70-153f70314e68 |
| SCIP notification number (Poland) | af1ca10e-1941-400f-9b8c-eb51550e5cb0 |
| SCIP notification number (Romania) | ae8d26f7-0f2c-47fc-a70b-6f87514b1c6d |
| SCIP notification number (Sweden) | fd945375-eb0b-421e-a1cd-1779018cef66 |
