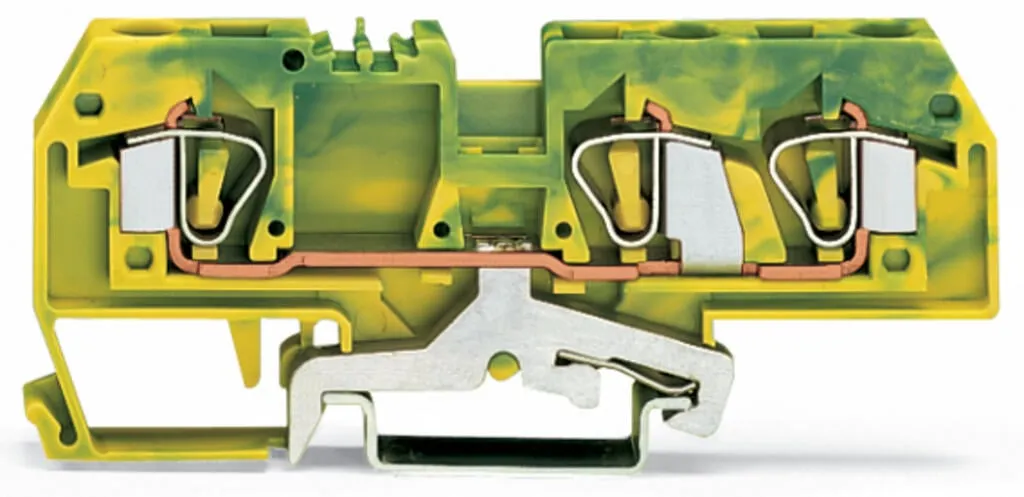

Wago 282-687/999-950
Ground terminal block, 282 Series, green-yellowOur ground terminal block (item number 282-687/999-950) makes connecting wires quick and easy. Conductors should only be connected to this ground termina…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 282 Series, green-yellowOur ground terminal block (item number 282-687/999-950) makes connecting wires quick and easy. Conductors should only be connected to this ground terminal block if their strip length is between 12 and 13 mm . Our ground terminal blocks create a direct connection between the mounting rail and the electrical conductors thanks to an integrated mounting foot. This connection ensures both electrical and mechanical stability between the conductors and the mounting adapter. Featuring conductor terminals along with CAGE CLAMP®, this connector outperforms the competition. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this ground terminal block is ideal for conductor cross sections ranging from 0.2 mm² to 6 mm².An operating tool is used to operate this through rail-mount terminal block.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - Ex information
| Reference to hazardous areas | See application instructions in section “Knowledge and Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Wiring direction | Front-entry wiring |

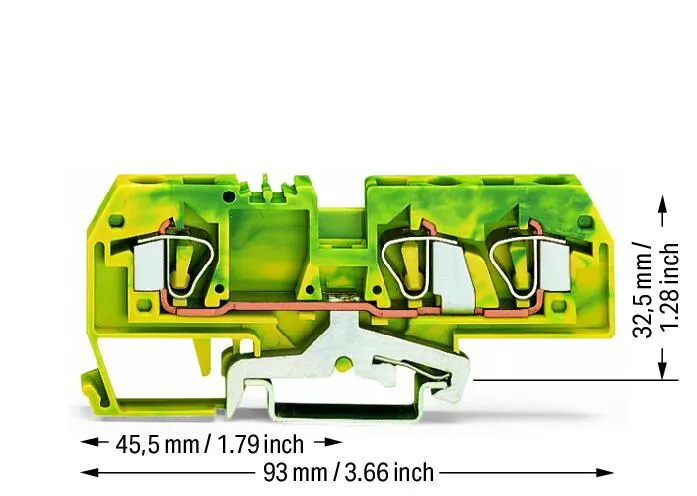

Physical data
| Width | 8 mm / 0.315 inches |
|---|---|
| Height | 93 mm / 3.661 inches |
| Depth from upper-edge of DIN-rail | 32.5 mm / 1.28 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.312 MJ |
| Weight | 27.6 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918471909 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | ecb4efea-9bbf-4f57-8557-48c92d18b3dd |
| SCIP notification number (Belgium) | 64f34614-1b16-4196-999d-57d7651225c4 |
| SCIP notification number (Bulgaria) | 9fe6bfc5-088e-4df2-92a1-594f389f2484 |
| SCIP notification number (Czech Republic) | 481a8969-5ffb-4e69-a208-0d3ada5d6653 |
| SCIP notification number (Denmark) | 30e49804-074d-420f-9ada-5a9cc67816b1 |
| SCIP notification number (Finland) | 4571b764-1d45-407f-b86b-bfe5cdb4a80c |
| SCIP notification number (France) | eeb93c9c-4842-4f9e-a3d7-a16623ae2750 |
| SCIP notification number (Germany) | f060290a-5808-4c5a-afc1-7021d07652dc |
| SCIP notification number (Hungary) | 5dcc4487-b83f-4d51-b741-baeed77bc204 |
| SCIP notification number (Italy) | 370f8872-72f3-4c5b-a0be-3682db2973aa |
| SCIP notification number (Netherlands) | 42af6ea3-1d8a-46a8-8427-c6afbb5c2654 |
| SCIP notification number (Poland) | f6dd659d-0d54-4344-8d57-3db07a84ae8e |
| SCIP notification number (Romania) | 1645e839-29bf-474a-89f2-acc4bf669e39 |
| SCIP notification number (Sweden) | 35e0ba79-1bbf-40b4-b6c2-899c10ad8d70 |
