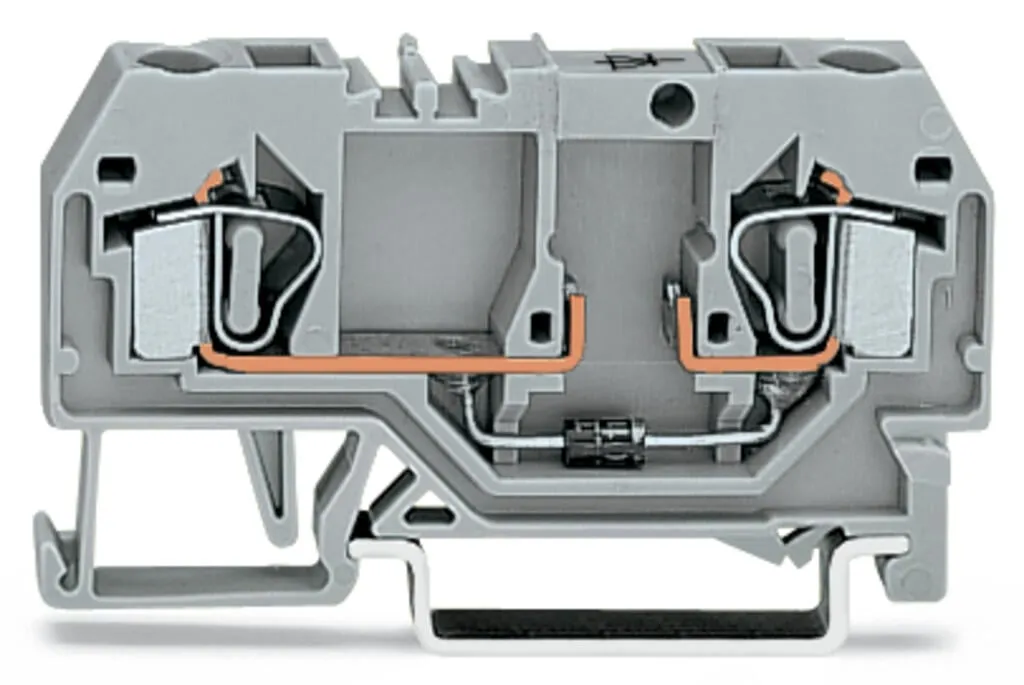

Wago 281-915/281-401
Component terminal block with diode, 281 Series, operating toolQuick and easy connections are guaranteed with this component terminal block with diode (item number 281-915/281-401). Ensure that the st…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component terminal block with diode, 281 Series, operating toolQuick and easy connections are guaranteed with this component terminal block with diode (item number 281-915/281-401). Ensure that the strip lengths are between 9 and 10 mm when connecting conductors to this component terminal block with diode. This product features conductor terminals and utilizes CAGE CLAMP®. Our tried-and-tested universal connection known as CAGE CLAMP® is the industry standard when it comes to connection technology and electrical interconnections. Depending on the conductor type, this component terminal block with diode is designed for conductor cross sections ranging from 0.08 mm² to 4 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 1.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N5408 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper, Aluminum |
| Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:2.5 mm² = 16 A4 mm² = 22 A |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 59.2 mm / 2.331 inches |
| Depth from upper-edge of DIN-rail | 29 mm / 1.142 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.143 MJ |
| Weight | 8.8 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454197773 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | 99c1a4e8-069f-47e7-a4ac-f5d5cb0cc4c0 |
| SCIP notification number (Belgium) | bc0c32ef-1e8e-44bf-a227-badd30dda2d0 |
| SCIP notification number (Bulgaria) | cacc476c-15eb-45c7-8b81-c4fae1c04928 |
| SCIP notification number (Czech Republic) | 1c6d3239-76a0-4ee7-8e18-9724e67064de |
| SCIP notification number (Denmark) | 8a109fa9-e985-4a09-bc40-9aed98416562 |
| SCIP notification number (Finland) | 4a042368-25d9-4de2-bfd8-e2510ef6b75d |
| SCIP notification number (France) | dc0a58c9-2f5d-48e6-a429-38a937a3305b |
| SCIP notification number (Germany) | ecc2746a-ee40-402d-823d-31864ccc354c |
| SCIP notification number (Hungary) | f566b054-348e-4def-8582-1ce5698bd35f |
| SCIP notification number (Italy) | a76a0495-5917-48f8-bb7e-a7419b559660 |
| SCIP notification number (Netherlands) | 6c573857-3526-4913-afe4-b0315bdb466c |
| SCIP notification number (Poland) | 72af28f4-ab73-43da-9737-432df1d5ddaf |
| SCIP notification number (Romania) | 7fa5b6b4-2304-40fb-b296-da5260e70d7e |
| SCIP notification number (Sweden) | 5024b483-0492-47cb-be80-5bbbb2493dc7 |
