Wago 281-665/281-882

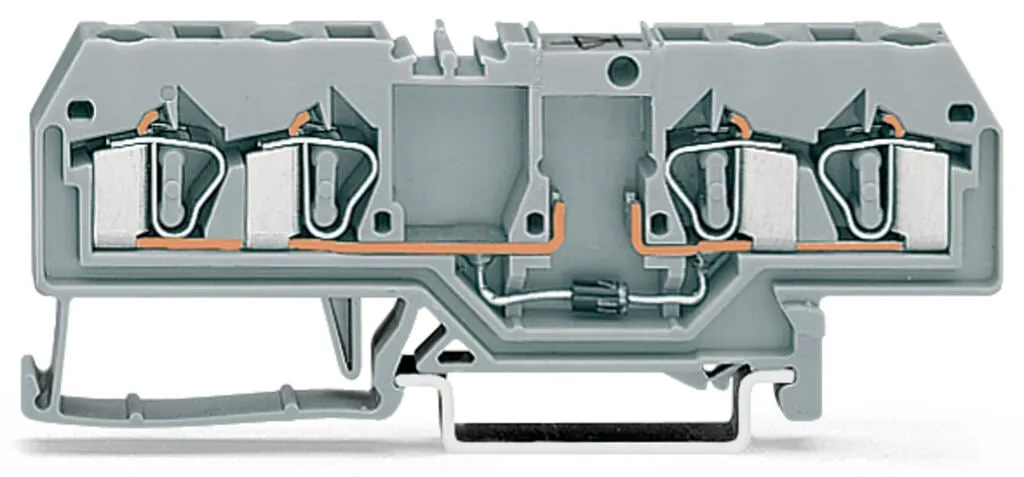

Component terminal block; 4-conductor; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; gray 281-665/281-882
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component terminal block; 4-conductor; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; gray 281-665/281-882
Specification
Notes
| Safety Information | - Installation must be performed by qualified personnel only.- The DIN-rail must be grounded.- The input current must be protected by a suitable fuse.- Protection against contact with stored charges must be ensured.- Do not insert or remove pluggable modules when energized.- The IP20 protection rating must be maintained in the assembled state or when using an end/intermediate plate compatible with the rail-mount terminal block. |
|---|
Electrical data
| Operating voltage | 250 VAC |
|---|---|
| Power (max.) | 0.6 W |
| Thermal resistance | 140 |
| Tolerance | ±1 % |
| Resistor type/design | DIN 0207 |
Safety and protection
| Rated impulse withstand voltage | 4 kV |
|---|---|
| Pollution degree | 3 |
| Safety Information | - Installation must be performed by qualified personnel only.- The DIN-rail must be grounded.- The input current must be protected by a suitable fuse.- Protection against contact with stored charges must be ensured.- Do not insert or remove pluggable modules when energized.- The IP20 protection rating must be maintained in the assembled state or when using an end/intermediate plate compatible with the rail-mount terminal block. |
| Protection type | IP20 |
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper, Aluminum |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 86 mm / 3.386 inches |
| Depth from upper-edge of DIN-rail | 29 mm / 1.142 inches |
Material data
| Color | gray |
|---|---|
| Insulation material (main housing) | Polyamide (PA66) |
| Material group | I |
| Flammability class per UL94 | V0 |
| Fire load | 0.204 MJ |
| Weight | 12.7 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|
Standards and specifications
| Standards/specifications | EN 60947-7-1, EN 60664-1, EN 60567 |
|---|
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821052906 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
