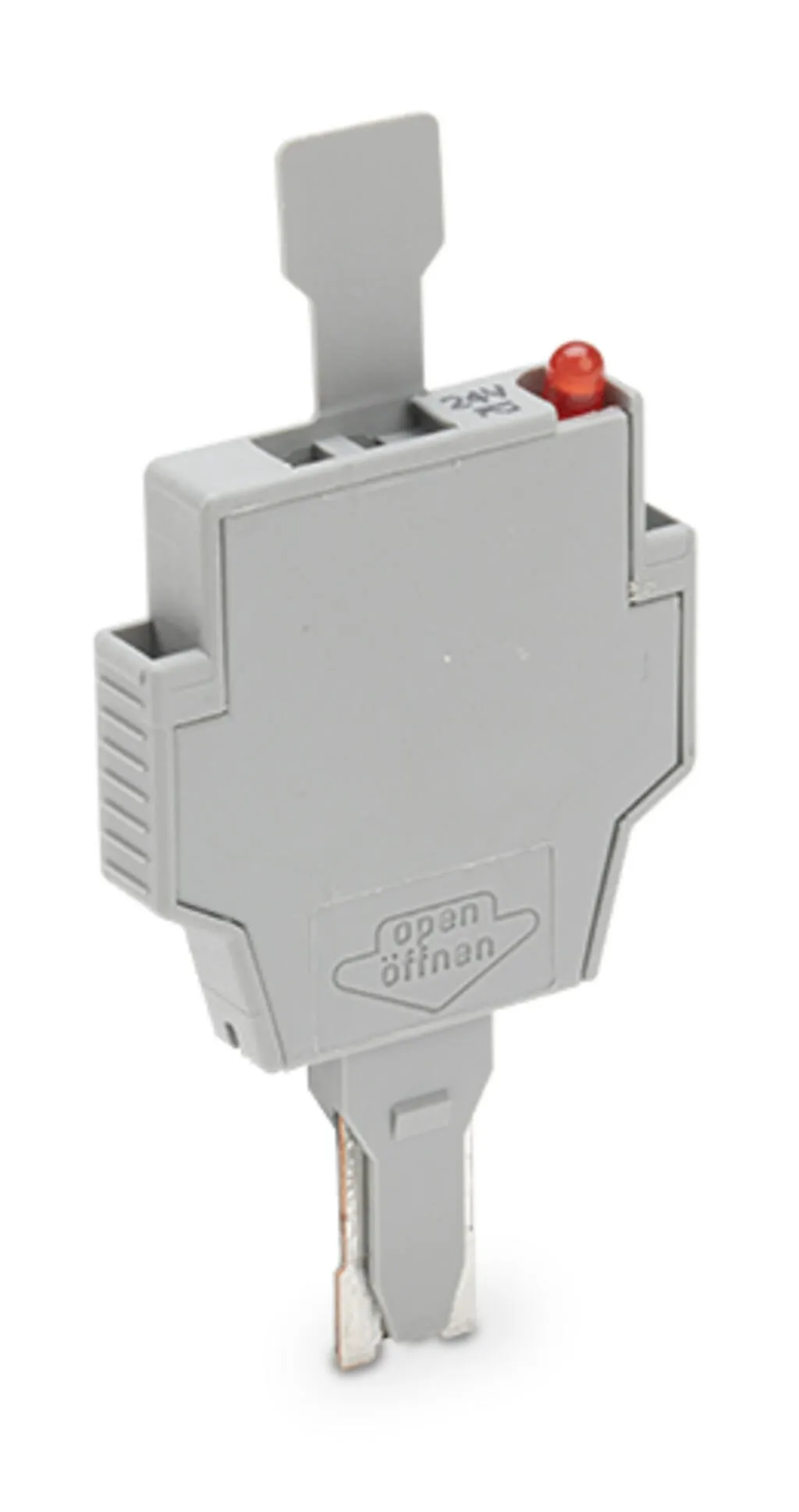

Wago 281-512/281-501
Fuse plug, 281 Series, grayEnjoy error-free electrical installations with this fuse plug (item number 281-512/281-501).
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fuse plug, 281 Series, grayEnjoy error-free electrical installations with this fuse plug (item number 281-512/281-501).
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 250 V |
|---|---|
| Rated current | 6.3 A |
| Operation status indicator | None |
Electrical data - Ratings per IEC/EN – Notes
| Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
|---|---|
| Rated current (note) | Leakage current in case of a blown fuse: LED 5 … 20 mA |
Electrical data - Power Loss
| Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
|---|
Electrical data - General information
| Voltage type 1 | AC/DC |
|---|---|
| Fuse type | Cylindrical fuse; 5 x 20 mm and 5 x 25 mm |
Physical data
| Width | 6 mm / 0.236 inches |
|---|
Mechanical data
| Marking level | Center marking |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.081 MJ |
| Weight | 6.7 g |
Environmental requirements
| Continuous operating temperature | -60 … +105 °C |
|---|
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4050821276265 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121624 |
|---|---|
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a), 7(c)-I |
| SCIP notification number (Austria) | aa35b2cb-cb0d-4299-8408-65ff0f74f2cb |
| SCIP notification number (Belgium) | ff0f92ca-1e64-459d-befe-9c56a5cc4515 |
| SCIP notification number (Bulgaria) | e6bf6cf9-0735-4a78-82d4-bb85769a1e63 |
| SCIP notification number (Czech Republic) | 8f5ff1c6-aa41-48aa-b888-5bc3c705056d |
| SCIP notification number (Denmark) | d60407f9-28d0-4a48-825f-0cdc2308a0f4 |
| SCIP notification number (Finland) | 9a3e6f3c-9dfc-4df2-8e75-574656e85c0b |
| SCIP notification number (France) | aada7dcf-c462-41a5-95b1-3e4d3e809790 |
| SCIP notification number (Germany) | 8234951a-c249-4fed-955e-18494e11ab9a |
| SCIP notification number (Hungary) | f44ddd59-cece-4f79-9bfd-fc877cbaf82b |
| SCIP notification number (Italy) | 57f8ae2e-ad98-431b-a5cc-9ed6fb923b64 |
| SCIP notification number (Netherlands) | 40ab186b-b669-4128-a2c1-5af4bcfbcc88 |
| SCIP notification number (Poland) | cc1aae9d-c676-4fa4-8bfc-9295a56a1312 |
| SCIP notification number (Romania) | 5f340b62-9dba-4661-93e3-46e454c1b3e0 |
| SCIP notification number (Sweden) | 5a187112-c5a2-46b0-8316-3d72564d28e3 |
