Wago 281-407

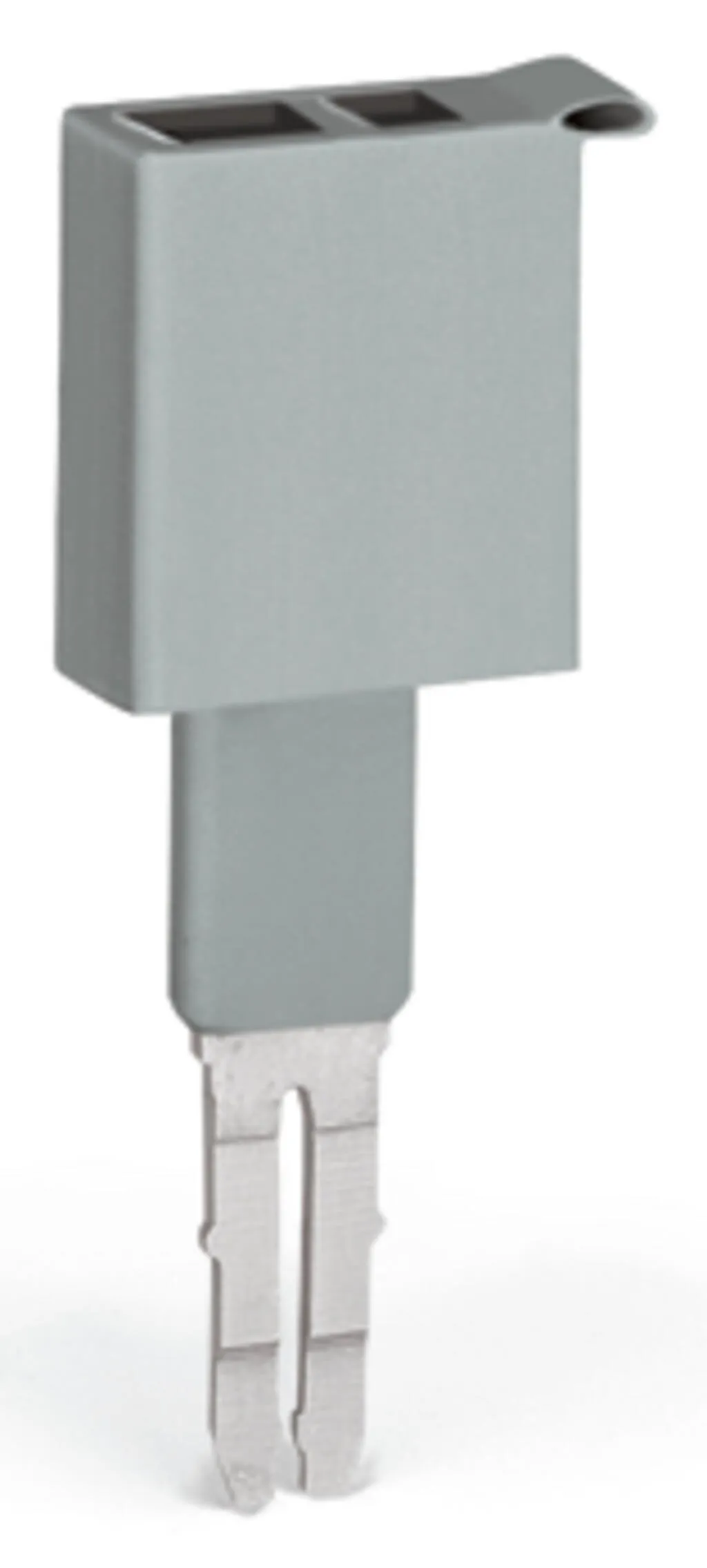

Test plug; 6 mm wide; Nominal current 24 A; for 0.08 mm² – 2.5 mm²; gray 281-407
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Test plug; 6 mm wide; Nominal current 24 A; for 0.08 mm² – 2.5 mm²; gray 281-407
Specification
Electrical data - Ratings per IEC/EN
| Rated current | 24 A |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 1 |
|---|---|
| Total number of potentials | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 6 mm / 0.236 inches |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.032 MJ |
| Weight | 2.2 g |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918255622 |
| Customs tariff number | 85366990990 |
| End of Sale | 2024-05-27 |
| End of Production | 2024-06-24 |
| End of Delivery | 2024-07-29 |
| End of Service and Repair | 2026-07-29 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-14-11-48 |
| eCl@ss 9.0 | 27-14-11-48 |
| ETIM 9.0 | EC002555 |
| ETIM 10.0 | EC002555 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
