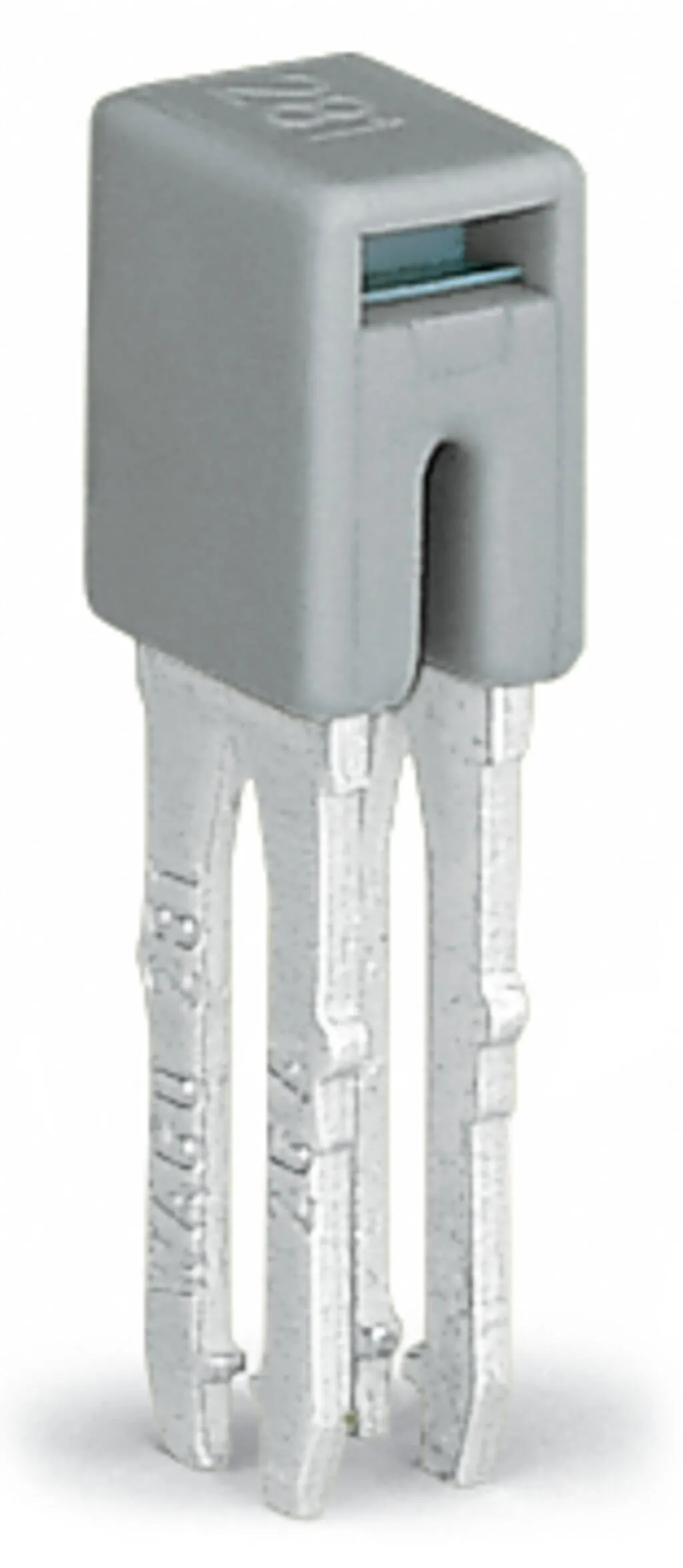

Wago 281-402
Jumper; insulated; gray 281-402
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Jumper; insulated; gray 281-402
Specification
Electrical data - Ratings per IEC/EN
| Rated current | 32 A |
|---|
Electrical data - Ex information
| Rated current (Ex e II) | 26 A |
|---|
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 8 mm / 0.315 inches |
| Depth | 23.7 mm / 0.933 inches |
| Jumper assignment | 1-2 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.009 MJ |
| Weight | 1.7 g |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 25 (25) pcs |
| Packaging type | Bag |
| Country of origin | DE |
| GTIN | 4066966531145 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 |
| ETIM 10.0 | EC000489 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
