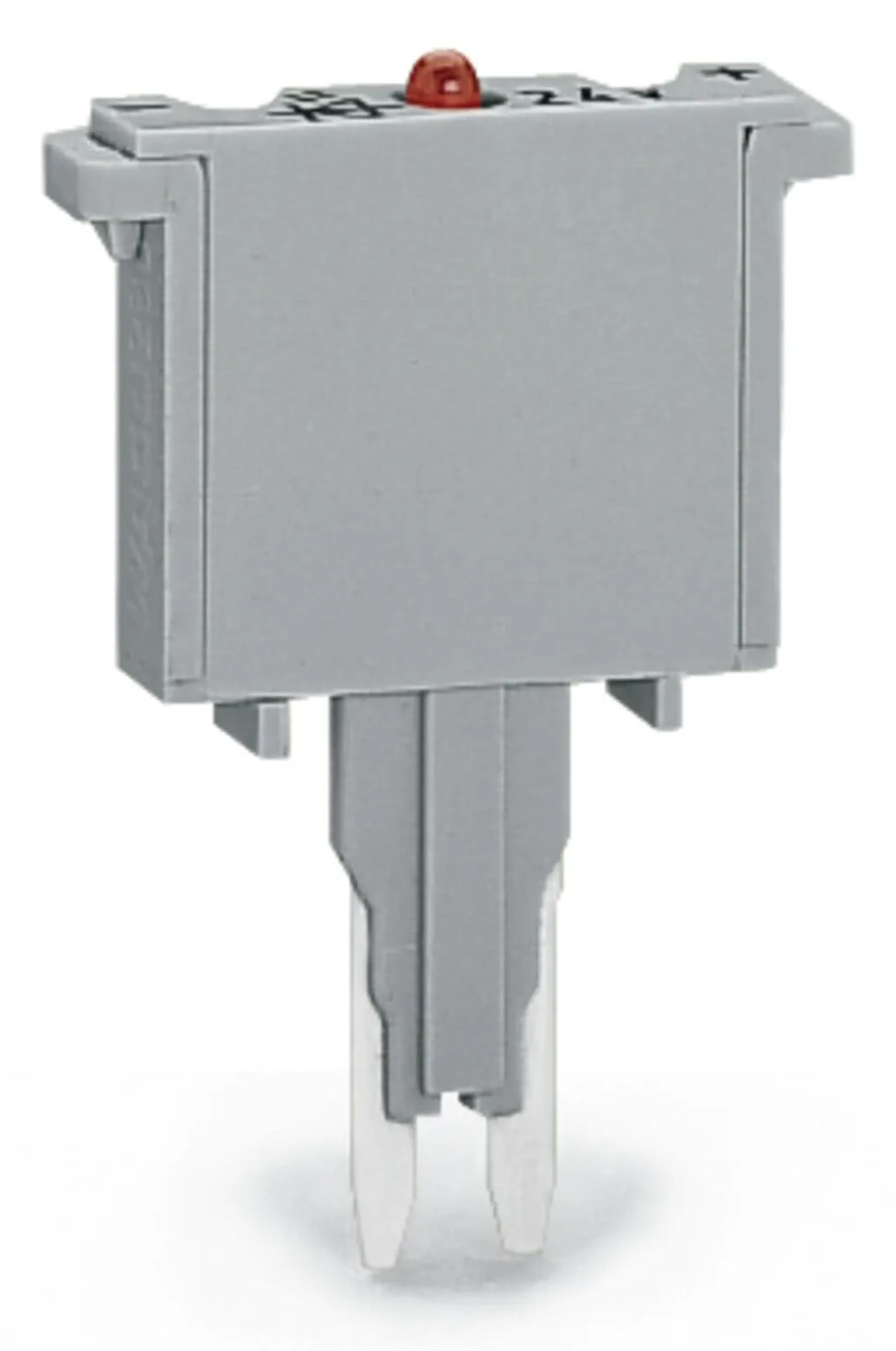

Wago 280-856/281-415
Fuse plug, 280 Series, grayOur fuse plug (item number 280-856/281-415) ensures effortless electrical installations.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fuse plug, 280 Series, grayOur fuse plug (item number 280-856/281-415) ensures effortless electrical installations.
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 125 V |
|---|---|
| Rated current | 5 A |
| Operation status indicator | 15 … 30 V |
Electrical data - Ratings per IEC/EN – Notes
| Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
|---|---|
| Rated current (note) | Leakage current in case of a blown fuse: LED 5 … 20 mA |
Electrical data - General information
| Voltage type 1 | AC |
|---|---|
| Fuse type | Miniature fuse; 2 A FF |
Physical data
| Width | 5 mm / 0.197 inches |
|---|
Mechanical data
| Marking level | without marking level |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.068 MJ |
| Weight | 2.9 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821864998 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121626 |
|---|---|
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | b914ce8d-056d-46f1-8e98-5ac1cb2c773d |
| SCIP notification number (Belgium) | dc5ed824-aaa9-41d0-9733-2d9280043578 |
| SCIP notification number (Bulgaria) | 91292fc2-cc4a-4867-b38f-af09e3871c35 |
| SCIP notification number (Czech Republic) | b0d77751-b7bd-420c-8f06-8d46084f6ee3 |
| SCIP notification number (Denmark) | d0b7d5d4-0359-42b1-9716-0cd5a54f4042 |
| SCIP notification number (Finland) | af45968c-7d44-4663-bd40-762909b0f22e |
| SCIP notification number (France) | c3e409b3-2377-4a93-b3f4-a31d7b5100ee |
| SCIP notification number (Germany) | 8498bc58-25cd-46cd-88f5-cb2742a98dda |
| SCIP notification number (Hungary) | 4c94d887-5272-4b9f-9f19-93e5447139b7 |
| SCIP notification number (Italy) | e6b306f2-e7d4-4267-ad10-099a8811ebd6 |
| SCIP notification number (Netherlands) | 8d7e469b-ef94-4f69-97c0-3d3c266fe433 |
| SCIP notification number (Poland) | 0519f90e-927b-4725-8521-a4b12ccf122b |
| SCIP notification number (Romania) | bd0b5a81-f73c-4b03-a4fe-0cd6f815955a |
| SCIP notification number (Sweden) | 6dfa003e-23fc-430c-9b8a-09712795e44b |
