Wago 280-854/281-414

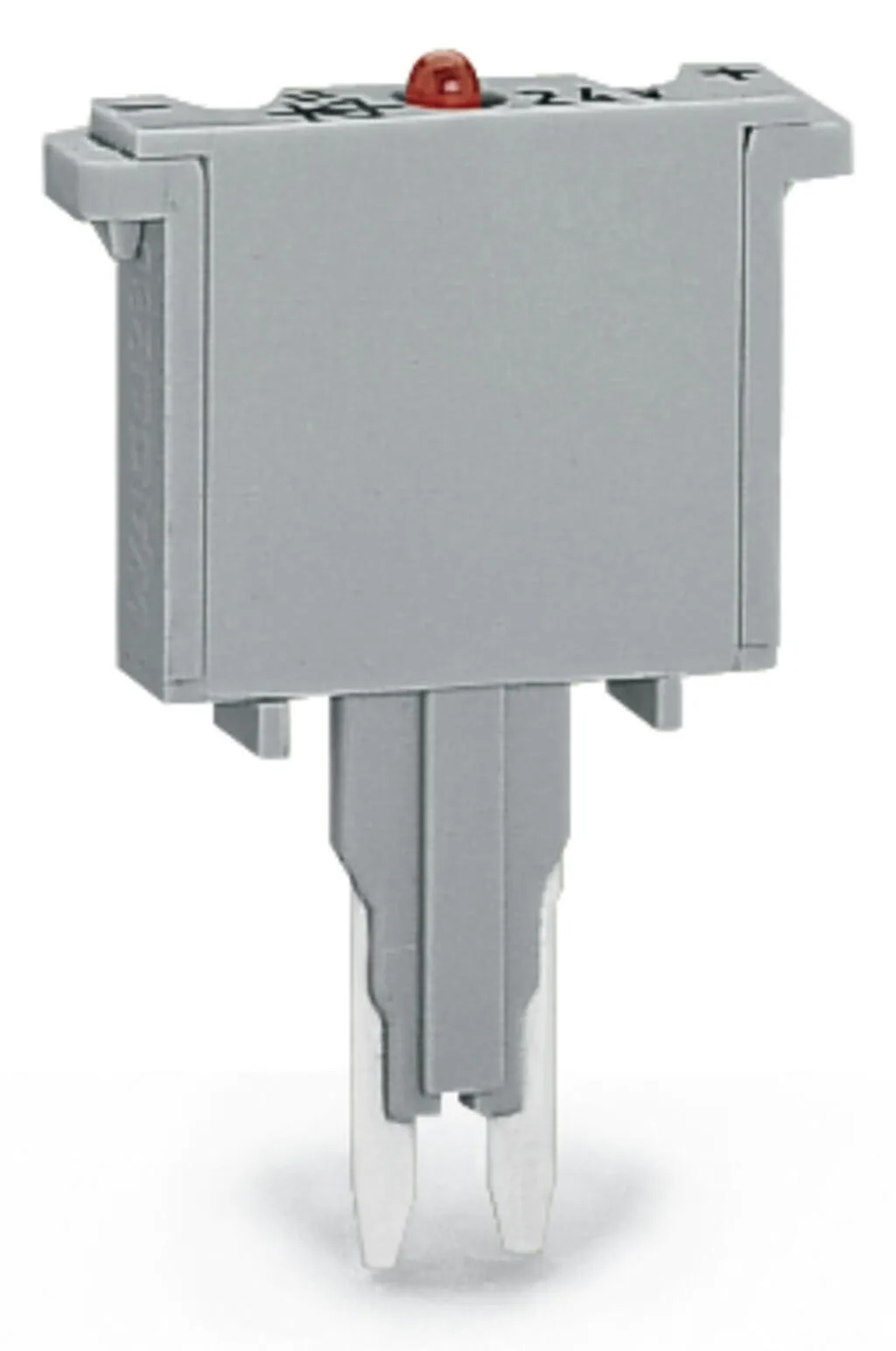

Fuse plug, 280 Series, grayThis fuse plug (item number 280-854/281-414) simplifies electrical installations.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fuse plug, 280 Series, grayThis fuse plug (item number 280-854/281-414) simplifies electrical installations.
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 125 V |
|---|---|
| Rated current | 5 A |
| Operation status indicator | 30 … 65 V |
Electrical data - Ratings per IEC/EN – Notes
| Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
|---|---|
| Rated current (note) | Leakage current in case of a blown fuse: LED 5 … 20 mA |
Electrical data - General information
| Voltage type 1 | DC |
|---|---|
| Fuse type | Miniature fuse; 1 A FF |
Physical data
| Width | 5 mm / 0.197 inches |
|---|
Mechanical data
| Marking level | without marking level |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.067 MJ |
| Weight | 2.7 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454362751 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121626 |
|---|---|
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 7(a) |
