Wago 280-801/281-421
Component module with diode, 280 Series, graySeamless electrical installations are guaranteed with this component module with diode (item number 280-801/281-421). The component module with diode also…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

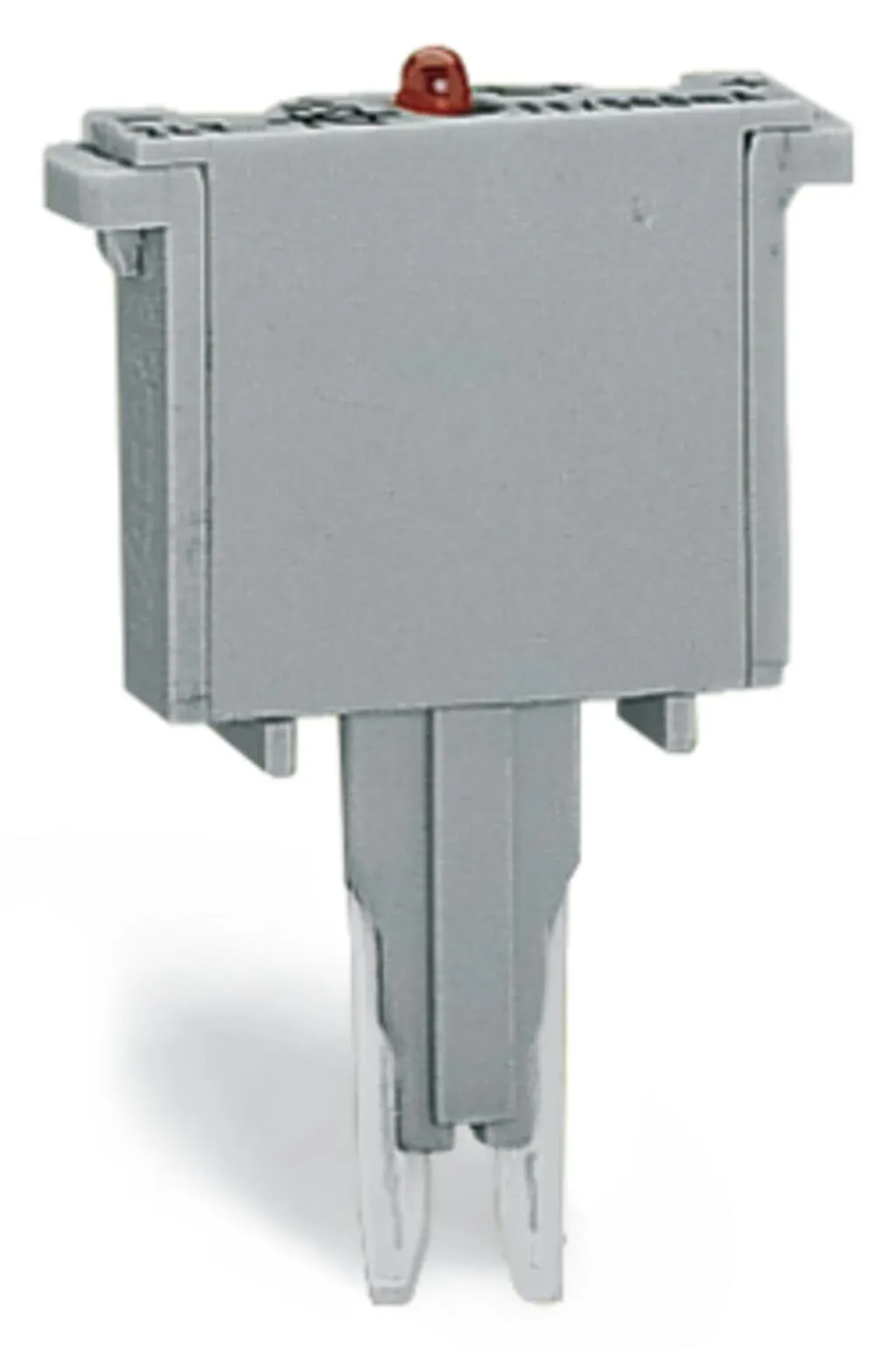

Component module with diode, 280 Series, graySeamless electrical installations are guaranteed with this component module with diode (item number 280-801/281-421). The component module with diode also functions as a component module with LED.
Specification
Electrical data
| Voltage type 1 | DC |
|---|
Electrical data - Ratings per IEC/EN
| Rated current | 0.5 A |
|---|---|
| Operation status indicator | 48 VDC |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N4007 recovery diode |
Physical data
| Width | 5 mm / 0.197 inches |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.082 MJ |
| Weight | 2.7 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821385851 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 5a38249b-9e38-4322-8d6f-e021e45b685c |
| SCIP notification number (Belgium) | 142a016b-cf6f-4ef6-85b3-c4f69121e4f8 |
| SCIP notification number (Bulgaria) | 7003839d-31f1-420f-a1cf-5bddd9ba3ced |
| SCIP notification number (Czech Republic) | e7634e83-0788-46b5-9ec4-f8c26721b8fc |
| SCIP notification number (Denmark) | cf02d7ad-f11e-4067-99c7-98bc23ea270d |
| SCIP notification number (Finland) | 53a08aa7-dd13-4920-a645-5779e7836d3a |
| SCIP notification number (France) | c82d13ab-eeb1-465a-88f4-1734dea32f4d |
| SCIP notification number (Germany) | d9518015-6ffa-48ab-968f-99afdd4aa484 |
| SCIP notification number (Hungary) | 4b07e662-94f6-4c56-81ab-b2cc08567664 |
| SCIP notification number (Italy) | bbb0b3af-28d2-4705-b447-55a5202fb117 |
| SCIP notification number (Netherlands) | a1016dd3-00f4-472b-9493-da7f71441e54 |
| SCIP notification number (Poland) | b22900a5-7038-4850-b293-e5e65b2f1558 |
| SCIP notification number (Romania) | 7eeb1d2f-c304-4026-a319-e8a368232106 |
| SCIP notification number (Sweden) | 21cac156-bbda-4711-a9f5-c948ebb8033e |
