Wago 280-801/281-415

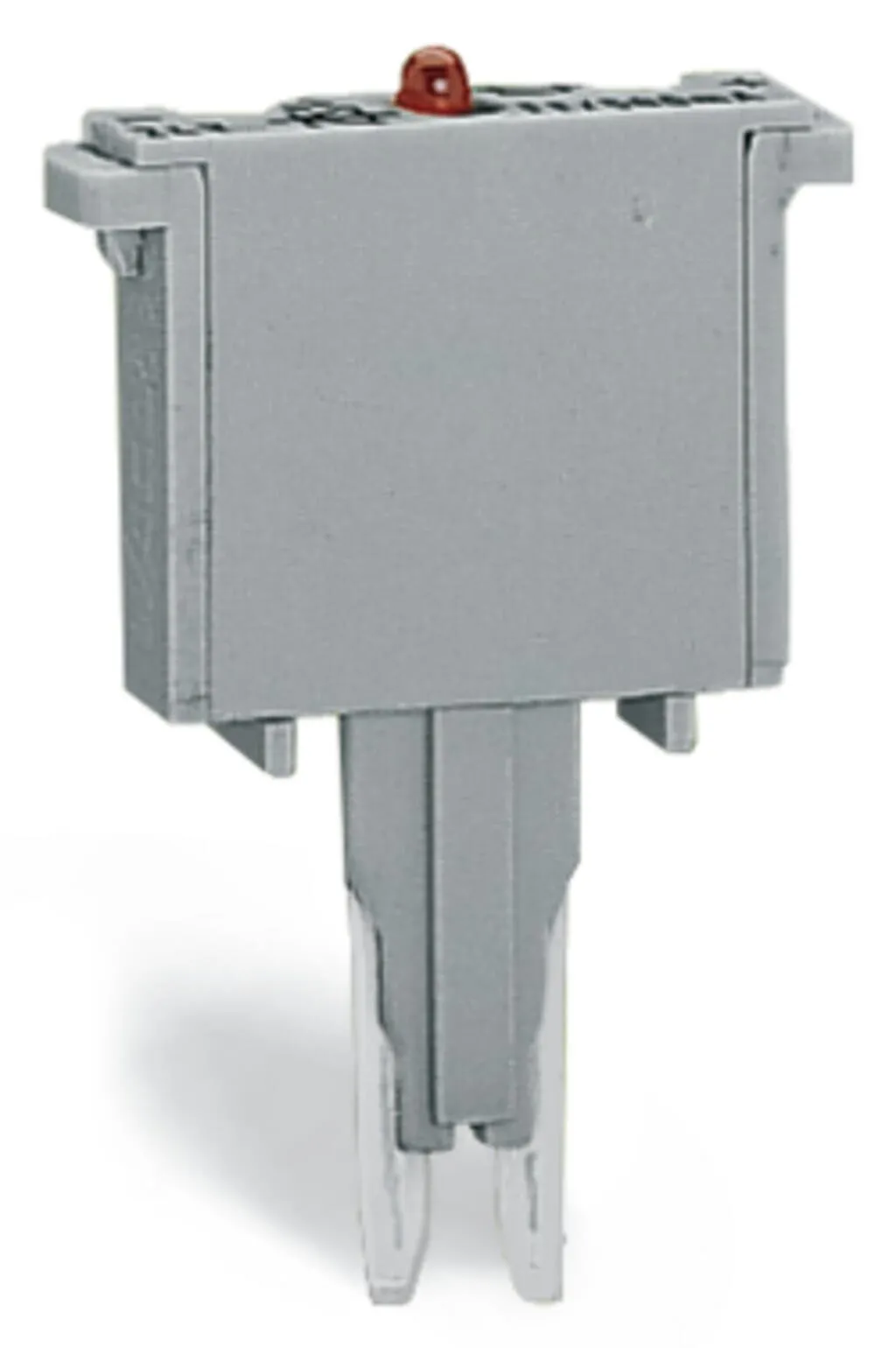

Component terminal block with led, 280 Series, grayOur component terminal block with led (item number 280-801/281-415) is designed for seamless electrical installations.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component terminal block with led, 280 Series, grayOur component terminal block with led (item number 280-801/281-415) is designed for seamless electrical installations.
Specification
Electrical data
| Voltage type 1 | AC/DC |
|---|
Electrical data - Ratings per IEC/EN
| Operation status indicator | 24 VAC/DC |
|---|
Electrical data - General information
| Number/type of diode/LED | Red LED |
|---|
Physical data
| Width | 5 mm / 0.197 inches |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.068 MJ |
| Weight | 2.9 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821864912 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 752c1c26-f5f6-479f-99e8-889d0f31f431 |
| SCIP notification number (Belgium) | 61790936-a0ea-491e-851d-5ddaa3e5c59f |
| SCIP notification number (Bulgaria) | f23572cf-641d-4688-b6f9-94fe5fd843ae |
| SCIP notification number (Czech Republic) | 81ff953c-66d4-4d64-8930-203a892ef0b5 |
| SCIP notification number (Denmark) | ae01e978-7cf7-45a0-b66f-940f7d48a413 |
| SCIP notification number (Finland) | 0ece117a-6755-49e2-9c76-c799493546e9 |
| SCIP notification number (France) | f0ab410e-7384-4a56-9fb4-81ad15ce4741 |
| SCIP notification number (Germany) | 718412c6-9a5f-4b92-ad26-75b6e07dbc37 |
| SCIP notification number (Hungary) | a3593b34-0562-4a2f-b4ab-e6b06955fd78 |
| SCIP notification number (Italy) | ecd81344-4a4f-4961-9c76-9f29fa67f516 |
| SCIP notification number (Netherlands) | 2eb02de1-8582-4932-b8ee-630b88fa9ea3 |
| SCIP notification number (Poland) | b0731de3-7be4-41d2-872d-b4271e040d39 |
| SCIP notification number (Romania) | 4df6eeb1-1b34-4324-b73d-3d05dac5d574 |
| SCIP notification number (Sweden) | a2e2dcfe-1a65-4cec-b3a8-d4af3cea488f |
