Wago 279-915/281-411
Component terminal block with diode, 279 Series, CAGE CLAMP®This component terminal block with diode (item number 279-915/281-411) is designed for simple and secure connections. Conductors can only be…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

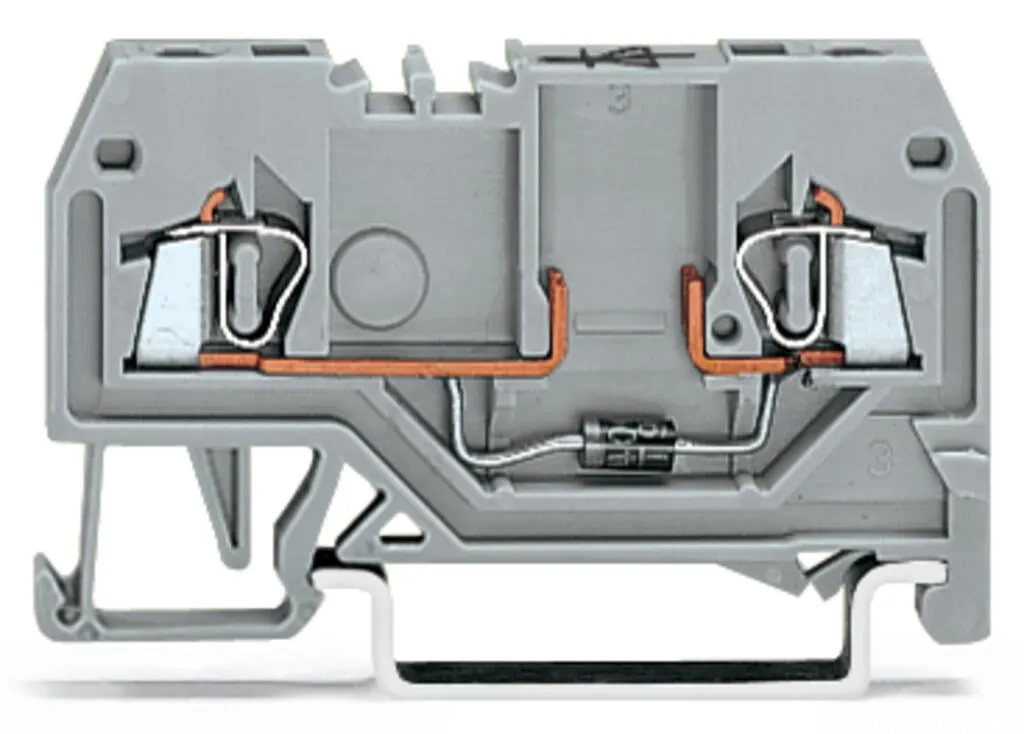

Component terminal block with diode, 279 Series, CAGE CLAMP®This component terminal block with diode (item number 279-915/281-411) is designed for simple and secure connections. Conductors can only be connected to this component terminal block with diode if their strip length is between 8 and 9 mm . This product features conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. The item’s dimensions are (4 x 52 x 31.5) mm (width x height x depth). Depending on the type of conductor, this component terminal block with diode is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 0.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N4007 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Wiring direction | Front-entry wiring |

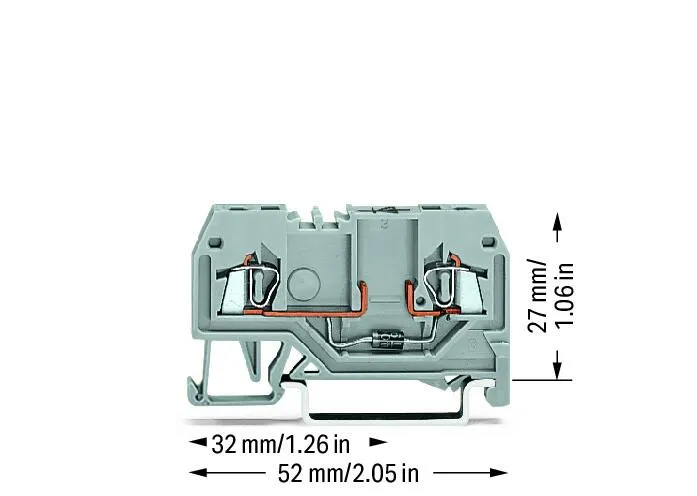

Physical data
| Width | 4 mm / 0.157 inches |
|---|---|
| Height | 52 mm / 2.047 inches |
| Depth from upper-edge of DIN-rail | 27 mm / 1.063 inches |
| Depth | 31.5 mm / 1.24 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.099 MJ |
| Weight | 4.6 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918525466 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 56279a61-3d6a-4274-a2e7-17c165ad4c31 |
| SCIP notification number (Belgium) | 1be89762-3a00-4343-bd7b-3e1e9d9a9d11 |
| SCIP notification number (Bulgaria) | 0504aec5-01c9-4be2-bafe-6b24bbfa6794 |
| SCIP notification number (Czech Republic) | 5d02ba5d-4133-4c39-ae13-6a7f1dba605e |
| SCIP notification number (Denmark) | 494e94f8-4dd5-4675-b319-079192a3b6d9 |
| SCIP notification number (Finland) | 8d3d088e-1596-4bd6-9280-2144322faf35 |
| SCIP notification number (France) | 039562f8-d1df-496f-9573-f70603d470ae |
| SCIP notification number (Germany) | 93406e92-8416-478c-85f8-214f6646ad2c |
| SCIP notification number (Hungary) | c4d1c392-cf93-4a9d-aab8-7476ee36ad80 |
| SCIP notification number (Italy) | ac041af0-06cf-4fdf-990f-1c162be04386 |
| SCIP notification number (Netherlands) | 55f44714-1068-4bb3-8cd5-f76dbb6f1297 |
| SCIP notification number (Poland) | 786d431c-936b-48ec-a246-304c6f640954 |
| SCIP notification number (Romania) | 5a271a66-240c-4ff7-ad6b-e177a0c6b837 |
| SCIP notification number (Sweden) | 79e87172-a9de-4260-aced-3be0e85028df |
