Wago 279-687
Ground terminal block, 279 Series, CAGE CLAMP®Our ground terminal block (item number 279-687) makes connecting wires quick and easy. Strip lengths must be between 8 and 9 mm when connecting conductor…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

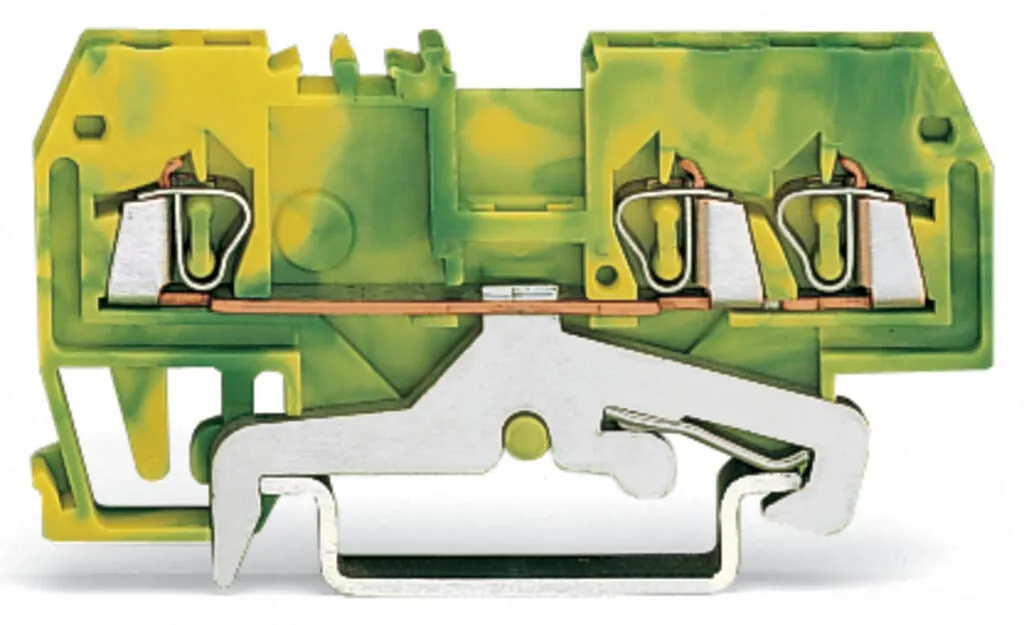

Ground terminal block, 279 Series, CAGE CLAMP®Our ground terminal block (item number 279-687) makes connecting wires quick and easy. Strip lengths must be between 8 and 9 mm when connecting conductors to this ground terminal block. WAGO’s ground terminal blocks allow you to connect electrical conductors directly to the mounting rail thanks to an integrated contact foot. This connection ensures both electrical and mechanical stability between the conductors and the mounting adapter. This product features conductor terminals and utilizes CAGE CLAMP®. Our renowned universal connection known as CAGE CLAMP® is the industry standard for connection technology and electrical interconnections. Dimensions: (4 x 62.5 x 31.5) mm (width x height x depth). This ground terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².This through rail-mount terminal block is operated with an operating tool.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Wiring direction | Front-entry wiring |

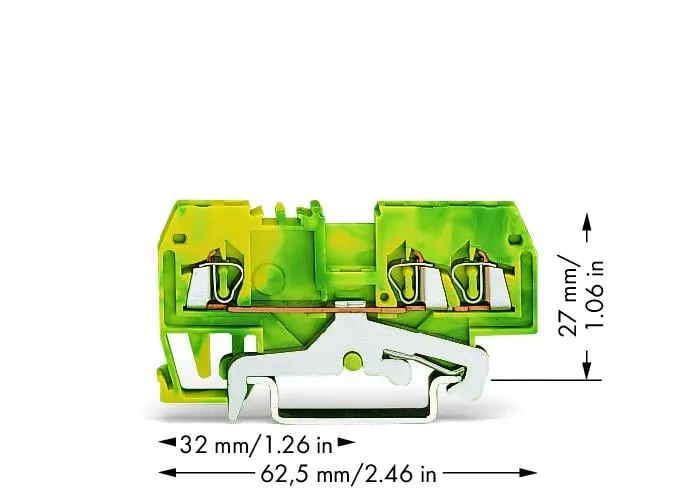

Physical data
| Width | 4 mm / 0.157 inches |
|---|---|
| Height | 62.5 mm / 2.461 inches |
| Depth from upper-edge of DIN-rail | 27 mm / 1.063 inches |
| Depth | 31.5 mm / 1.24 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.089 MJ |
| Weight | 8.9 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 100 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454084448 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 8d137da3-1f23-470c-b289-c95c8bb99796 |
| SCIP notification number (Belgium) | b58da6c9-7fdc-4f6f-a2d3-2aca8efea4e4 |
| SCIP notification number (Bulgaria) | 1a5032e8-160f-4c4d-a2f1-55eb973e10fc |
| SCIP notification number (Czech Republic) | f1e66be0-6592-4371-bbbf-3bba9dd749b6 |
| SCIP notification number (Denmark) | 46f29a65-d811-4fd7-aa38-90de78bf73af |
| SCIP notification number (Finland) | c1555754-40a3-42b1-b608-b6227b85d6a8 |
| SCIP notification number (France) | ac43189a-9c60-4c7e-993c-2da1c16fd7c4 |
| SCIP notification number (Germany) | d34b5776-056d-483f-8e42-c14c65eaa07d |
| SCIP notification number (Hungary) | e36e2841-a734-407a-9dde-0ed819abfb0b |
| SCIP notification number (Italy) | 329f5031-14bf-4769-aaf2-6f605300666f |
| SCIP notification number (Netherlands) | 357b657e-0acf-496b-aafc-f5fb0d01c157 |
| SCIP notification number (Poland) | 4b5afe33-f306-489a-9881-dafa7e676c02 |
| SCIP notification number (Romania) | 3e2e3ebd-6f4a-409d-aa0a-5e85702686c0 |
| SCIP notification number (Sweden) | 5a9974b9-8e46-44aa-958a-8998fa57c943 |
