Wago 279-673/281-410
Component terminal block with diode, 279 Series, operating toolEasily, quickly and safely connect conductors with this component terminal block with diode (item number 279-673/281-410). Conductors sho…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

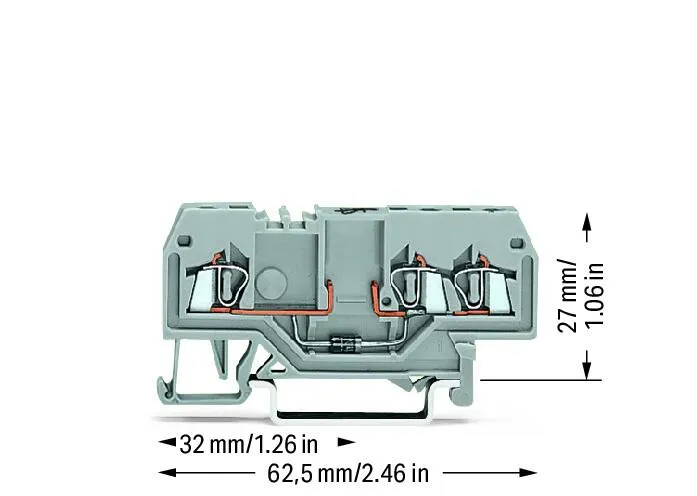

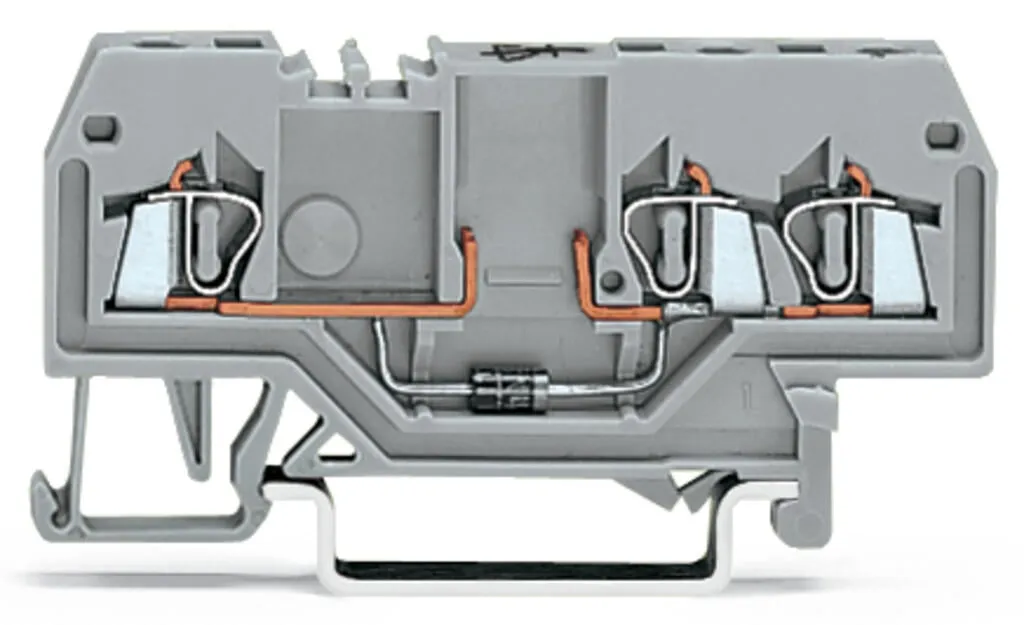

Component terminal block with diode, 279 Series, operating toolEasily, quickly and safely connect conductors with this component terminal block with diode (item number 279-673/281-410). Conductors should only be connected to this component terminal block with diode if their strip length is between 8 and 9 mm . This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. Dimensions: (4 x 62.5 x 31.5) mm (width x height x depth). This component terminal block with diode is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 0.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N4007 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 4 mm / 0.157 inches |
|---|---|
| Height | 62.5 mm / 2.461 inches |
| Depth from upper-edge of DIN-rail | 27 mm / 1.063 inches |
| Depth | 31.5 mm / 1.24 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.119 MJ |
| Weight | 5.7 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454193997 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | c169c407-010f-40d4-b8d9-0c33cee0672d |
| SCIP notification number (Belgium) | 86236cd3-fb00-452e-b268-90bb21ae866f |
| SCIP notification number (Bulgaria) | 81ede544-2c98-4db1-937d-7fd406e8c633 |
| SCIP notification number (Czech Republic) | 985365f2-9078-42e7-b260-abe120065fe4 |
| SCIP notification number (Denmark) | 509b33f4-0491-4f8f-8a5f-32d44b4dc8ae |
| SCIP notification number (Finland) | 6a74906a-5806-454c-bd88-130eb84c33fe |
| SCIP notification number (France) | eb5c0663-3205-457a-9f77-d772496eaa31 |
| SCIP notification number (Germany) | fdaf7a03-ef3c-4d7e-b20a-e889e09aac7e |
| SCIP notification number (Hungary) | 33a2ac0f-1bab-471b-8707-692fa6ce6e0a |
| SCIP notification number (Italy) | c28c04c1-7a42-4f7f-8af4-150642955fc9 |
| SCIP notification number (Netherlands) | 2653b342-288b-44b6-a408-9028a7160140 |
| SCIP notification number (Poland) | 006f2126-03f2-4644-9fe1-73d6ceb0cb2f |
| SCIP notification number (Romania) | 599d94d2-ab99-492e-845d-3a43e6c53798 |
| SCIP notification number (Sweden) | cde2fb2f-a9fa-436f-8ac2-ffb59deba777 |
