Wago 279-623/281-410
Component terminal block with diode, 279 Series, operating toolThis component terminal block with diode (item number 279-623/281-410) is designed for simple and secure connections. Conductors can only…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

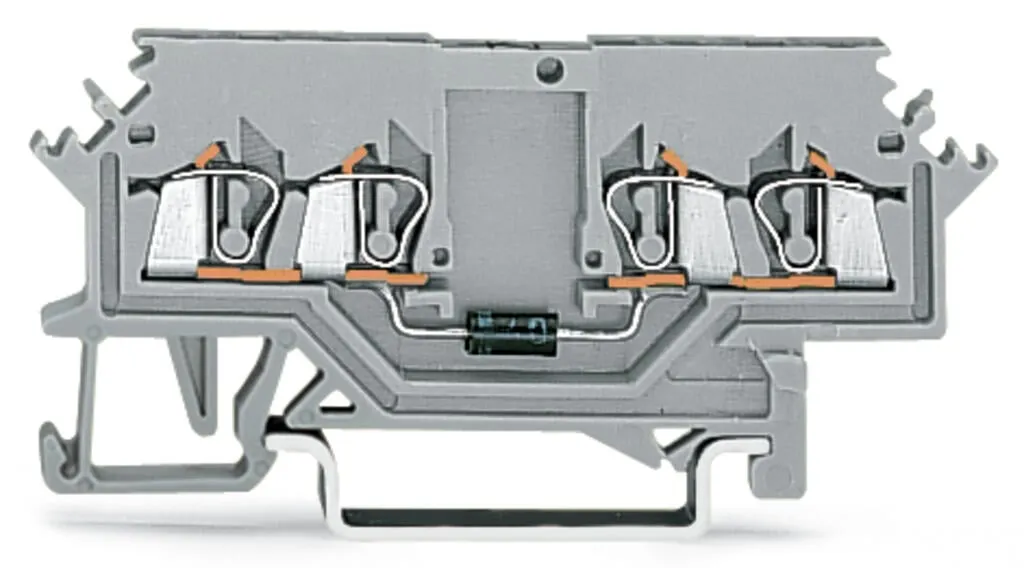

Component terminal block with diode, 279 Series, operating toolThis component terminal block with diode (item number 279-623/281-410) is designed for simple and secure connections. Conductors can only be connected to this component terminal block with diode if their strip length is between 8 and 9 mm . This product features conductor terminals and utilizes CAGE CLAMP®. Our renowned universal connection known as CAGE CLAMP® is industry-leading when it comes to connection technology and electrical interconnections. Dimensions: (4 x 68 x 31.5) mm (width x height x depth). Depending on the type of conductor, this component terminal block with diode is ideal for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 0.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N4007 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Wiring direction | Front-entry wiring |
Physical data

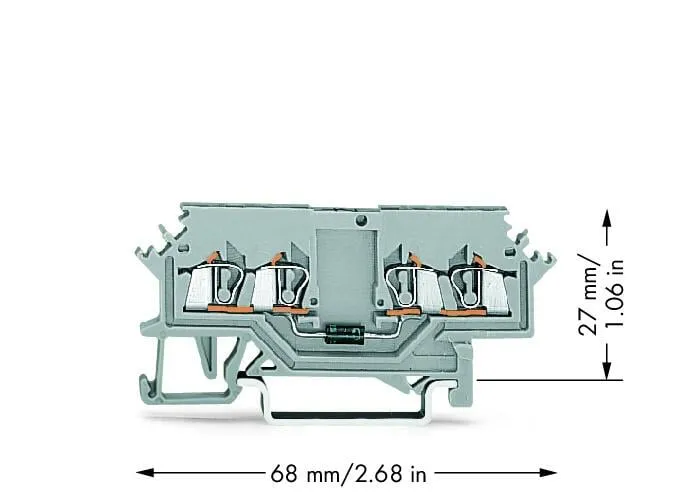

| Width | 4 mm / 0.157 inches |
|---|---|
| Height | 68 mm / 2.677 inches |
| Depth from upper-edge of DIN-rail | 27 mm / 1.063 inches |
| Depth | 31.5 mm / 1.24 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.116 MJ |
| Weight | 5.7 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4050821275374 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 1e40d627-35b4-4839-a82a-e0c3012f65df |
| SCIP notification number (Belgium) | 6b0d44cd-c150-4f9a-8f35-67d8fe1f236f |
| SCIP notification number (Bulgaria) | 3b7a78cd-9403-4cab-8e44-eef0459a8b62 |
| SCIP notification number (Czech Republic) | 30c8b9eb-61d5-460f-84fc-be67b41e1d71 |
| SCIP notification number (Denmark) | c5bda71a-75a0-4cc2-9bf6-878ad3d5d159 |
| SCIP notification number (Finland) | e6add8c2-5a4b-4c40-9cd6-5d0140c2f8c6 |
| SCIP notification number (France) | f599c95f-f470-4eb4-86f5-62580af2abce |
| SCIP notification number (Germany) | 7293d160-f8d8-4b92-92ca-bb3e7afacfb4 |
| SCIP notification number (Hungary) | 25a292d1-c78a-4700-b7ee-4e4ef9fb1049 |
| SCIP notification number (Italy) | c347c72c-f29c-4557-b850-425742b180ab |
| SCIP notification number (Netherlands) | 2ae4f931-9f2c-4e1a-80b5-21b5c4aae933 |
| SCIP notification number (Poland) | a0d9d3cd-251a-438c-aef9-8253302e0922 |
| SCIP notification number (Romania) | 5553c3a6-6175-4921-bb48-cabc2b3f49bc |
| SCIP notification number (Sweden) | 54577095-e518-454d-9cc5-5d7d1236f786 |
